Driving modes and rigging for on-road driving
6.6 Rigging the auxiliary hoist
Operating Instructions GMK5250L 3 302 633 en 6 - 59
27.09.2017

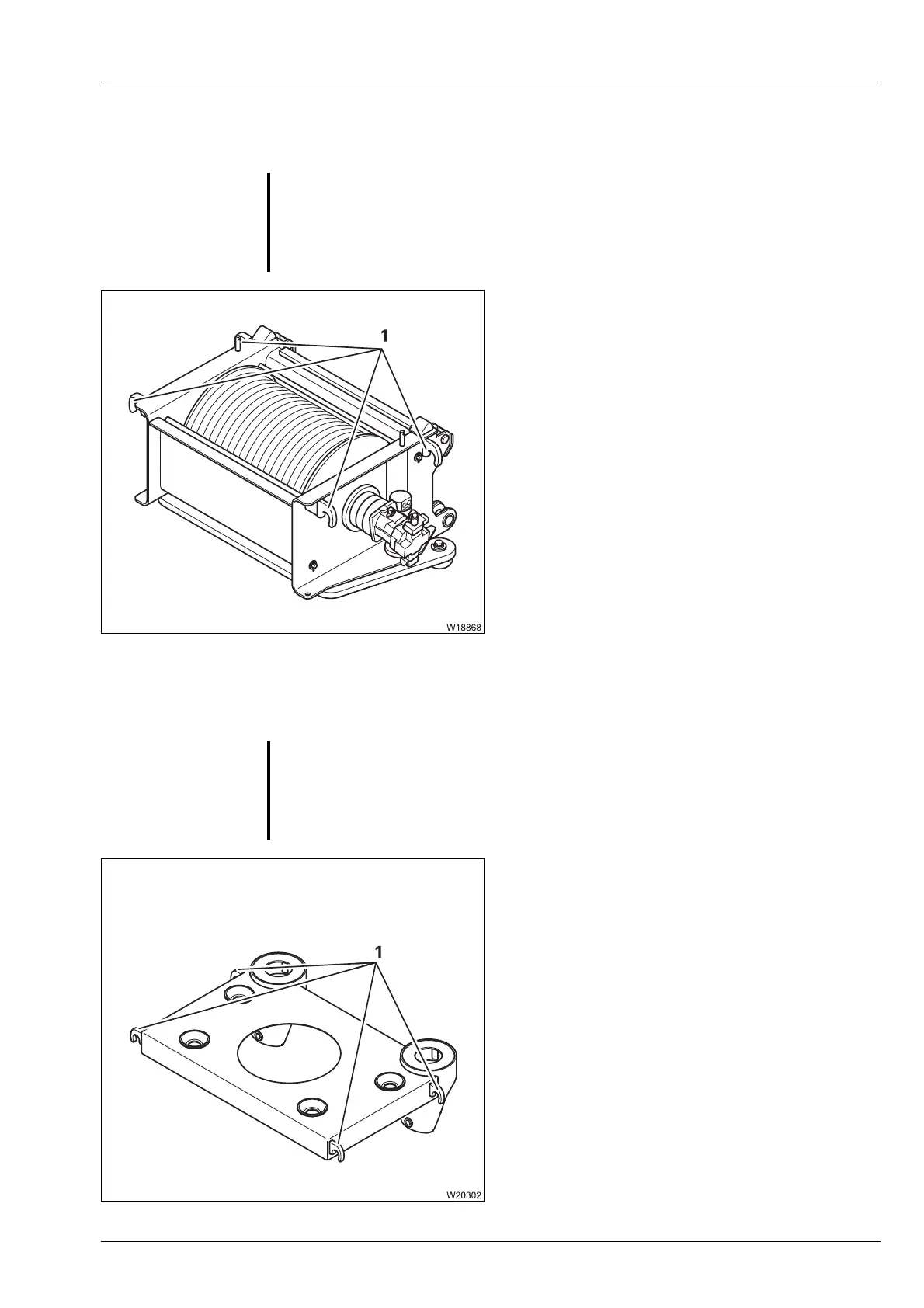

6.6.3 Slinging the auxiliary hoist
•
Sling the auxiliary hoist at the slinging
points (1).
Use lifting gear with the same length, so that
the auxiliary hoist hangs in the centre of
distribution.
6.6.4 Slinging the rigging frame
•
Sling the rigging frame only at the slinging
points (1).
The slinging points (1) are only designed for
the own weight of the rigging frame.
Use lifting gear of the same lengths, so that
the rigging frame hangs in the centre of
gravity.
S
Risk of damage to the auxiliary hoist and truck crane
Only sling the auxiliary hoist onto the slinging points provided. Always use
lifting gear with a sufficient lifting capacity.
S
Risk of damage to the rigging frame and truck crane!
Only sling the rigging frame at the slinging points provided. The slinging
points are only designed for hoisting the rigging frame. Always use lifting
gear with a sufficient lifting capacity.
