Operating elements for driving
3.1 Overview of the operating elements
Operating Instructions GMK5250L 3 302 633 en 3 - 41
27.09.2017

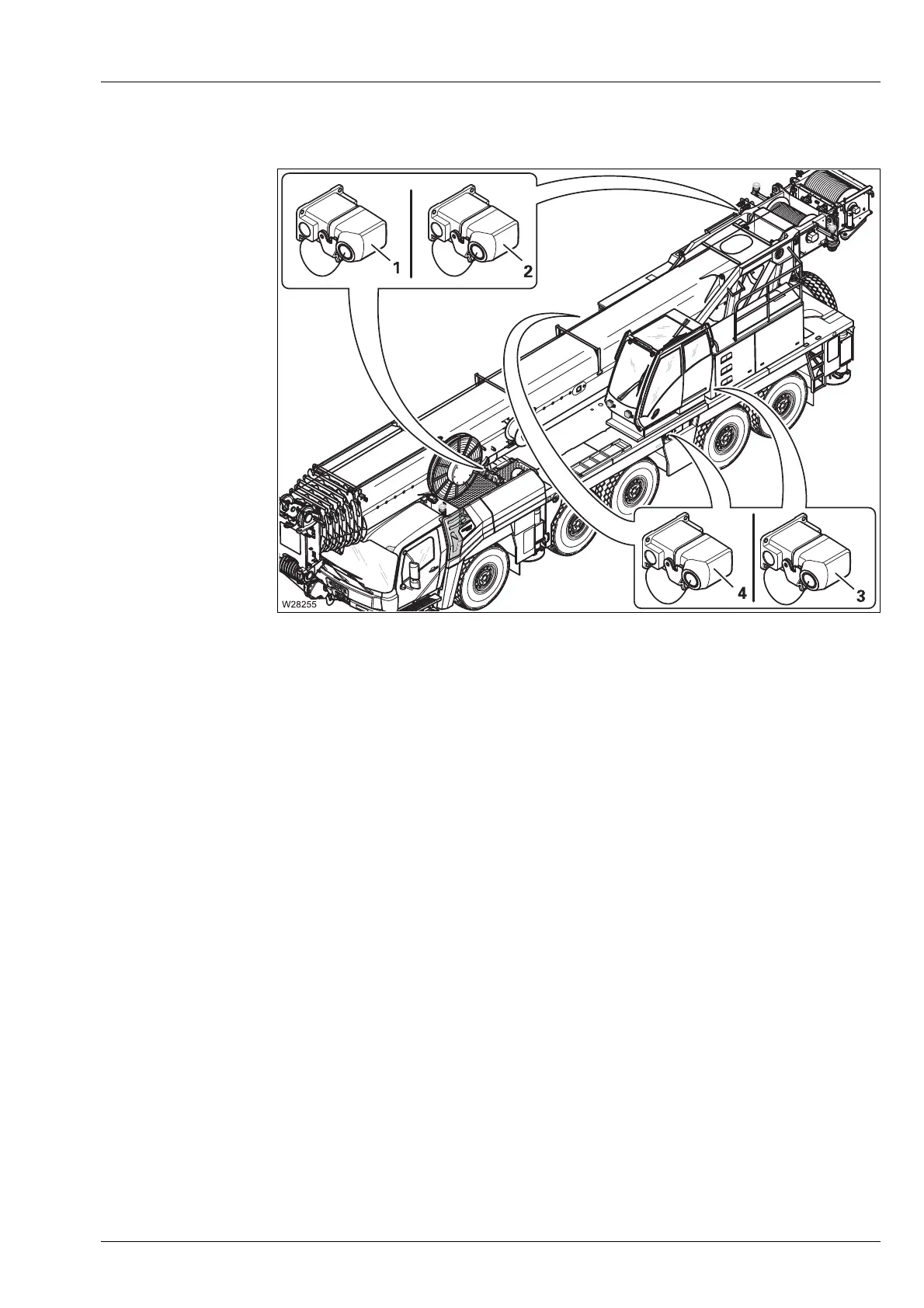

3.1.19 Sockets for hand-held control
There are sockets (4) on the carrier and sockets (1) to (3) on the superstruc-
ture for the hand-held controls supplied.
The hand-held controls contain the operating elements for the outrigger,
the inclination indicator, for rigging work and for driving the power units in
case of emergency.
Since these operating elements are required for crane operation, they are
described in section
Operating elements for crane operation; Ã Hand-held
controls
, p. 8 - 77.
