Operating elements for crane operation
8.1 Overview of the operating elements
Operating Instructions GMK5250L 3 302 633 en 8 - 19
27.09.2017

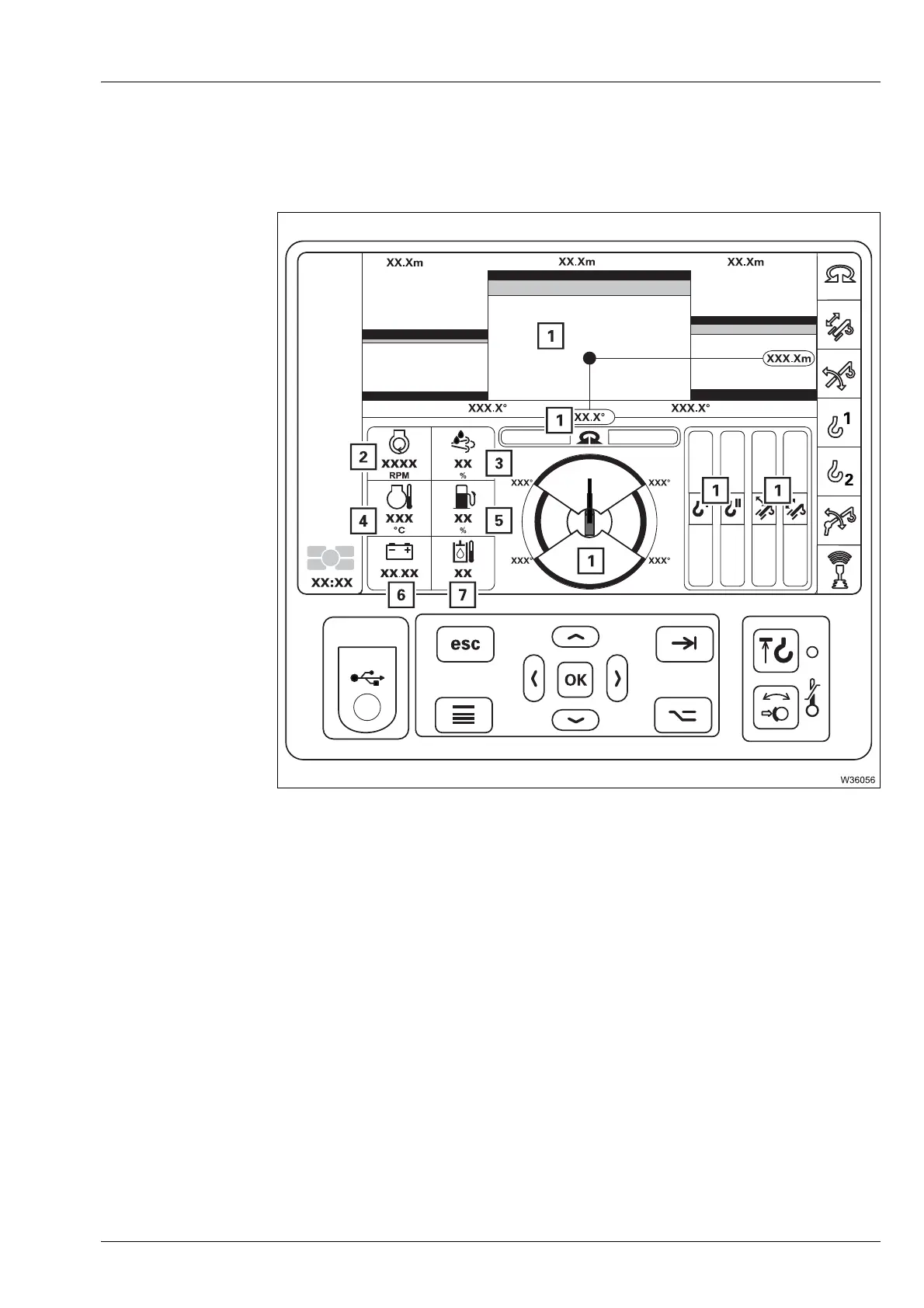

8.1.7 CCS – Start menu
The Start menu shows the key measured values.
s
1 RCL display à p. 8 - 20
2 Engine speed display
à p. 9 - 6
3 AdBlue (DEF) filling level indicator
à p. 9 - 2
4 Coolant temperature display
à p. 9 - 6
5 Fuel level display
à p. 9 - 2
6 Voltage monitoring display
à p. 9 - 6
7 Hydraulic oil temperature display
à p. 9 - 6
