Operating elements for crane operation
8.1 Overview of the operating elements
8 - 20 3 302 633 en Operating Instructions GMK5250L
27.09.2017

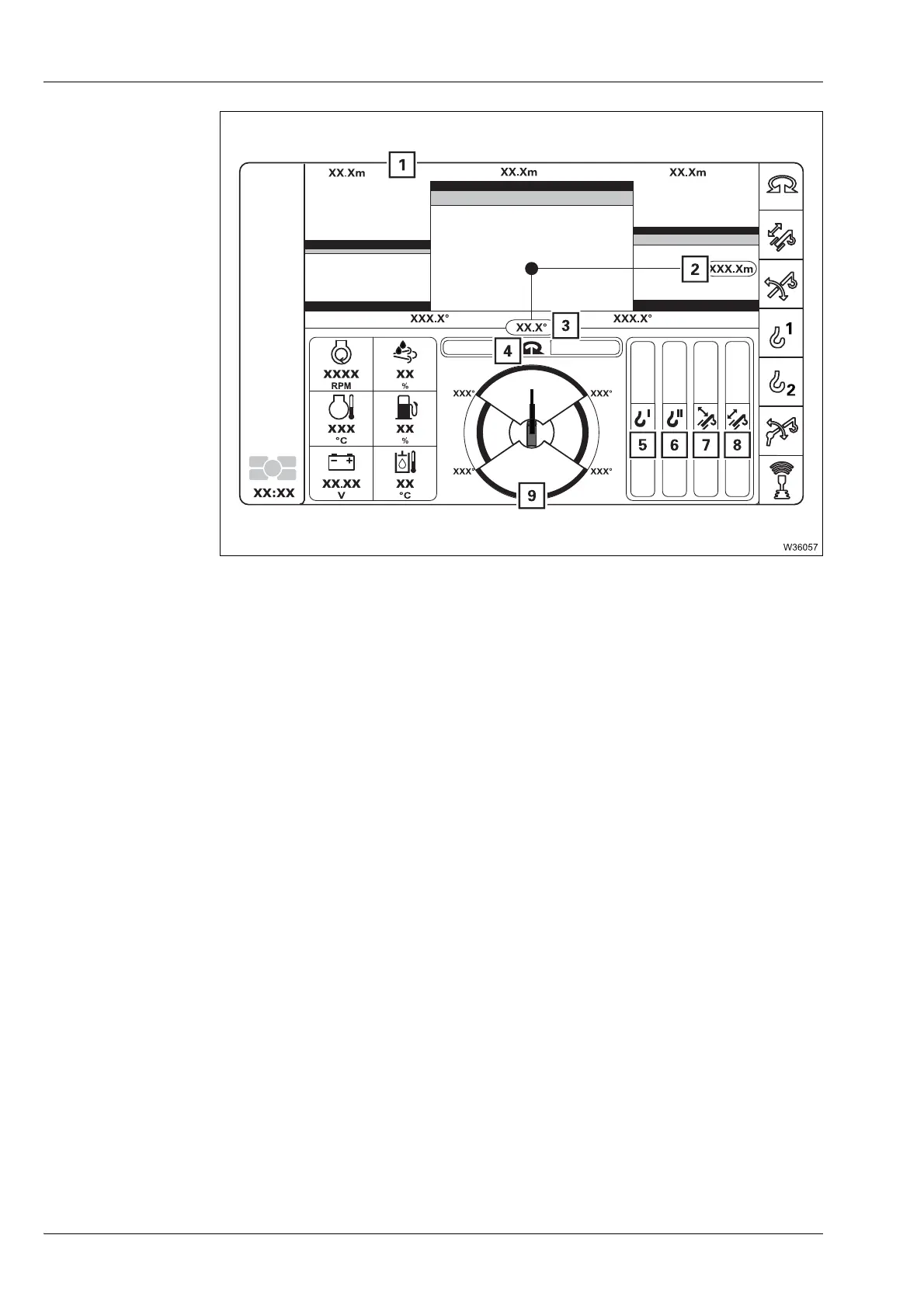

RCL display
1 Slewing ranges/working radii display à p. 8 - 21
2 Current working radius display
à p. 8 - 128
3 Current slewing angle display
à p. 8 - 128
4 Maximum permissible speed display – Slewing gear
à p. 8 - 129
5 Maximum permissible speed display – Main hoist
à p. 8 - 129
6 Maximum permissible speed display – Auxiliary hoist
1)
à p. 8 - 129
7 Maximum permissible speed display – Derricking gear
à p. 8 - 129
8 Maximum permissible speed display – Telescoping
mechanism
à p. 8 - 129
9 Slewing ranges display
à p. 8 - 129
1)
Additional equipment
