Operating elements for crane operation
8.2 Brief description of the operating elements
Operating Instructions GMK5250L 3 302 633 en 8 - 115
27.09.2017

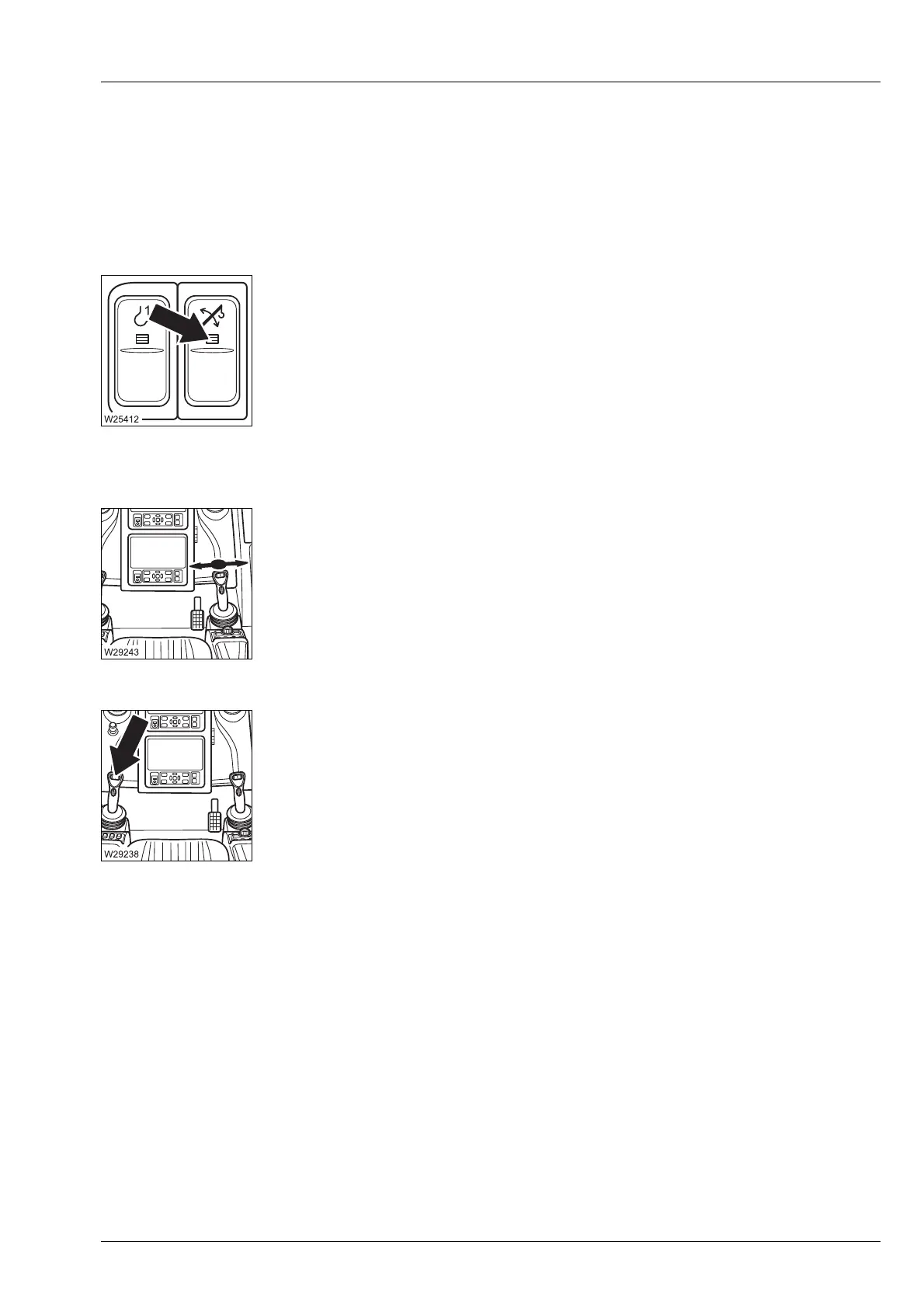

8.2.18 Derricking gear
à Derricking gear, p. 10 - 85.
Control panels
Derricking gear on/off
There is a lamp in the button.
Right control lever
Derricking gear/telescoping mechanism high-speed mode on/off
The parking brake must be applied.
s
– Press once: – Lamp bright – derricking gear on,
Power units with the same control lever configuration
off
– Lamp dim – derricking gear off
à p. 10 - 85
– To the left: Raise – lift main boom
– To the right: Lower – lower main boom
à p. 10 - 86
–Left: High-speed mode on, off when released
– Once to the right: High-speed mode on – continuous operation
– Once to the right or
once to the left:
High-speed mode off
à p. 10 - 113
