Transportation
13.1 Transport with transport vehicle
13 - 2 3 302 633 en Operating Instructions GMK5250L
27.09.2017
13.1.1 CHECKLIST: Checks before transport
H
This checklist is not a complete operating manual. There are accompanying
instructions, which are indicated by cross-references.
Observe the warnings and safety instructions there!
1. – All telescopic sections are interlocked; the telescoping cylinder is
locked with telescopic section
I.
– The superstructure is in the position 0° to the rear.
– The slewing gear is switched off;
à p. 8 - 113.
– The superstructure is locked;
à p. 10 - 15.
– The hoist camera is retracted;
à p. 11 - 137.

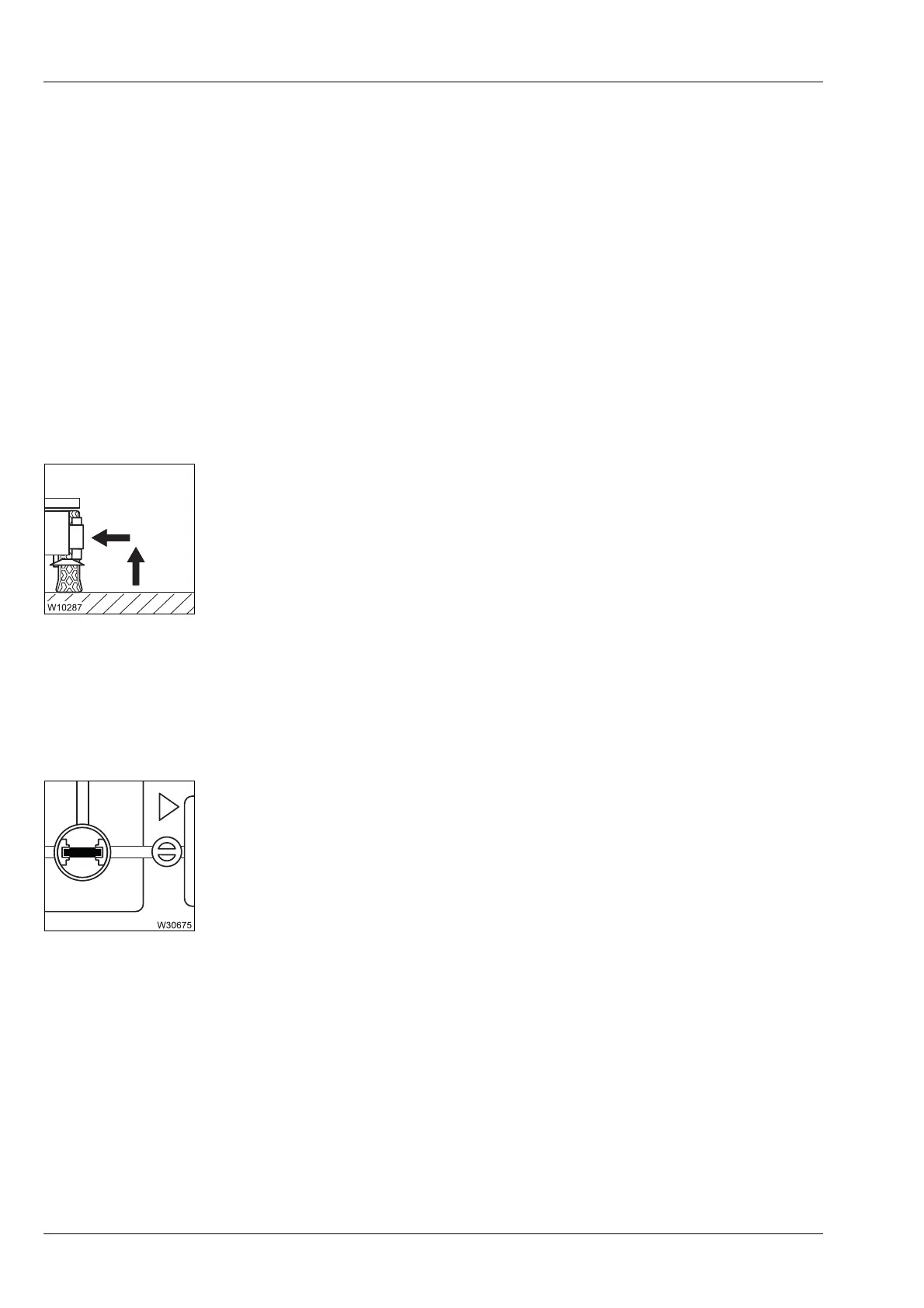

2. On the outrigger
– All outrigger beams are fully retracted;
à p. 11 - 45.
– The outrigger pads must be in the driving position;
à p. 11 - 51.
3. The hook block must be
– attached to the bumper;
à p. 11 - 95,
or
– unreeved;
à p. 11 - 104.
4. The transverse differential locks must be switched on;
à p. 5 - 50.
