Manitowoc Grove GMK 5250L - On the RCL Control Unit

Operating elements for crane operation
8.1 Overview of the operating elements
8 - 72 3 302 633 en Operating Instructions GMK5250L
27.09.2017

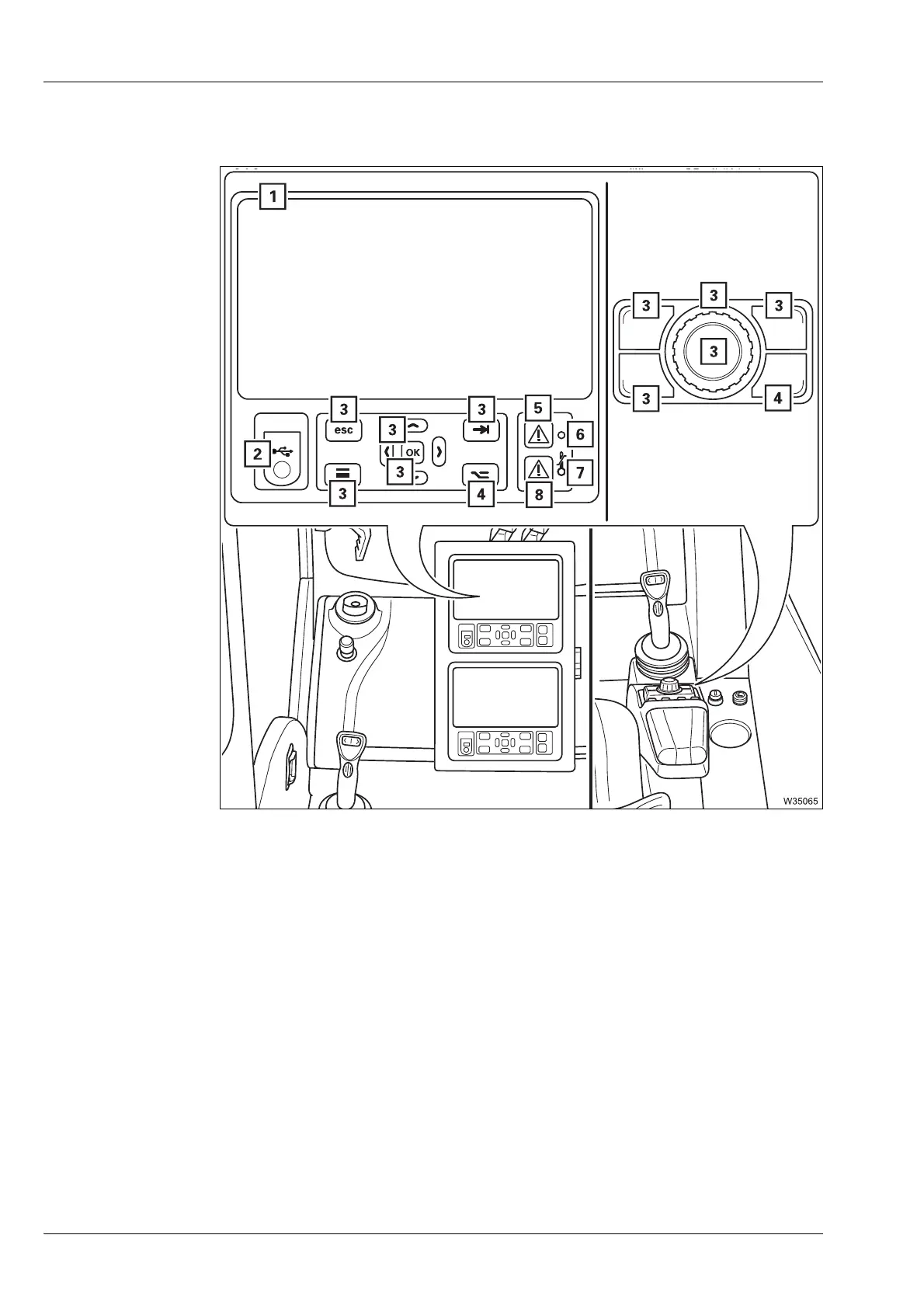

8.1.19 On the RCL control unit
1
RCL display
2 USB connection for data export à p. 8 - 136
3 No function
4 Switch off
RCL buzzer à p. 8 - 92
5 RCL early warning
à p. 10 - 57
6 Sensor brightness
à p. 8 - 92
7 RCL shutdown
à p. 10 - 58
8 Display temperature warning display
à p. 8 - 93
