Operating elements for crane operation
8.2 Brief description of the operating elements
8 - 136 3 302 633 en Operating Instructions GMK5250L
27.09.2017

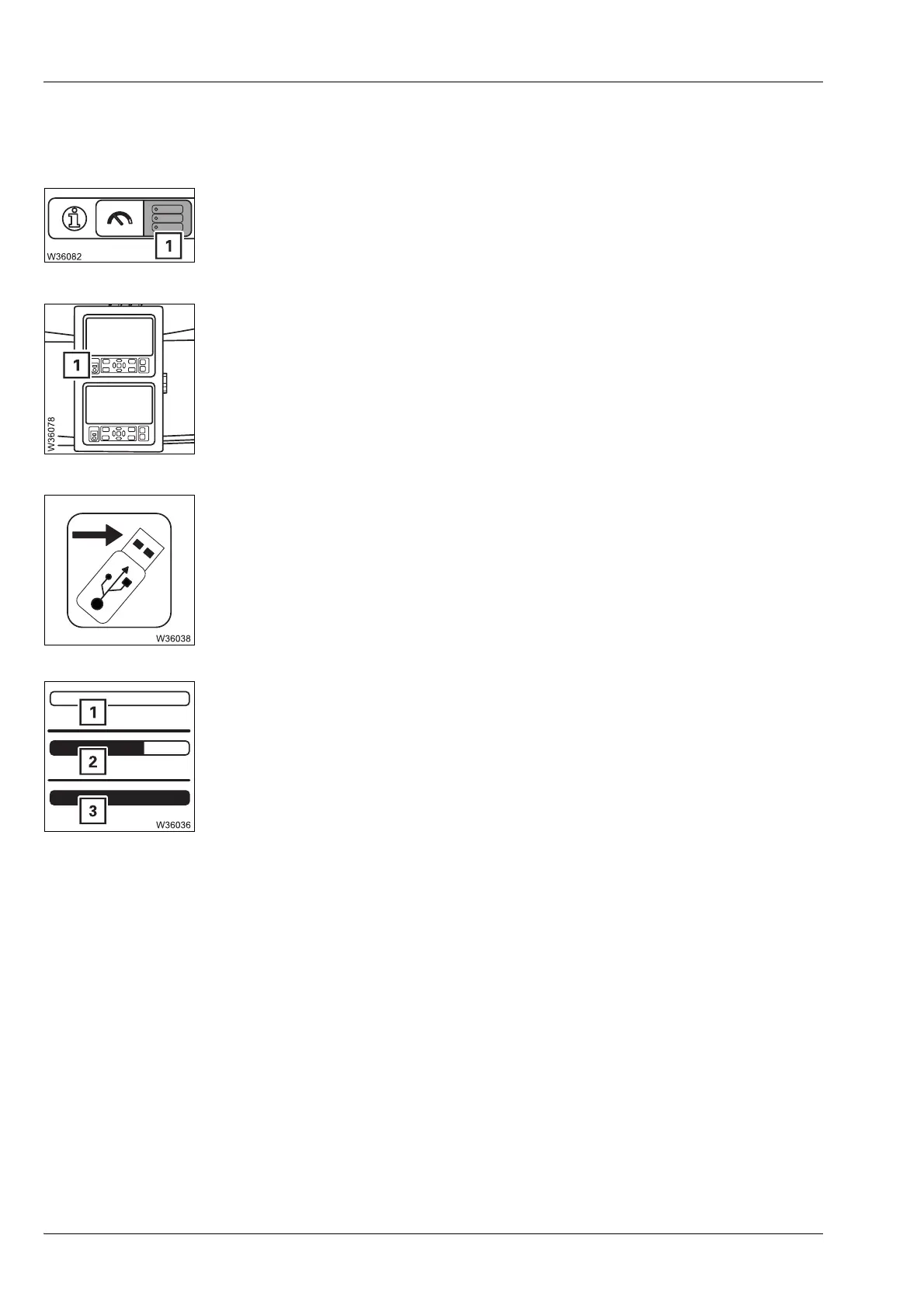

In the Datalogger menu
à Datalogger, p. 10 - 68
USB connection for data export
Export data
Can only be selected when a USB stick is connected to the
RCL control unit.
Starts the data export to the USB stick.
Display of export progress
Display RCL There are no short descriptions for these displays.
–In the
Lifting capacity tables menu;
à Displaying the lifting capacity tables, p. 10 - 59
–In the
Monitoring menu
à Checks before operating the crane, p. 10 - 45,
à Displays during crane operation, p. 10 - 49.
– To open: Select and confirm symbol (1)
1 Connect the USB stick – the symbol for the export is activated
1 0% exported
2 75% exported
3 100% exported
