Operating elements for crane operation
8.2 Brief description of the operating elements
Operating Instructions GMK5250L 3 302 633 en 8 - 135
27.09.2017

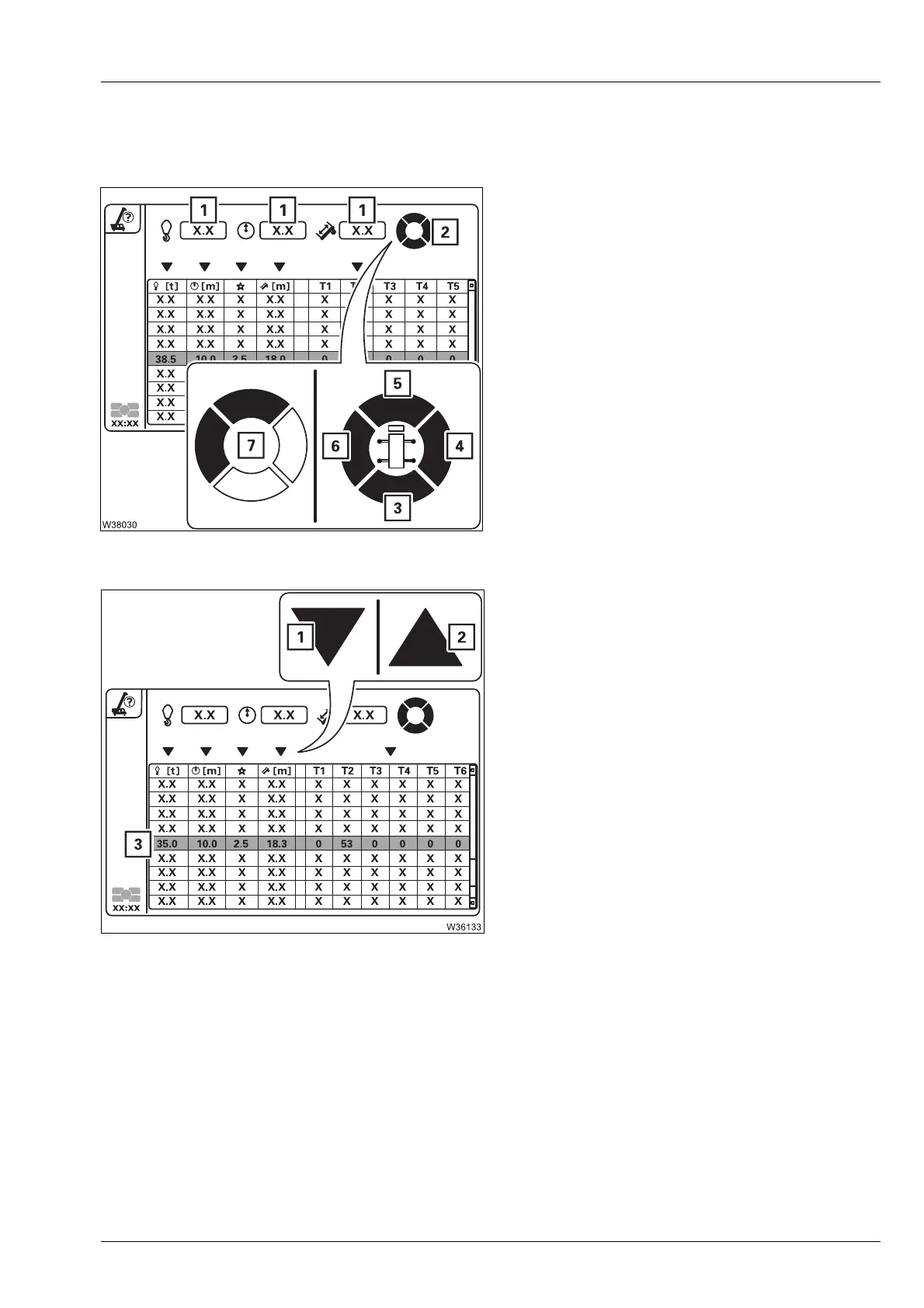

In the Pre-selection telescoping menu
à Pre-selecting telescoping, p. 10 - 40
Enter desired parameter
In input mode – select and confirm parame-
ters (1), (2).
The corresponding table is displayed.
Pre-selection telescoping
Table sorted by columns – select and confirm
the desired symbol.
Preselect the telescope status – select and
confirm the desired line, e.g. line (3).
– The
Pre-selection telescoping menu closes
– The
Enter rigging mode/telescope status menu
opens
à Pre-selecting telescoping, p. 10 - 40
s
1 Selection of numerical values
2 Selection by marking the segments –
marked segments are black
3 Backwards
4 To the right
5 Forwards
6 To the left
7 Example for selecting the slewing
range to the front and to the left
1 Descending sorting
2 Asce
nding sorting
