Driving modes and rigging for on-road driving
6.5 Installing/removing the outrigger beams
Operating Instructions GMK5250L 3 302 633 en 6 - 45
27.09.2017
6.5.7 Disconnecting/establishing hydraulic connection
There is a valve block on each outrigger beam. The position of the valve
block may differ from the drawings, depending on the outrigger beam.

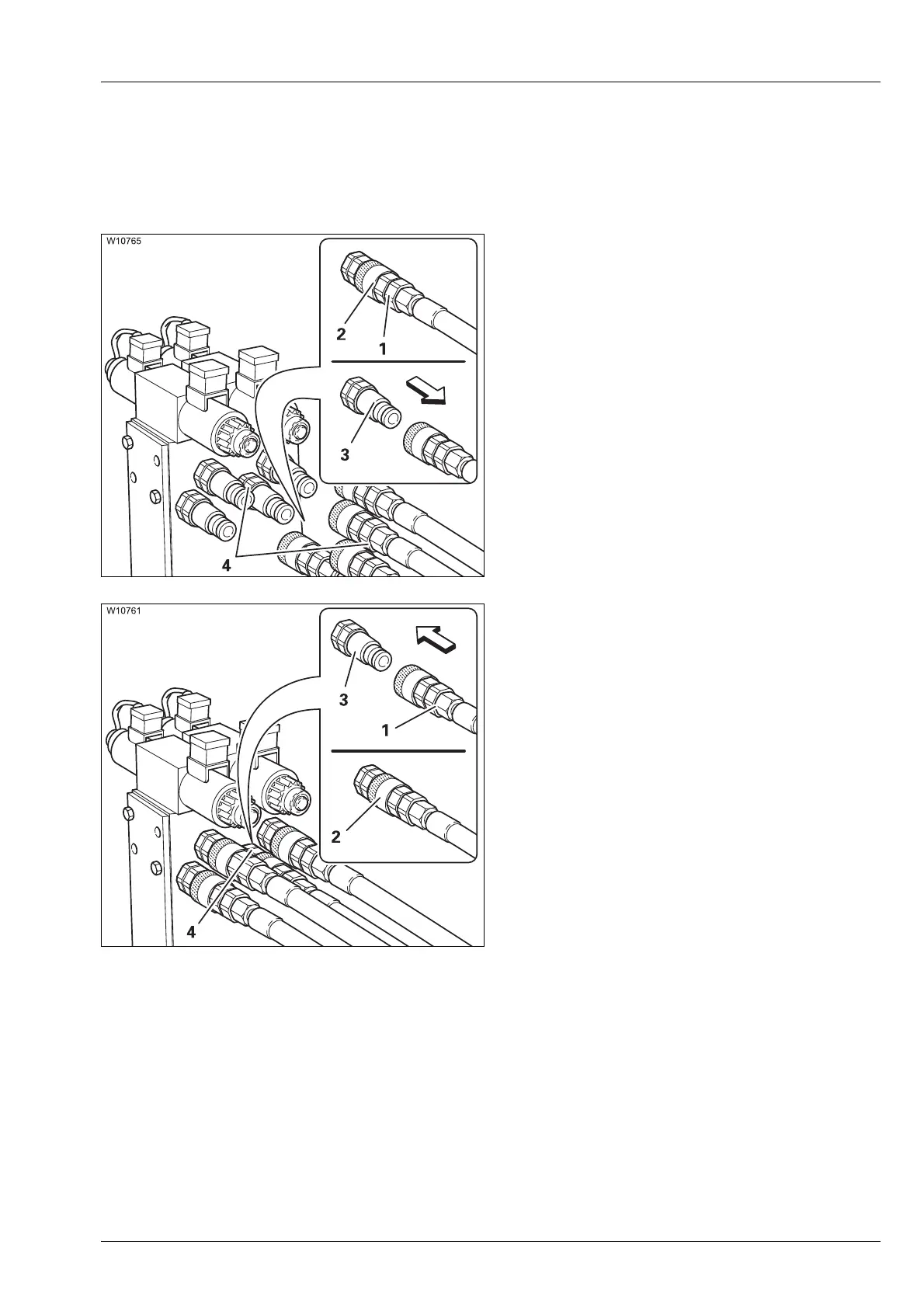

Disconnecting a connection
Always disconnect all connections (4).
• Hold the hose (1) firmly.
• Pull the lock (2) against the stop. The hose is
pushed out of the connection (3).
• Seal all connecting points.
Establishing a connection
Always establish all connections (4).
The assignment is specified by colour
designations.
• Insert the hose (1) into the connection (3).
• The lock (2) engages.
