Driving modes and rigging for on-road driving
6.5 Installing/removing the outrigger beams
6 - 44 3 302 633 en Operating Instructions GMK5250L
27.09.2017
Attaching the
outrigger pads

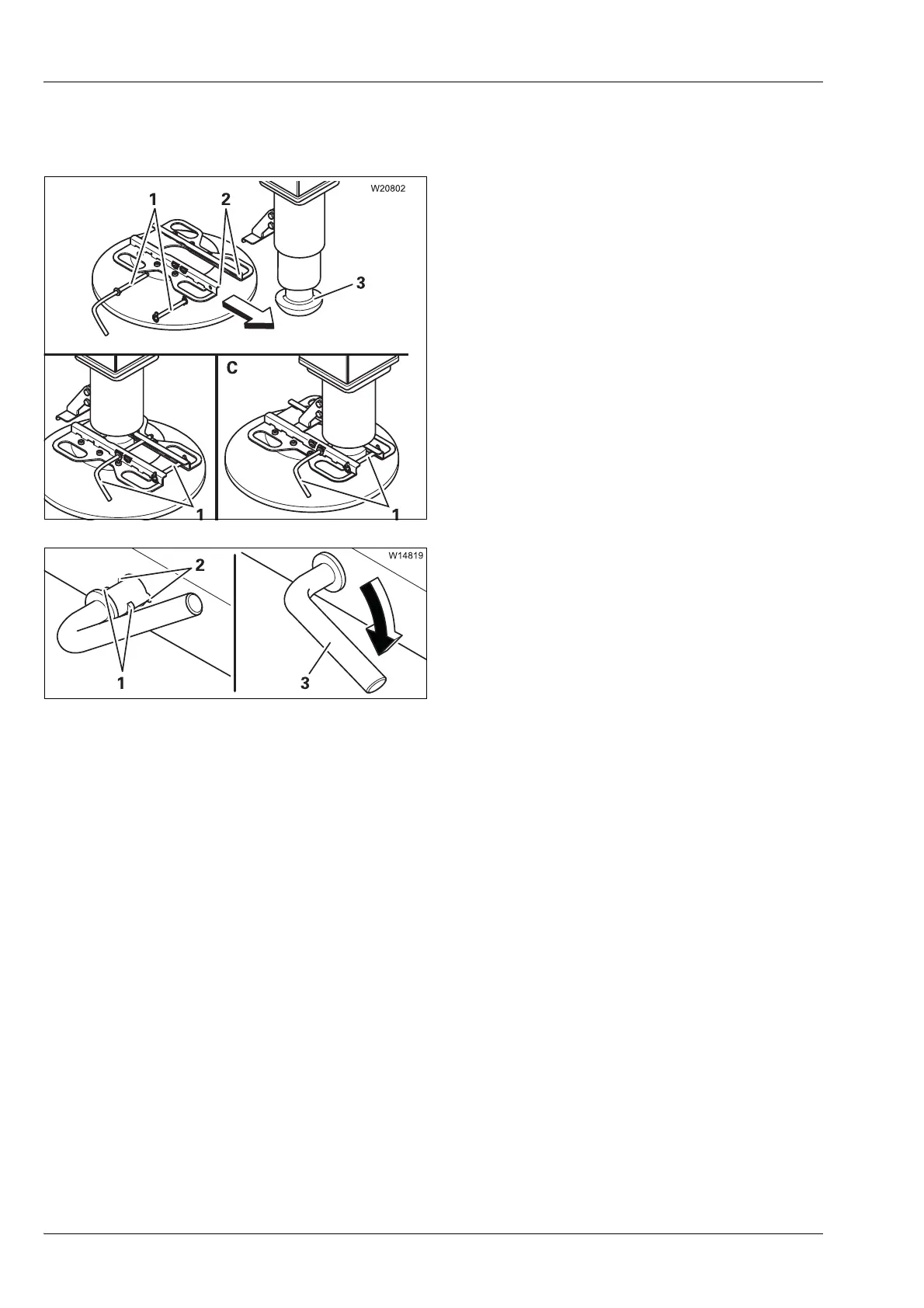

After mounting the outrigger beam, you must attach the outrigger pad.
• (A) – Remove the pin (1).
• Extend the outrigger cylinder far enough so
that the bearing surface (3) is below the
guide (2).
• Push the outrigger pad onto the outrigger
cylinder.
• Move the outrigger pad into required
position.
– On site, move it to the working position (B).
– If you need to drive to the site, in driving
position (C).
• Insert the pins (1) and secure them.
Securing pin
• Plug the pin with the peg (1) through the
cutout (2).
• Turn the grip (3) downward.
