Crane operation
10.7 Working range limiter
Operating Instructions GMK5250L 3 302 633 en 10 - 133
27.09.2017
In the CCS
Start menu

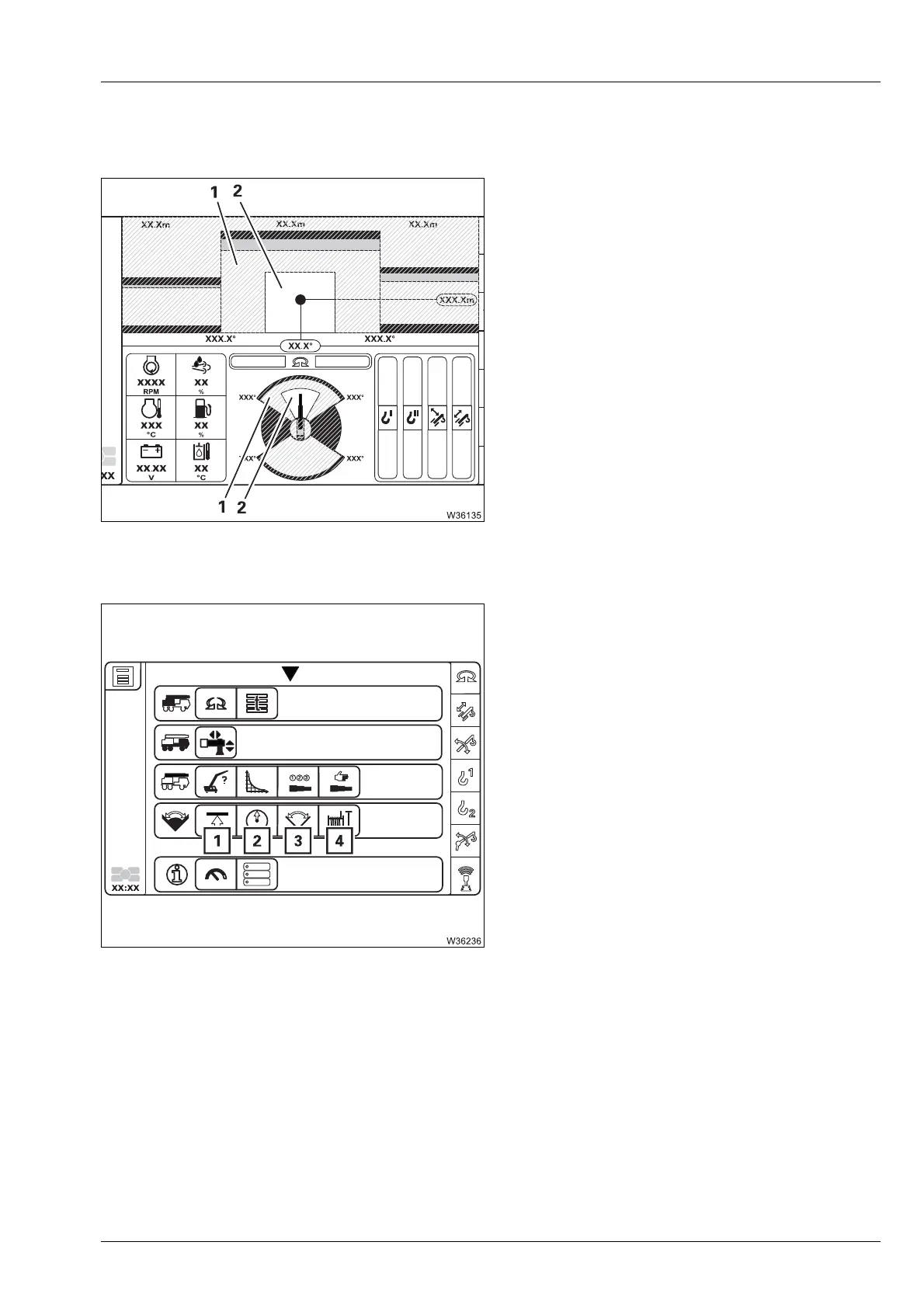

The RCL shows the limited working range for the slewing angle and working
radius
monitoring systems.
Display examples for switched-on
slewing
angle
and working radius monitoring systems.
10.7.2 Opening the working range limiter menu
• Open the Menu groups overview menu if
necessary and select the corresponding
symbol (1) to (4).
The corresponding
Working range limiter menu
opens.
s
1 Permissible working range according to
the
lifting capacity table – shown darkened
2 Limited working range – shown lightened
To Next Page
