Crane operation
10.7 Working range limiter
10 - 134 3 302 633 en Operating Instructions GMK5250L
27.09.2017

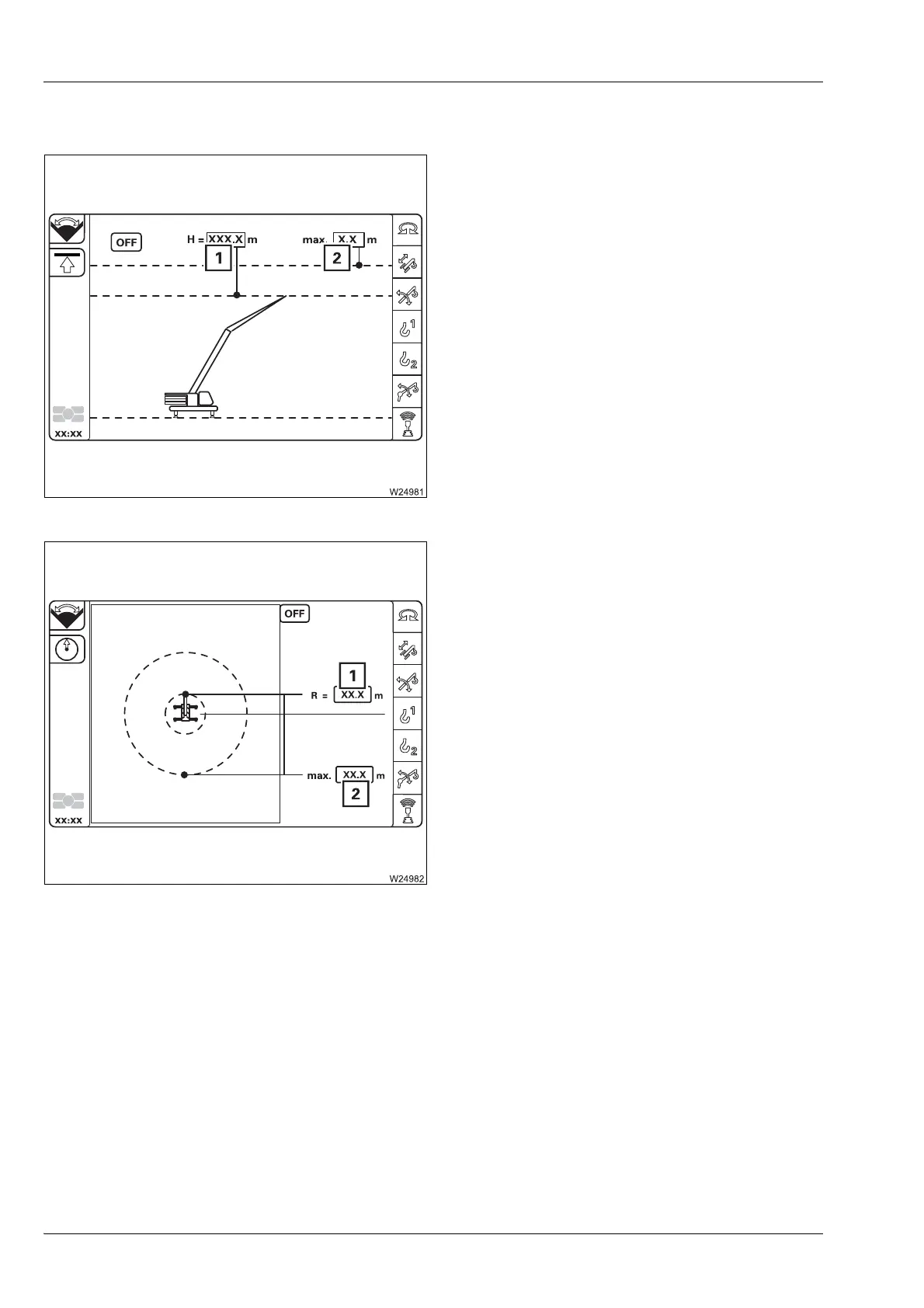

The working range limiter values are displayed graphically and numerically.
Limit values/current values for height
The symbols show values for:
Limit values/current values for working
radius
The symbols show values for
1 Current overall height
2 Permissible overall height
1 current working radius
2 permissible working radius
