Starting/switching off the engine – for crane operation
9.1 When starting the engine for the first time in the day
9 - 4 3 302 633 en Operating Instructions GMK5250L
27.09.2017
Checking the
hand-held control
The hand-held control must be removed for crane operation from the
crane cab.

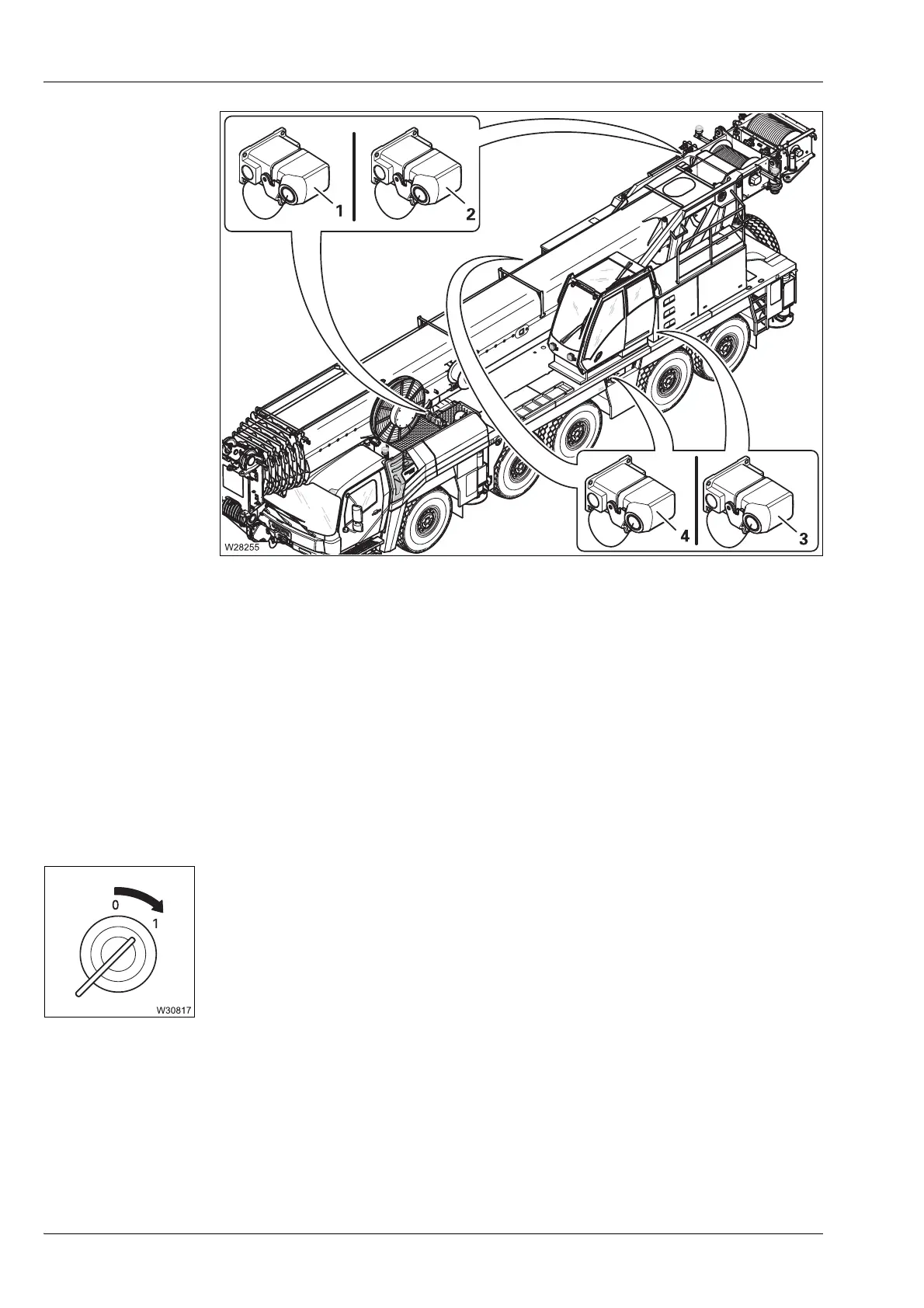

• Check whether bridging plugs (1)to(4) are inserted in all the sockets;
à p. 11 - 22.
You can start the engine from the crane cab, but if the hand-held control is
connected, the operating elements for crane operation are disabled.
9.1.3 Switch on the ignition
•
Insert the ignition key into the ignition lock and turn the key to position 1.
After switching on the ignition the switching states are checked.
H
DO not start the engine until the CCS display shows a menu (usually the
Enter rigging mode menu).
