Rigging work
11.10 Rigging work on the main boom
Operating Instructions GMK5250L 3 302 633 en 11 - 113
27.09.2017
11.10.6 Possible reeving on the main boom
Possible reevings on lattice extensions and the auxiliary single-sheave
boom top;
à Operating Instructions Lattice Extension.
H
The maximum lifting capacity is specified in the Lifting capacity
table
supplied.
With 7 head
sheaves
If 10 head sheaves are present;
à p. 11 - 116.
If 11 head sheaves are present;
à p. 11 - 119.
7 sheave hook block
s

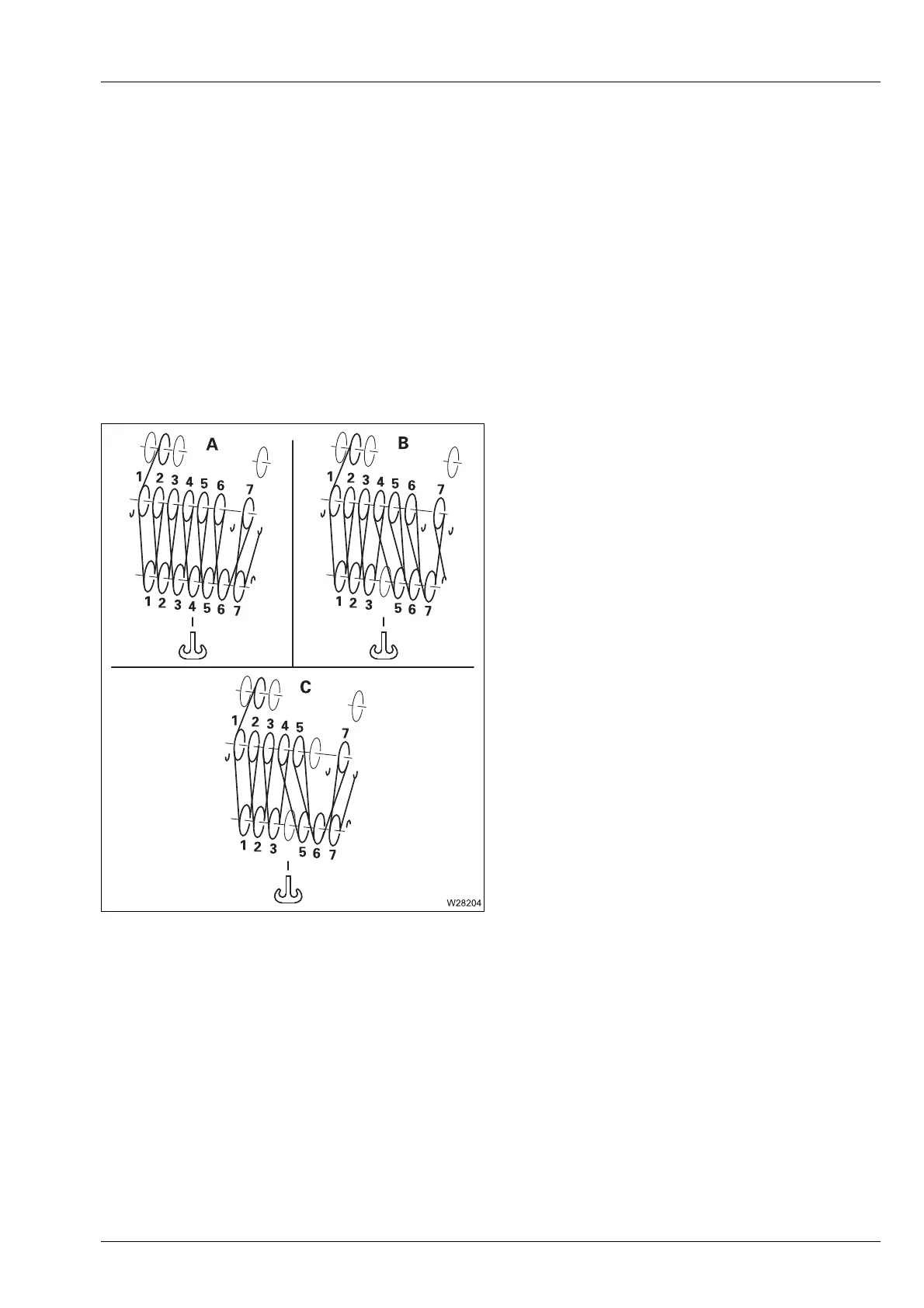

Reeving
A 14-fall
B 13-fall
C 12-fall
