Rigging work
11.7 Outriggers – Overview – MAXbase slewing range type
Operating Instructions GMK5250L 3 302 633 en 11 - 31
27.09.2017

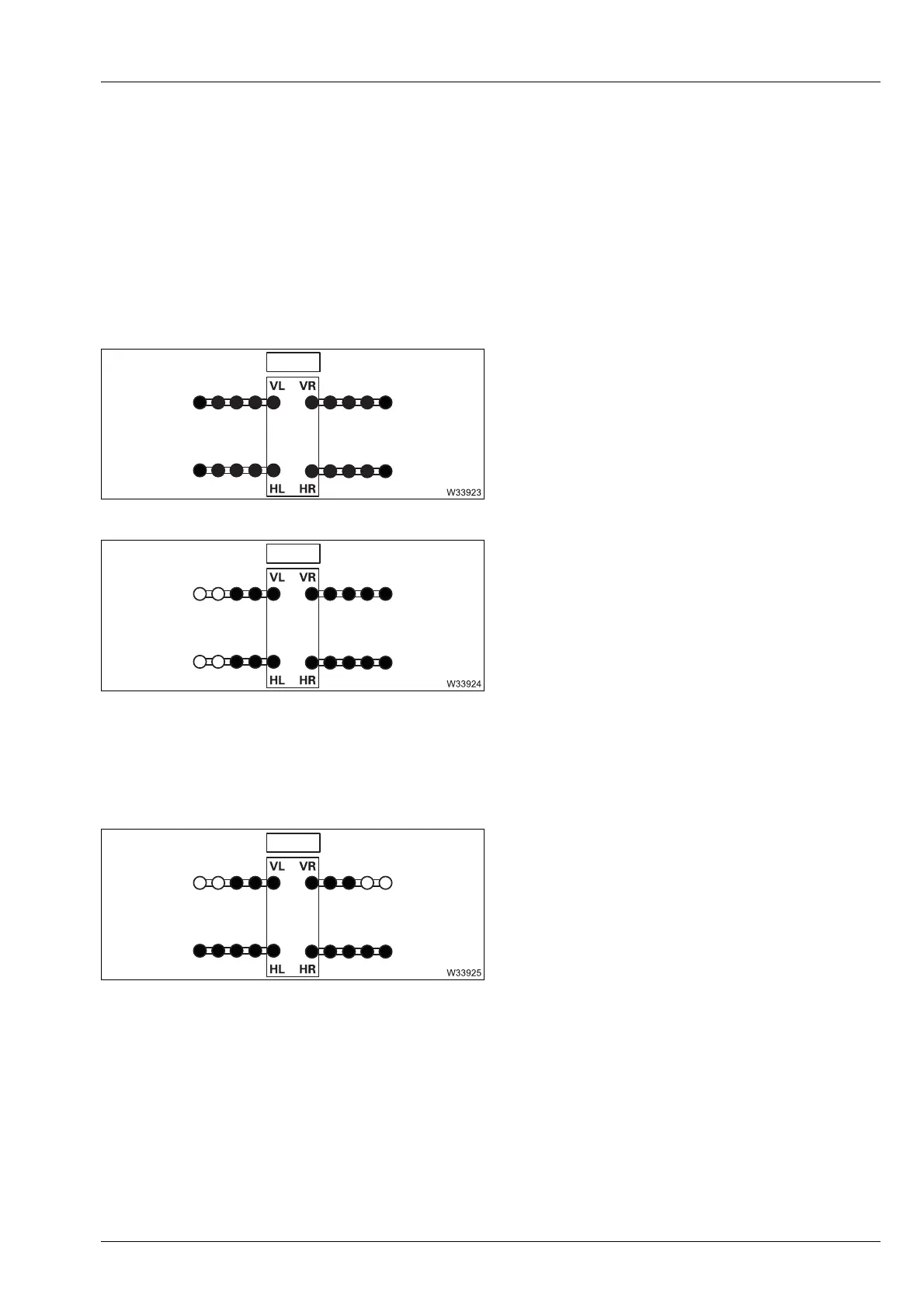

11.7.2 Representation in the lifting capacity tables
The outrigger span is always specified in this form
Outrigger length xxxx – outrigger width yyyyy
– The value xxxx is always 8.950 m (29.4 ft).
– The value yyyy depends on the type of outrigger span.
A distinction is made between four types.
Symmetrical
The outrigger width is the same for all outrig-
ger beams. The overall width is entered once.
For example
Right / Left
The outrigger span is the same at the left side
and the same at the right side – but different
between the right and left sides.
The individual widths for the front and for the
rear are entered. For example
Front / rear
The outrigger width is the same at the front
and the same at the rear – but different
between the front and rear.
The overall width is entered for the front and
for the rear. For example
s
Outrigger width 7.800 m (25.6 ft)
Front outrigger span 3.900 + 2.955 m
(12.8 + 9.7 ft)
Rear outrigger span 3.900 + 2.955 m
(12.8 + 9.7 ft)
Front outrigger span 5.910 m (19.4 ft)
Rear outrigger span 7.800 m (25.6 ft)
