Rigging work
11.7 Outriggers – Overview – MAXbase slewing range type
11 - 30 3 302 633 en Operating Instructions GMK5250L
27.09.2017

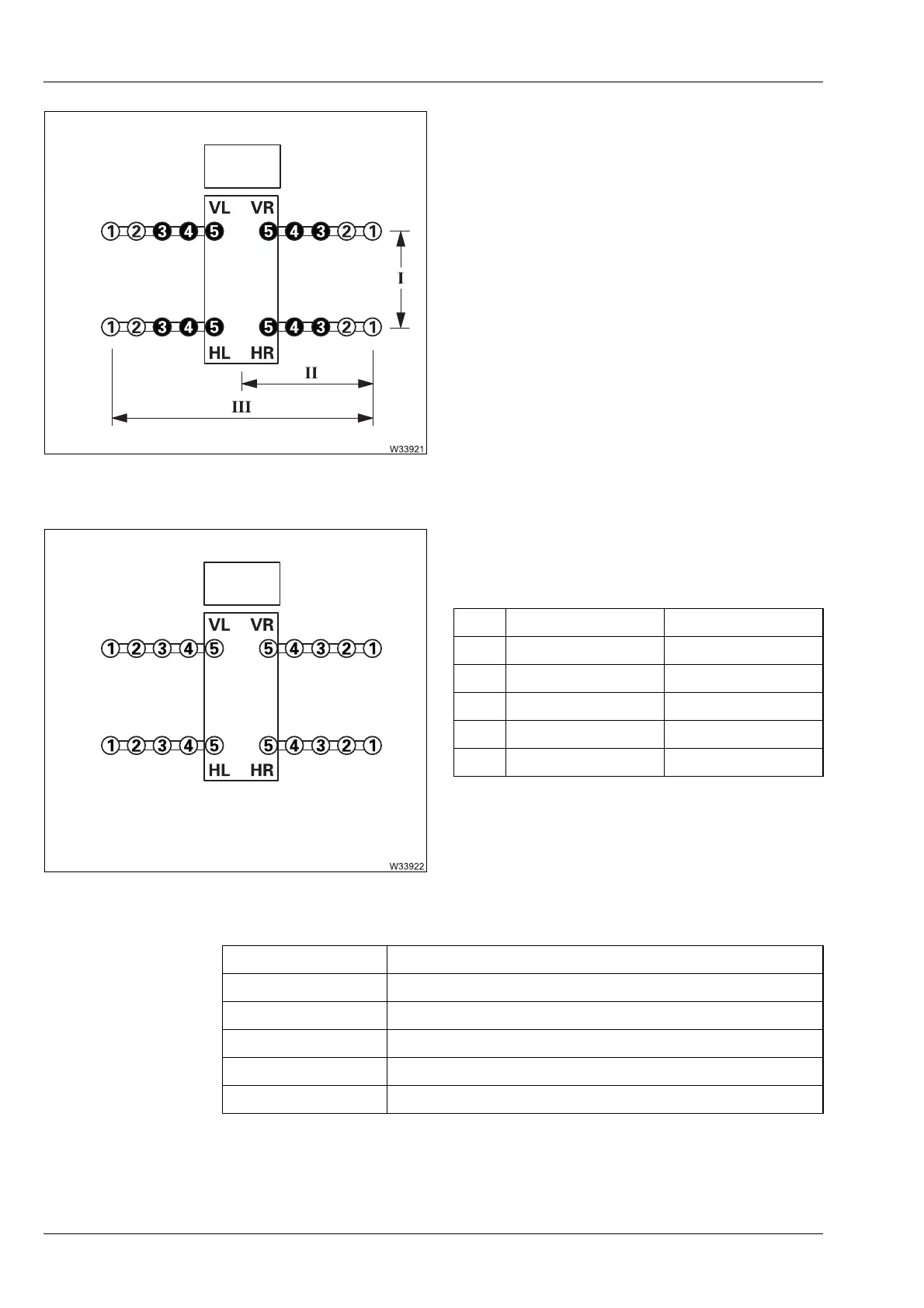

Representation of the outrigger spans
– Outrigger length
The outrigger length (
I) has a fixed value of
8.950 m (29.4 ft) and never changes.
– Outrigger width
All possible outrigger spans (1) to (5) are
always shown for all outrigger beams.
For defining an outrigger span, the rigged
outrigger spans (and all smaller spans) are
shown in black and the illustration shows
the outrigger widths (3).
The outrigger width is specified as an indi-
vidual width (
II) or overall width (III)
depending on the type of the outrigger
span.
Individual widths / Overall widths
The tables show the values for the outrigger
widths (1) to (5).
The individual widths and overall widths are
specified in metres (Feet) in the lifting capacity
tables.
The cover pages of the individual lifting capacity tables provide a brief
overview in percent.
Individual widths Overall widths
1 3.900 m (12.8 ft) 7.800 m (25.6 ft)
2 3.427 m (11.2 ft) 6.854 m (22.4 ft)
3 2.955 m (9.7 ft) 5.910 m (19.4 ft)
4 2.155 m (7.1 ft) 4.310 m (14.2 ft)
5 1.355 m (4.4 ft) 2.710 m (8.8 ft)
Outrigger width Percent
1 100%
2 83%
3 66%
4 50%
5 0%
