Operating elements for crane operation
8.2 Brief description of the operating elements
Operating Instructions GMK5250L 3 302 633 en 8 - 101
27.09.2017

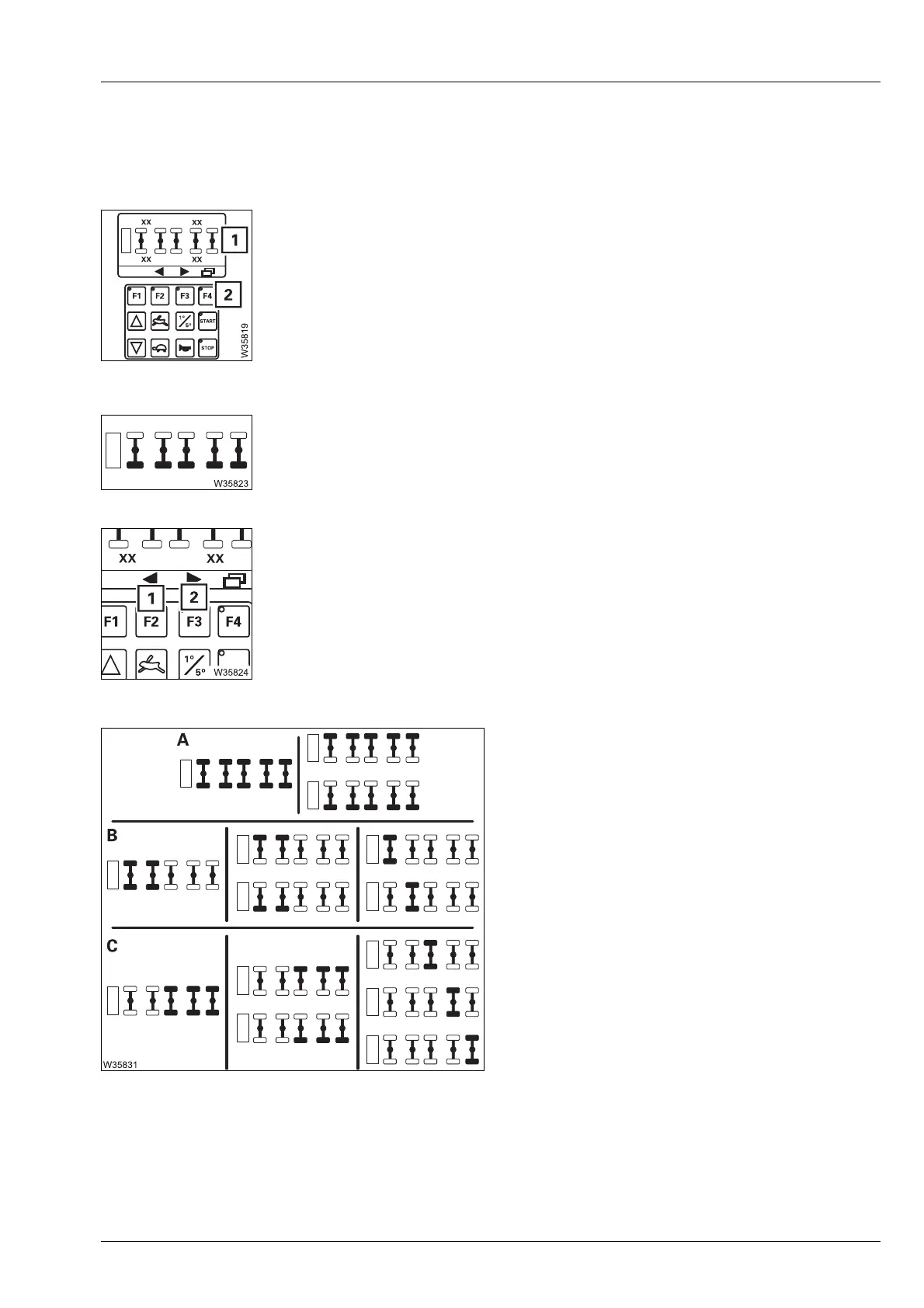

8.2.10 Raise axle
à Operating the axle raising system, p. 11 - 63
Raise axle menu
The suspension is switched off (locked).
The operating elements for raising the axles are only active when the
Raise axle menu is open.
Pre-selection display
Pre-selected wheels are black, e.g. all wheels on the operator's side.
Pre-selecting wheels
Only pre-defined wheel groups can be selected.
Selectable wheel groups
s
– To open: Press button (2) repeatedly until display (1) appears.
1Forwards: Press button once – next wheel group
2 Back: Press button once – previous wheel group
A All wheel groups
– All wheels
– Opposing wheels
– Operator side wheels
B/C Front/rear wheel group
Rear wheel group
– All wheels
– Opposing wheels
– Operator side wheels
– Individual axle lines
