Operating elements for crane operation
8.2 Brief description of the operating elements
8 - 100 3 302 633 en Operating Instructions GMK5250L
27.09.2017

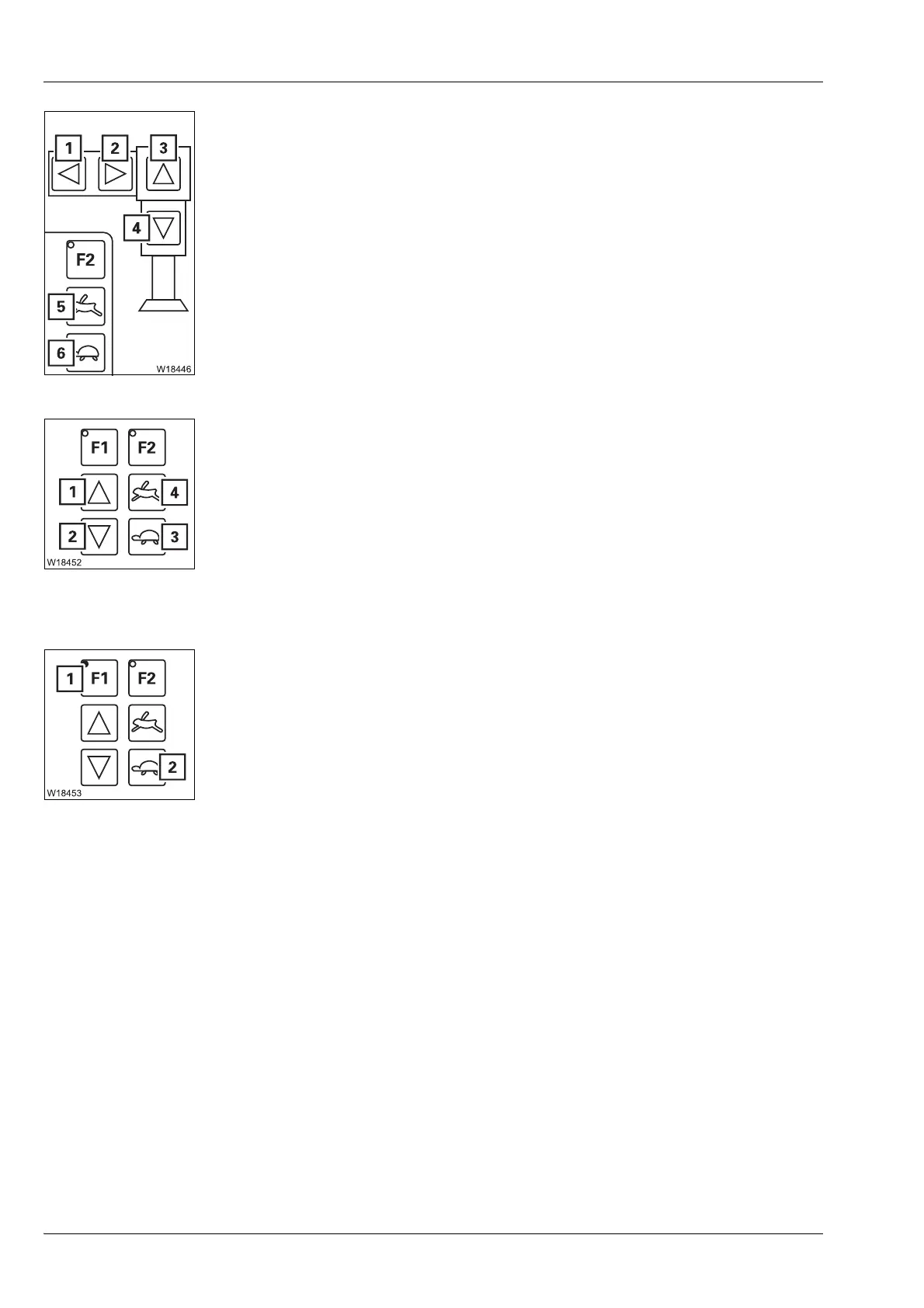

Operating the right outriggers (next to control unit)
Operation is the same as on the button unit for
Outriggers next to the control
unit
.
Extending/retracting all supporting cylinders
Button (3) or (4) is pressed.
1Retract: Press button – all outrigger cylinders retract
2 Extend: Press button – all outrigger cylinders extend
Movement stops after the button is released, and when an end position is
reached;
à p. 11 - 54.
– Automatic alignment
Press button (1) and button (2) together –
Truck crane is levelled horizontally
The process stops as soon as the truck crane is levelled horizontally or
the button is released
à p. 11 - 61
