Rigging work
11.8 Outrigger operation
11 - 54 3 302 633 en Operating Instructions GMK5250L
27.09.2017
From the
control units
If the hand-held control is connected, the Outrigger operating units are
inactive.
Start the engine
• Disconnect the hand-held control, if necessary, and start the engine
either:
– From the driver's cab;
à p. 4 - 14,
or
– from the control units; p. 11 - 25.
Moving the supporting cylinders

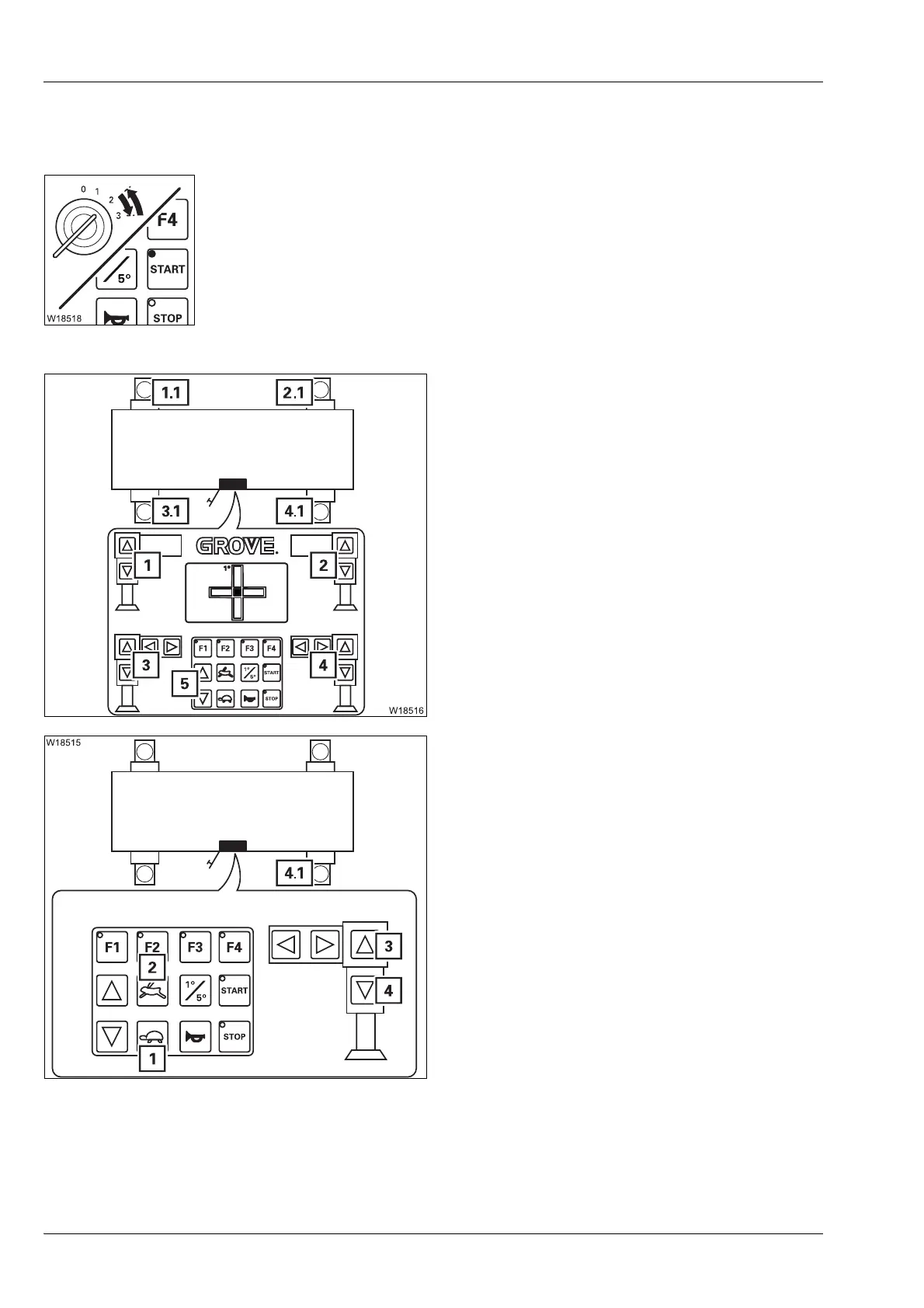

Assignment of buttons:
• Observe the safety instructions for operat-
ing the supporting cylinders;
à p. 11 - 53.
The operation is the same for all supporting
cylinders.
• Press the button
• Also press the button for the desired
supporting cylinder, e.g. for 4.1.
You can also operate several supporting cylin-
ders at the same time.
The supporting cylinders move until you let go of the respective button or
until the respective end position has been reached.
1 Supporting cylinder 1.1
2 Supporting cylinder 2.1
3 Supporting cylinder 3.1
4 Supporting cylinder 4.1
5 All supporting cylinders (1.1) to (4.1)
1 For normal speed
2 For high-speed mode.
3 For retracting
4 For extending
