Rigging work
11.8 Outrigger operation
Operating Instructions GMK5250L 3 302 633 en 11 - 55
27.09.2017
With the hand-
held control

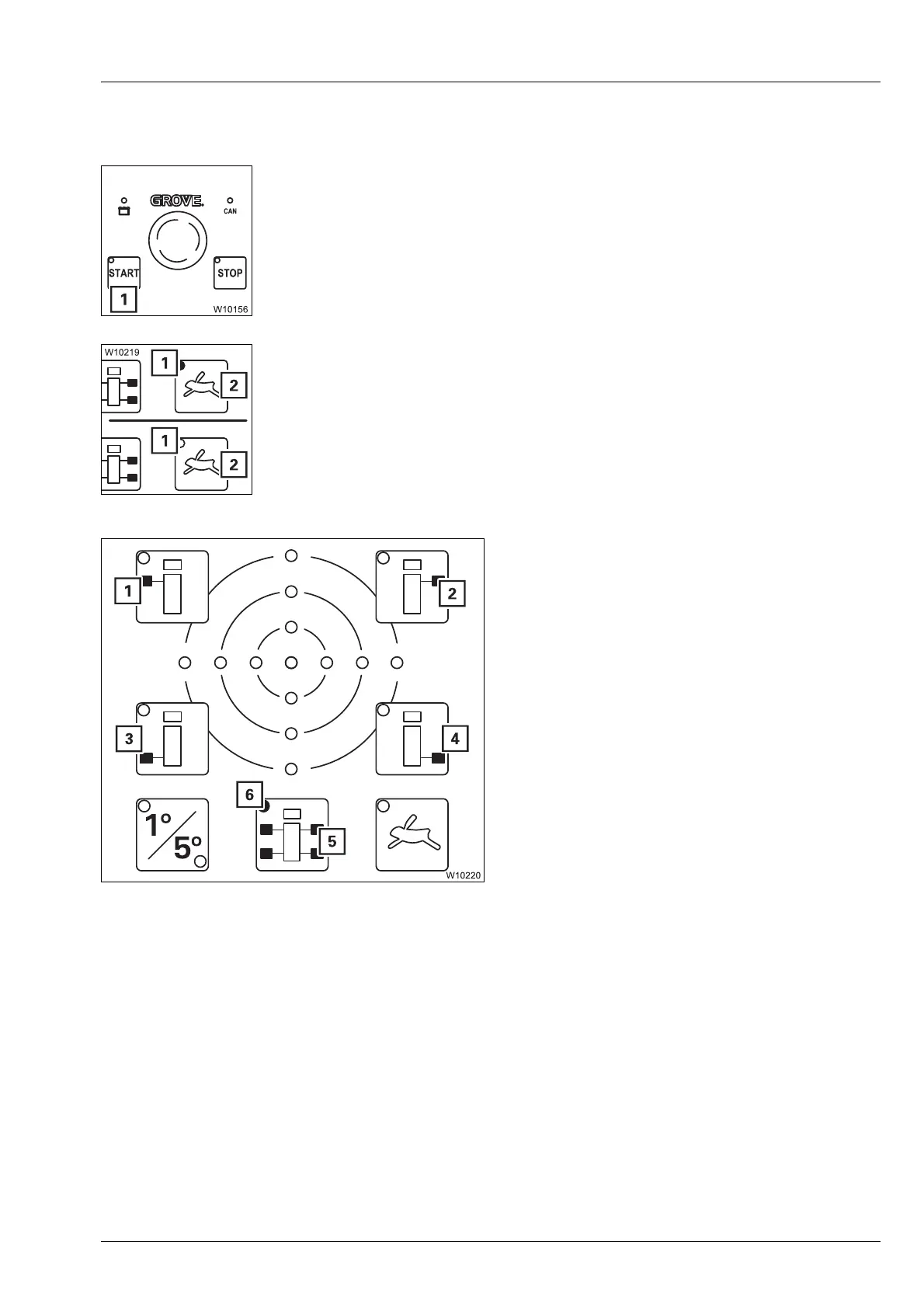

• Connect the hand-held control to any socket on the carrier; à p. 11 - 22.
Start the engine
• Press the button (1) – the engine starts; à p. 9 - 8.
Pre-select high-speed mode/normal speed
• Press the button (2).
– Lamp (1) lights up – high-speed mode pre-selected,
– Lamp (1) goes out – normal speed pre-selected.
Pre-selecting outriggers
• Press the button for the required outriggers
once
Pre-selection is switched on and the lamp in
the corresponding button lights up, e.g. the
lamps (6).
The pre-selection is switched off after approx.
10 seconds.
H
Combinations of the buttons (1) to (4) are also possible, e.g. buttons (1)
and (2), in order to lift the truck crane at the front.
s
1 Front left
2 Front right
3 Rear left
4 Rear right
5 All
