Crane operation
10.7 Working range limiter
10 - 140 3 302 633 en Operating Instructions GMK5250L
27.09.2017

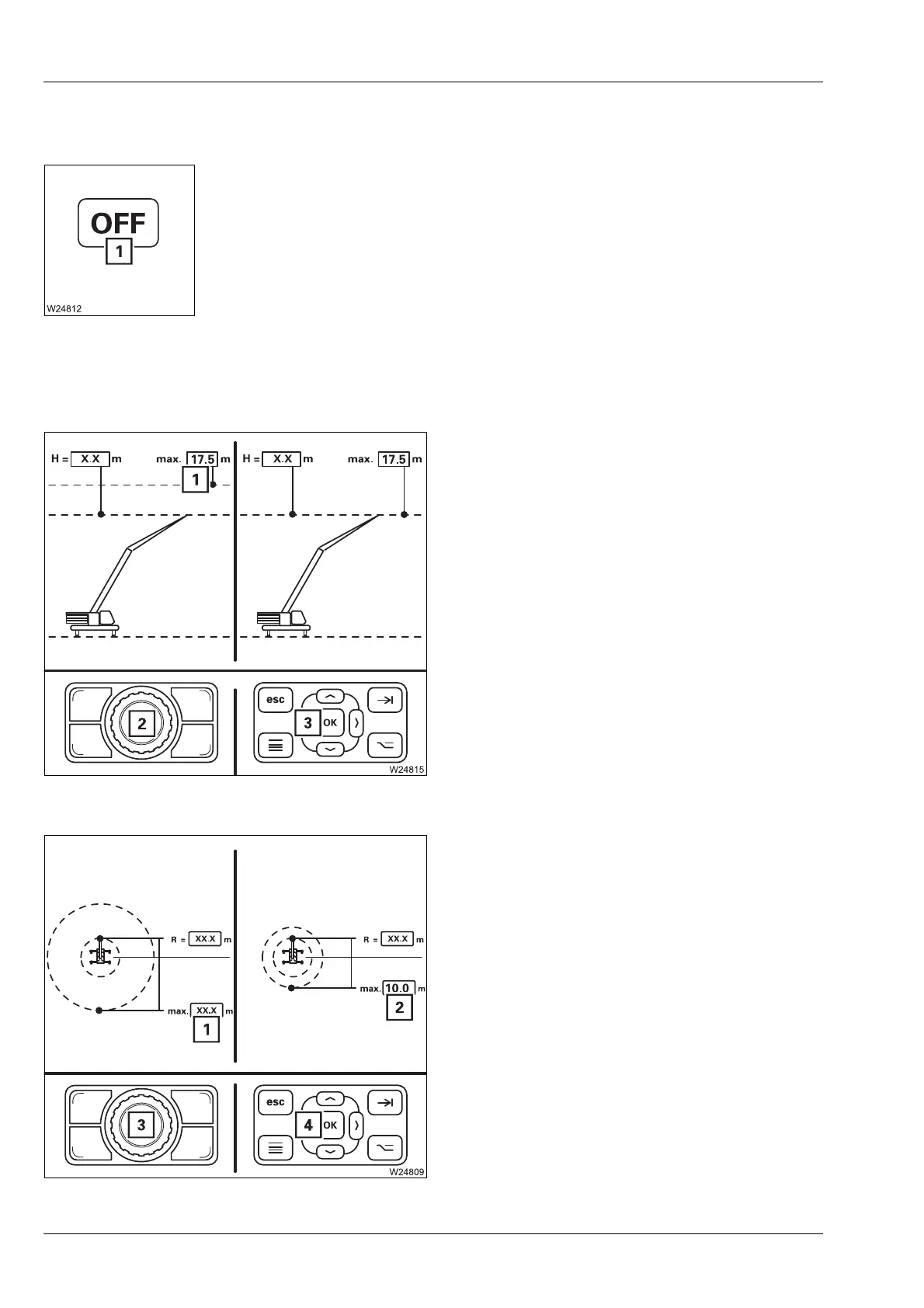

10.7.4 Entering limit values manually
When entering the values:
The monitoring must be switched off – symbol (1) is red;
à Switching
monitoring functions on/off
, p. 10 - 142.
Limit values The limit values for the overall height, the working radius, and the slewing
angle are entered in the same way.
– For the overall height
• Select and confirm the symbol (1) – symbol
is red.
• Set the limit value, e.g. 17.5 m and confirm
with button (2) or (3). The value is adopted.
Switch on monitoring;
à p. 10 - 142
– For working radius
• Select and confirm the symbol (1) – symbol
is red.
• Set the limit value, e.g. 10.0 m and confirm
with button (2) or (3). The value is adopted.
Switch on monitoring;
à p. 10 - 142
