Manitowoc Grove GMK 5250L User Manual

Crane operation
10.7 Working range limiter
Operating Instructions GMK5250L 3 302 633 en 10 - 141
27.09.2017

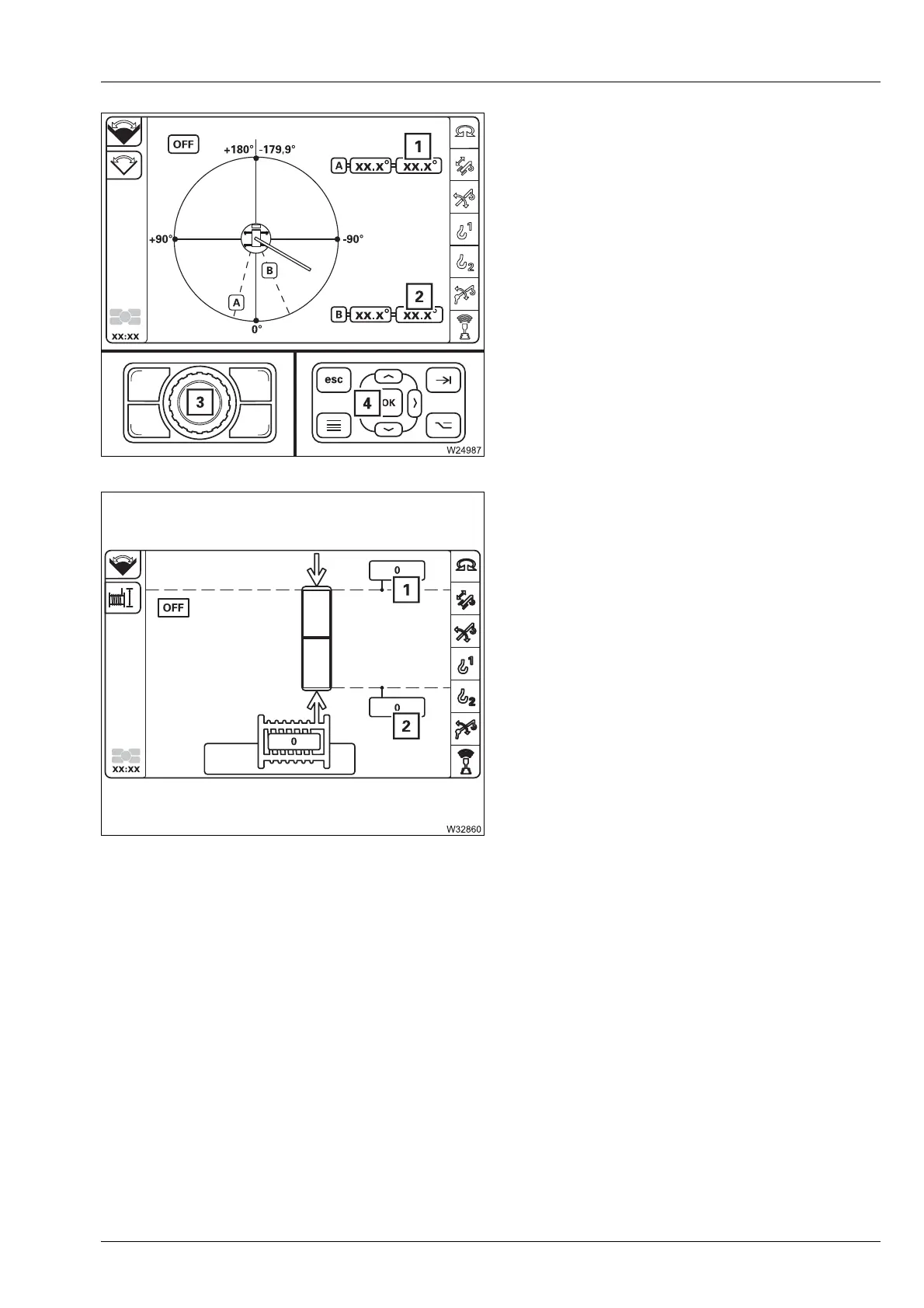

– For slewing angles
• Set the respective limit value and confirm
with button (3) or (4). The value is adopted.
– The symbol (1) for the slewing angle A –
symbol is red,
– The symbol (2) for the slewing angle B –
symbol is red.
Switch on monitoring;
à p. 10 - 142
– For the hoist rope travel
For hoist rope travel limitation the values (1)
and (2) cannot be entered manually.
