Operating elements for crane operation
8.2 Brief description of the operating elements
8 - 98 3 302 633 en Operating Instructions GMK5250L
27.09.2017
8.2.9 Outrigger – control units
à Extending/retracting outrigger beams, p. 11 - 45
à Extending/retracting supporting cylinders, p. 11 - 53
All directional information refers to the carrier;
à p. 8 - 83.
General
information
The function of the general elements is independent of the menu shown on
the
Outrigger display.
Searchlights
Light up when the ignition is on.

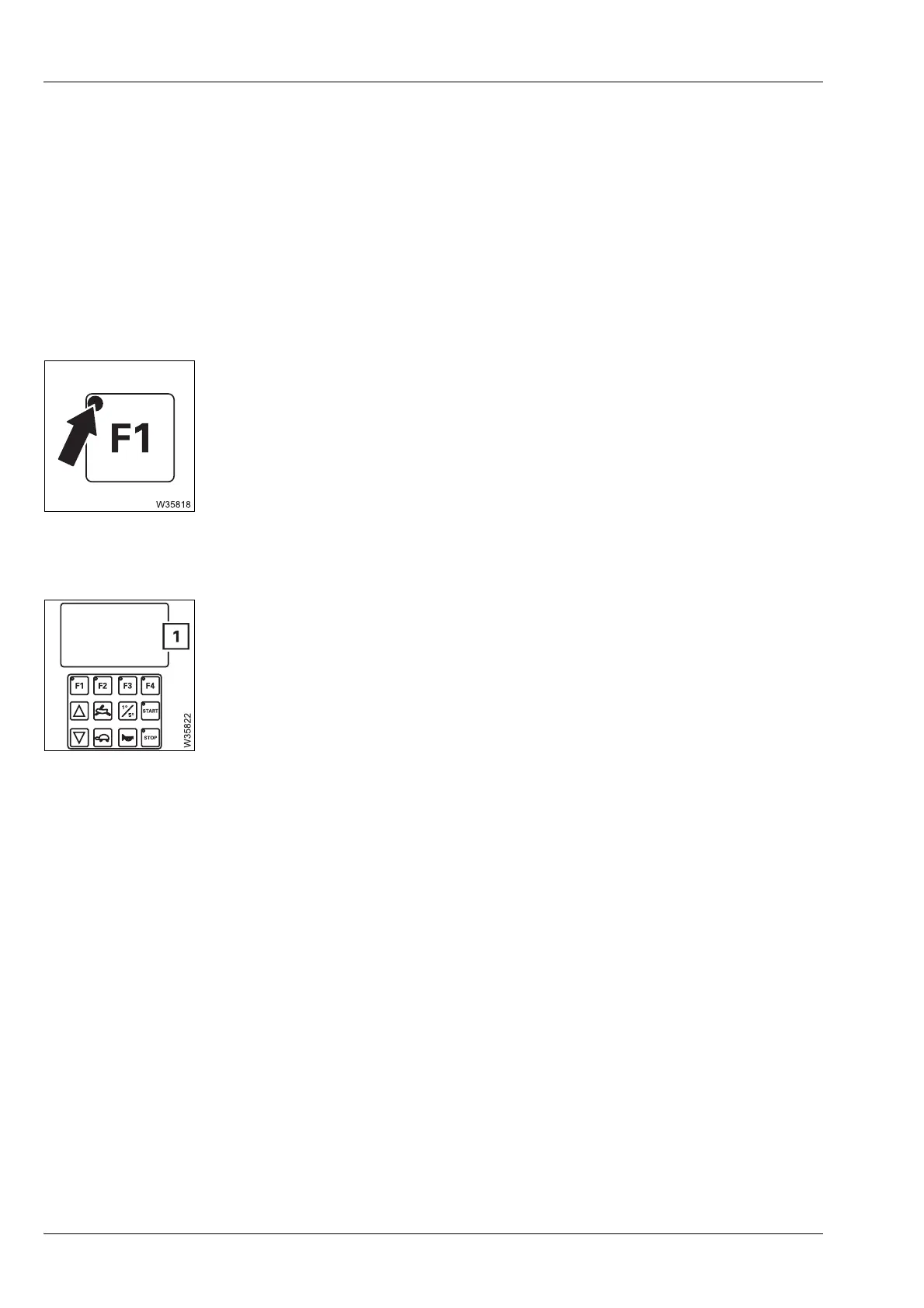

Outrigger display
– Display field lighting off: Ignition on and no button activated yet
or no button activated within the last
10 seconds
– Display field lighting on: Press any button
à p. 11 - 46
Display: To display the
outrigger and Raise axle menus. Some
of the buttons under the display can have different
functions depending on the menu displayed.
To Next Page
