Operating elements for crane operation
8.2 Brief description of the operating elements
Operating Instructions GMK5250L 3 302 633 en 8 - 105
27.09.2017

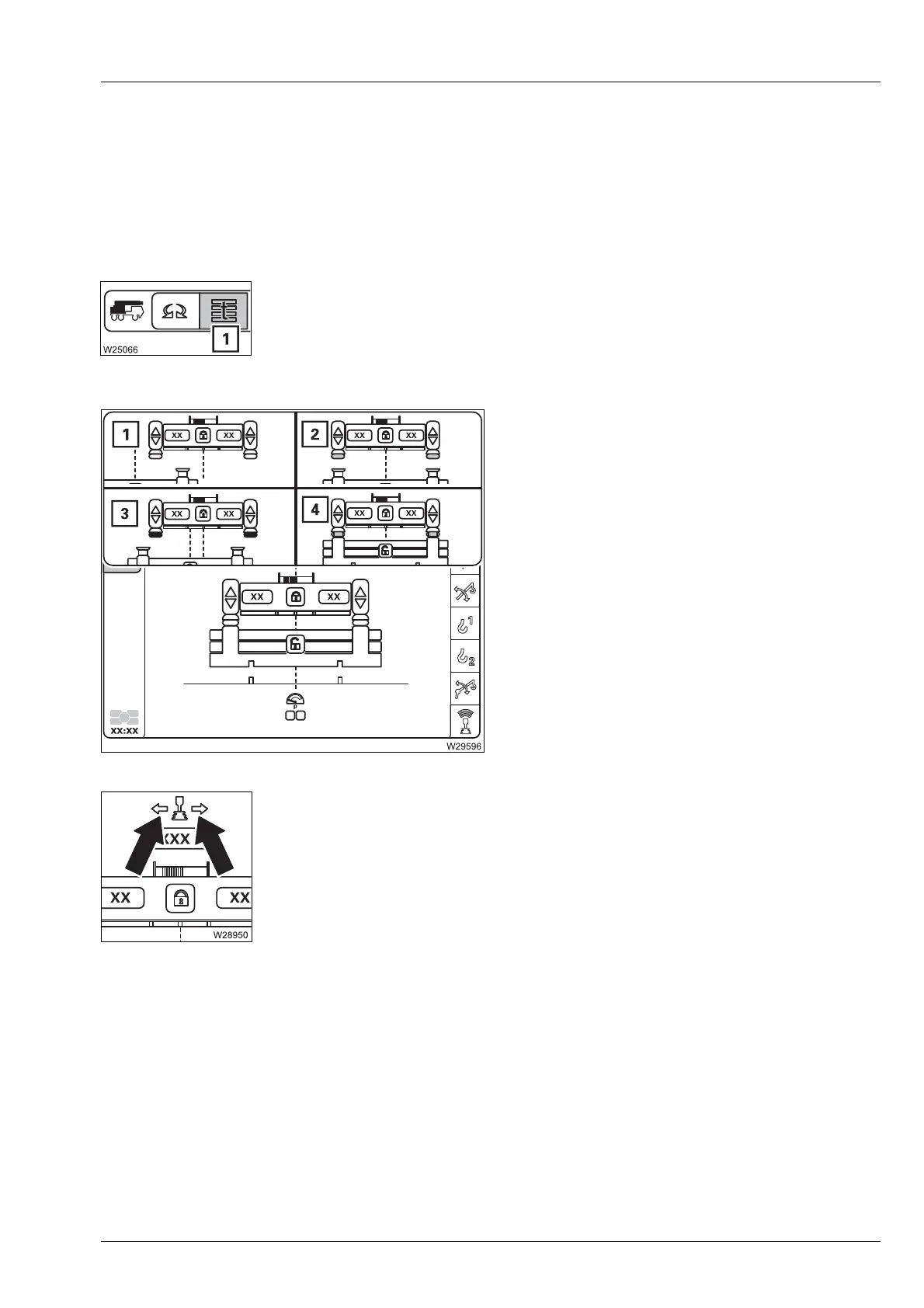

8.2.14 Counterweight menu
Counterweight
submenu
à Rigging/unrigging the counterweight, p. 11 - 67,
à Counterweight hoist unit, p. 11 - 85.
Rigging position display
In the rigging range, the following rigging
positions are displayed.
à p. 11 - 87
Display of slewing direction for automatic mode
Automatic mode is switched on.
s
– To open: Select and confirm symbol (1)
1 white – not in the rigging range
2 green – move the lifting cylinder position
3 red – intermediate position, lifting cylinder
movements blocked
4 green – lift/lower the counterweight posi-
tion (0° position)
– Arrow is
displayed:
Move control lever for slewing gear in direction of
arrow – automatic mode is executed
