Driving
5.3 Driving and parking off the truck crane
5 - 46 3 302 633 en Operating Instructions GMK5250L
27.09.2017

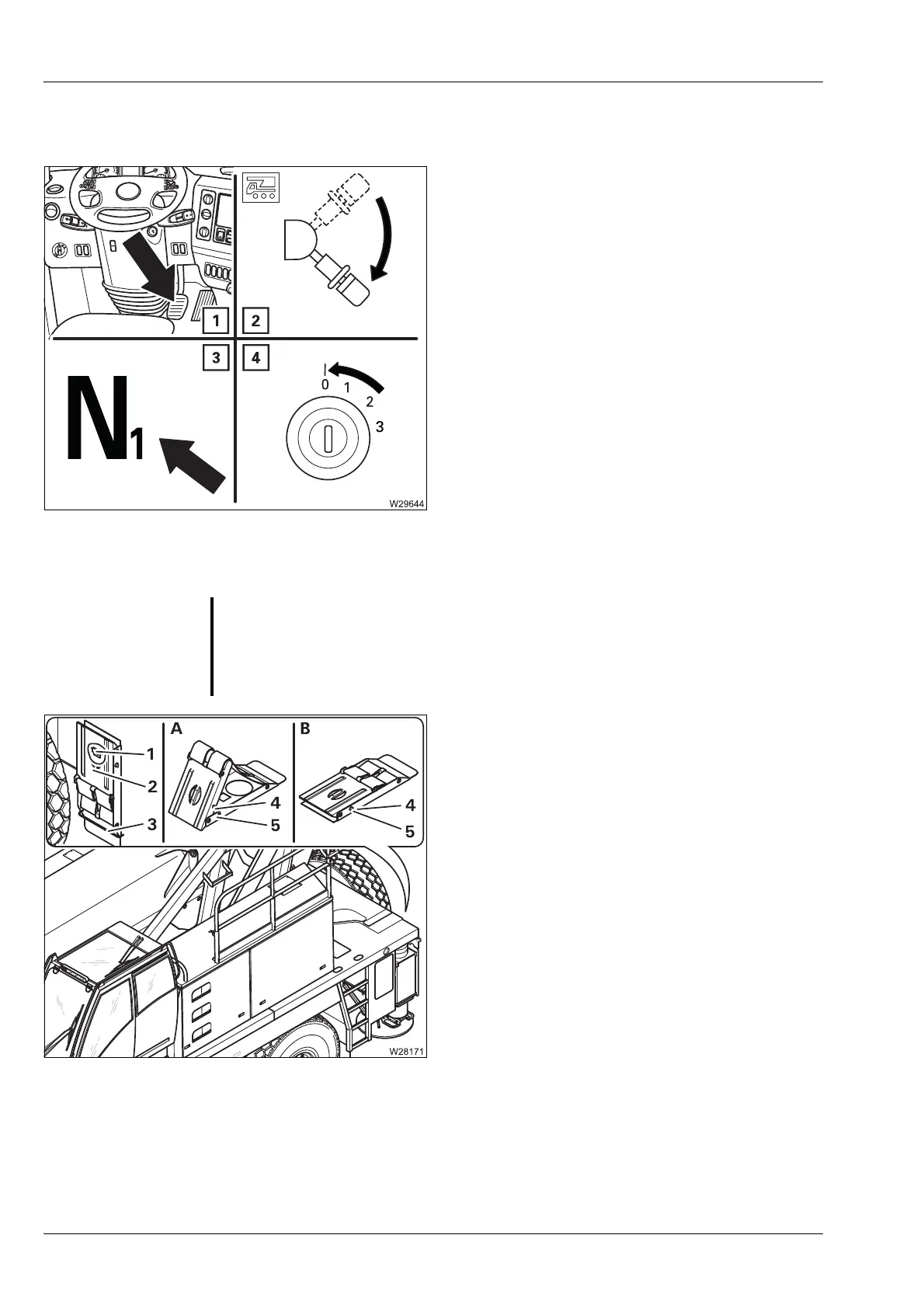

5.3.7 Switching the truck crane off
To switch the truck crane off, you must:
Secure it against
rolling away
The number of wheel chocks supplied varies according to country.
Transport at the rear of the carrier
• Push the chock (2) behind the bracket (3) and
hang it on the holder (1).
(A) – Folding out
• Push the locking bar (4) through the bore (5).
The chock unfolds by spring force.
(B) – Folding up
Push the chock together until the locking
bar (4) engages in the bore (5).
1. Stop the truck crane
2. Apply the parking brake
3. Switch to neutral position;
à p. 5 - 26
4. Turn off the engine;
à p. 4 - 21
G
Risk of accidents due to the truck crane moving unintentionally!
On uphill and downhill gradients secure the truck crane using wheel chocks
in addition to the parking brake.
