Driving modes and rigging for on-road driving
6.5 Installing/removing the outrigger beams
Operating Instructions GMK5250L 3 302 633 en 6 - 35
27.09.2017
6.5 Installing/removing the outrigger beams

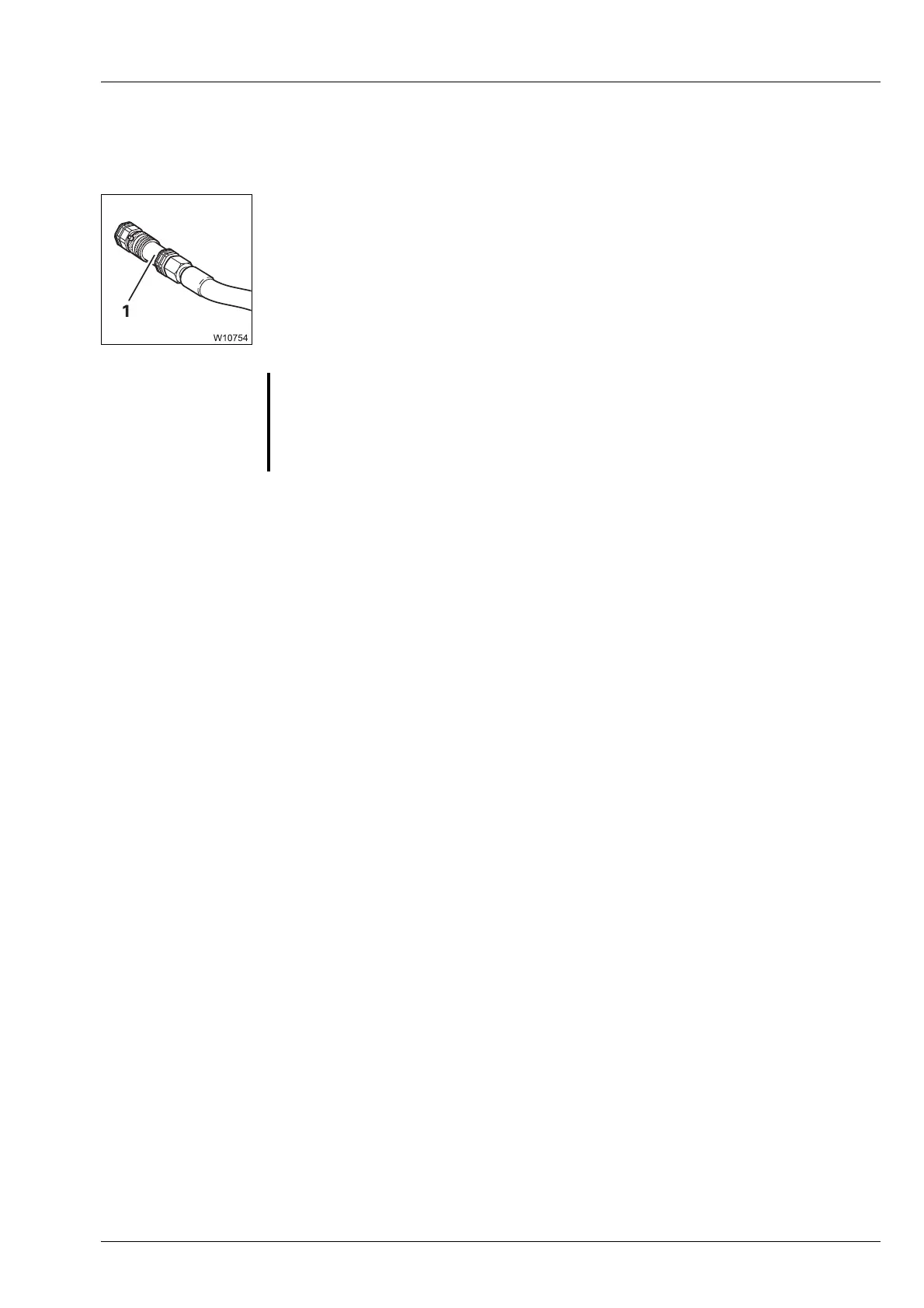

To rig the outrigger beams, the outriggers must be fitted with hydraulic
connections (1) which can be separated.
During rigging, each outrigger beam is removed and mounted as a com-
plete “package”, consisting of inner and outer outrigger beams, cylinders
and add-on parts.
You will require the following equipment with a sufficient load bearing
capacity:
– For the front outrigger beam – an auxiliary crane,
– For the rear outrigger beam – an auxiliary crane or
RCL programming with the outrigger span 5.287 m x 7.800 / 2.500 m for
rigging using the truck crane,
– Suitable lifting gear and guide ropes,
– A chain hoist,
– A separate vehicle.
Dimensions and weights of the outrigger beams;
à p. 1 - 10.
G
Risk of truck crane overturning if not properly supported!
Loads may only be lifted when the truck crane is supported by all the out-
riggers.
For this reason, always use an auxiliary crane to lift the outrigger beams.
