Rigging work
11.6 Slewing range – only with the Standard slewing range type
11 - 28 3 302 633 en Operating Instructions GMK5250L
27.09.2017

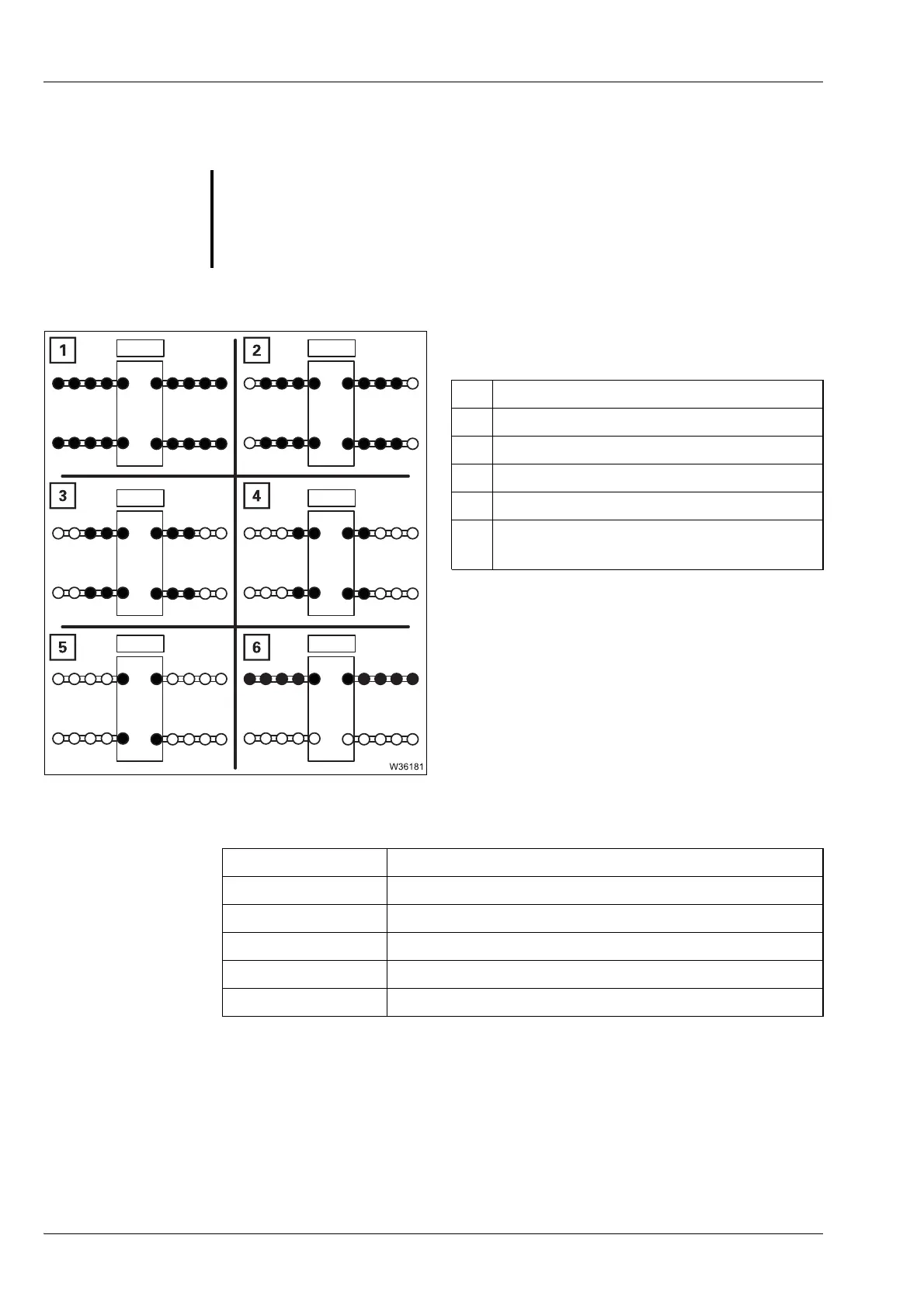

11.6.2 Enabled outrigger spans
The tables show the values for permissible
outrigger spans with overall widths (1) to (5).
The cover pages of the individual lifting capacity tables provide a brief
overview in percent.
G
Risk of overturning when slewing the superstructure!
With some outrigger spans, slewing is only permissible with certain
counterweight combinations and boom positions;
à Slewing with the
rigged counterweight
, p. 11 - 93.
1 8.950 x 7.800 m (29.4 x 25.6 ft)
2 8.950 x 6.854 m (29.4 x 22.4 ft)
3 8.950 x 5.910 m (29.4 x 19.4 ft)
4 8.950 x 4.310 m (29.4 x 14.2 ft)
5 8.950 x 2.710m (29.4 x 8.8 ft)
6 5.287 m x 7.800 / 2.500 m
(17.3 ft x 25.6 / 8.2 ft)
1)
1)
Special outrigger span (on wheels at the
rear), is additionally enabled with the appro-
priate RCL programming – for removing the
rear outrigger beams with the truck crane;
à p. 6 - 41.
Outrigger width Percent
1 100%
2 83%
3 66%
4 50%
5 0%
