Malfunctions in driving mode
7.6 Fuses
7 - 38 3 302 633 en Operating Instructions GMK5250L
27.09.2017
7.6.1 Fuses in the driver's cab

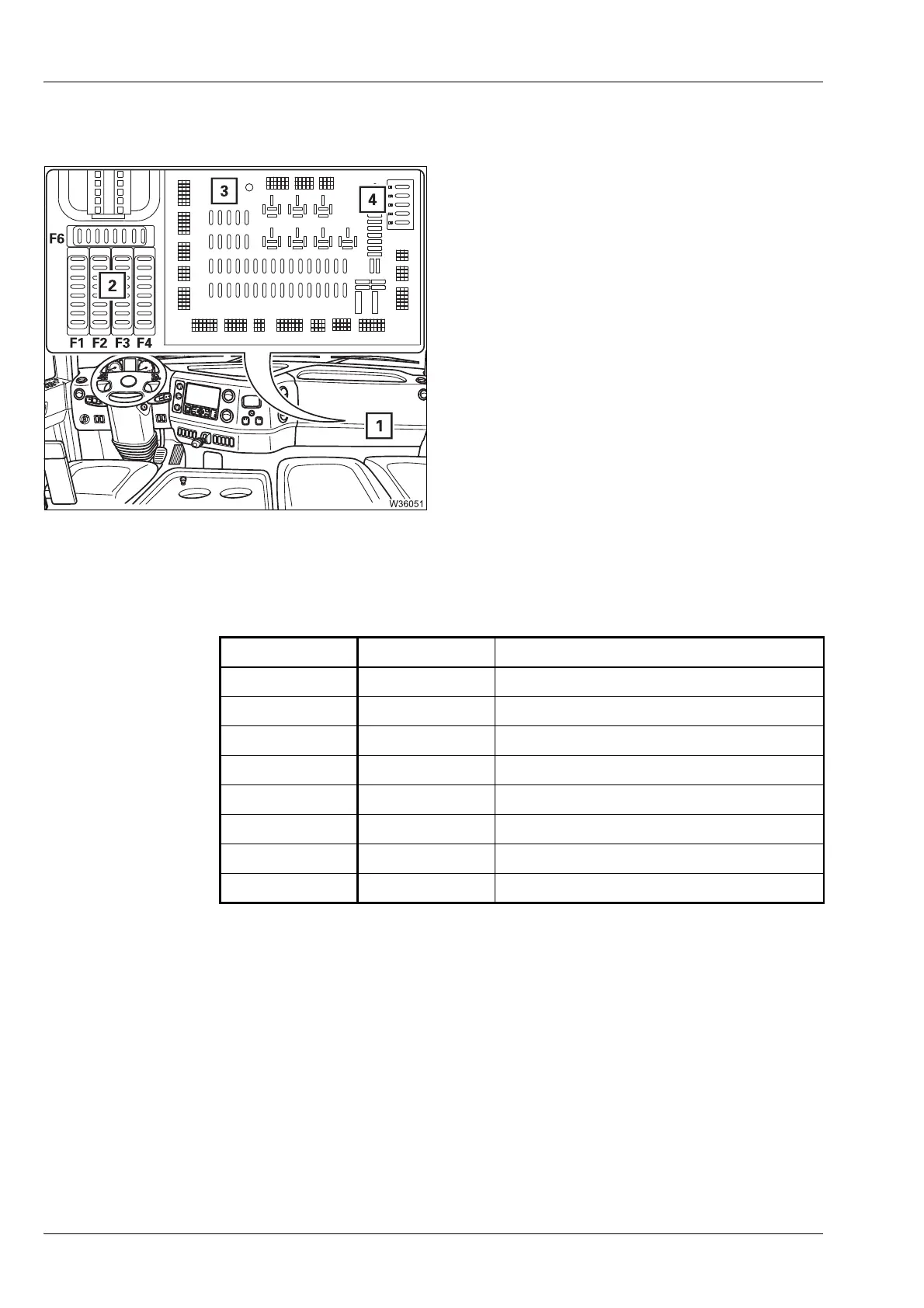

• Remove the cover (1).
The following sections show the designations
of the individual fuses, including their amper-
age and functions.
Group F1 The fuses are labelled with the numbers.
• Observe the instructions regarding fuse changes; à p. 7 - 37.
2 Fuse groups F1 to F4, F6
3 Other fuses
4 Reserve fuses
Designation Amperage (A) Function
F1/1 15 UB2 CCM 11
F1/2 15 UB1 CCM 11
F1/3 5 Hand-held control
F1/4 5 CCS control unit
F1/5 – Unassigned
F1/6 10 ABS trailer
F1/7 15 Auxiliary water heater
F1/8 15 Auxiliary air heater
