Crane operation
10.7 Working range limiter
10 - 132 3 302 633 en Operating Instructions GMK5250L
27.09.2017
10.7.1 Viewing current settings
On the RCL
display

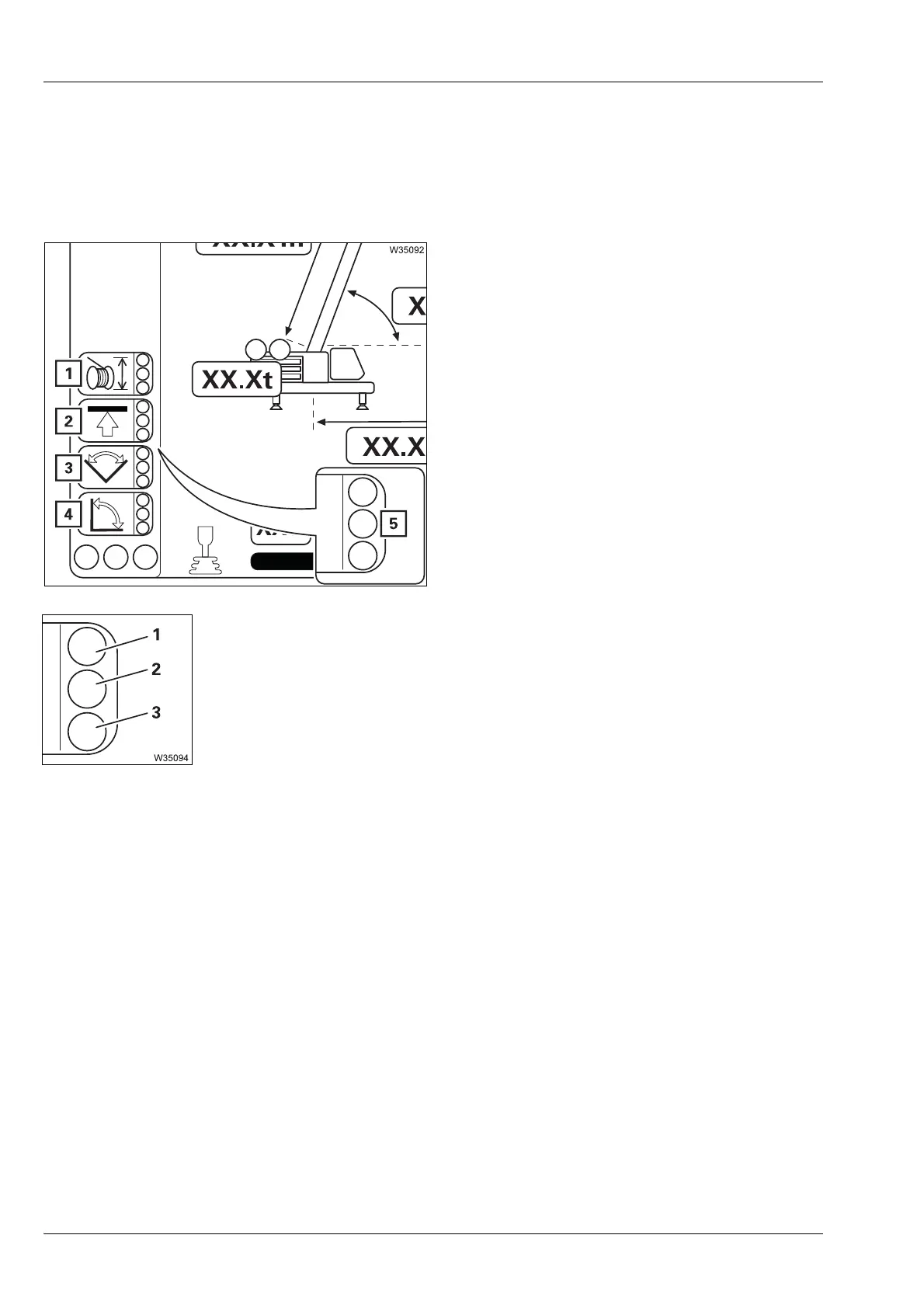

The displays show monitoring and speed limitations that are switched on.
Working range limiter displays
The corresponding symbol is shown when a
monitoring system is switched on.
The display shows (5) if the power unit speed
has been reduced.
There are three displays.
1 Hoist rope travel limitation monitoring
2 Overall height monitoring
3 Slewing angle monitoring
4 Working radius monitoring
1Red: Movement disabled
2 Yellow: Speed reduced
1)
3Green: Speed not reduced
1)
The maximum enabled power unit speed depends on the distance to
the limit value.
