Driving modes and rigging for on-road driving
6.4 Rigging the main boom
6 - 18 3 302 633 en Operating Instructions GMK5250L
27.09.2017
6.4.2 CHECKLIST: installing the main boom
H
This checklist is not a complete operating manual. There are accompanying
instructions, which are indicated by cross-references.
Observe the warnings and safety instructions specified there!
Prerequisites The truck crane is supported by an outrigger span of at least 8.950 x 2.710 m
(29.4 x 8.8 ft).

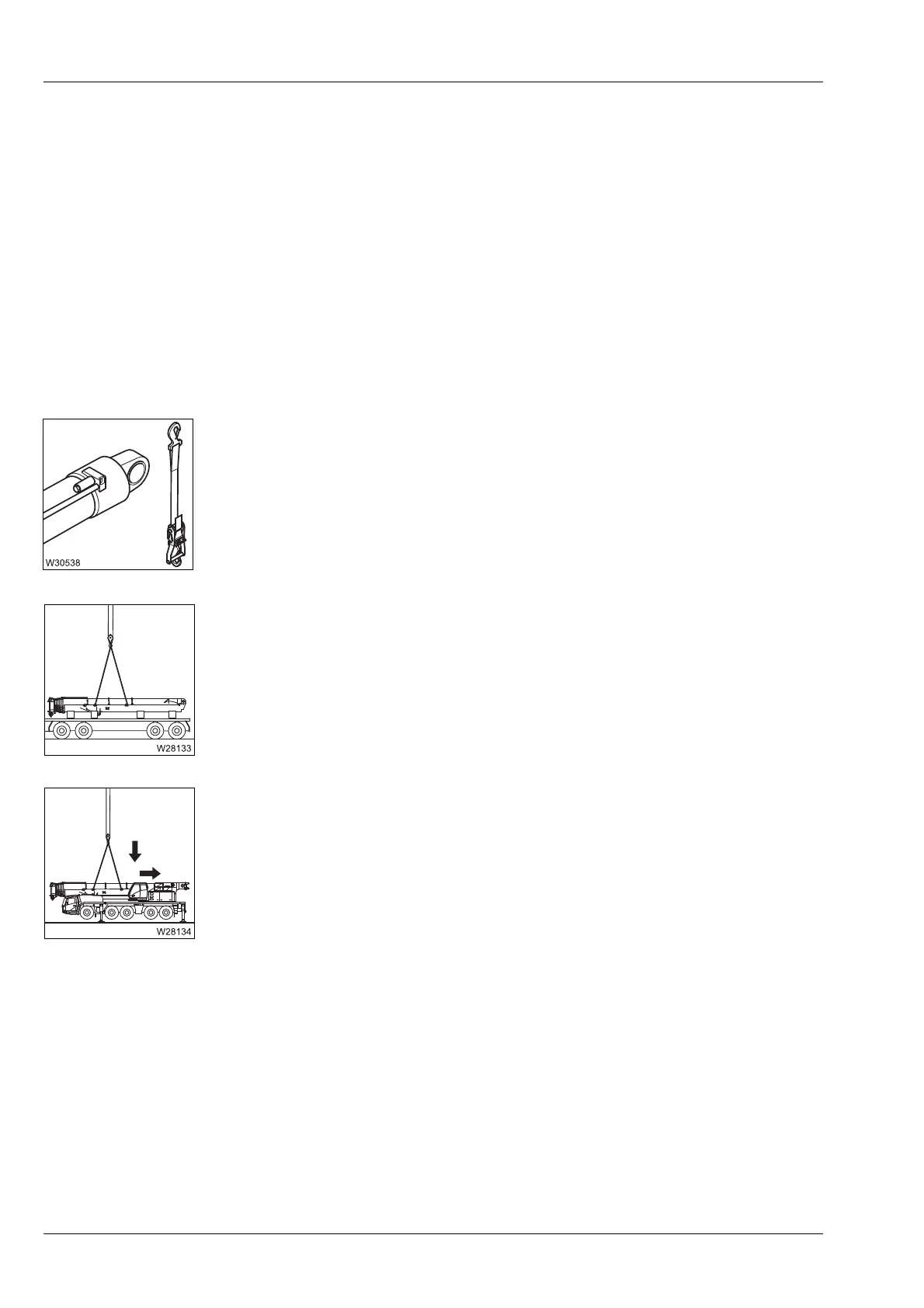

Checklist
1. Remove the tightening belt from the derricking cylinder.
2. Sling the main boom to an auxiliary crane;
à p. 6 - 20.
3. Lift the main boom into the turntable and align the connecting points;
à p. 6 - 32.
