Driving modes and rigging for on-road driving
6.4 Rigging the main boom
Operating Instructions GMK5250L 3 302 633 en 6 - 17
27.09.2017

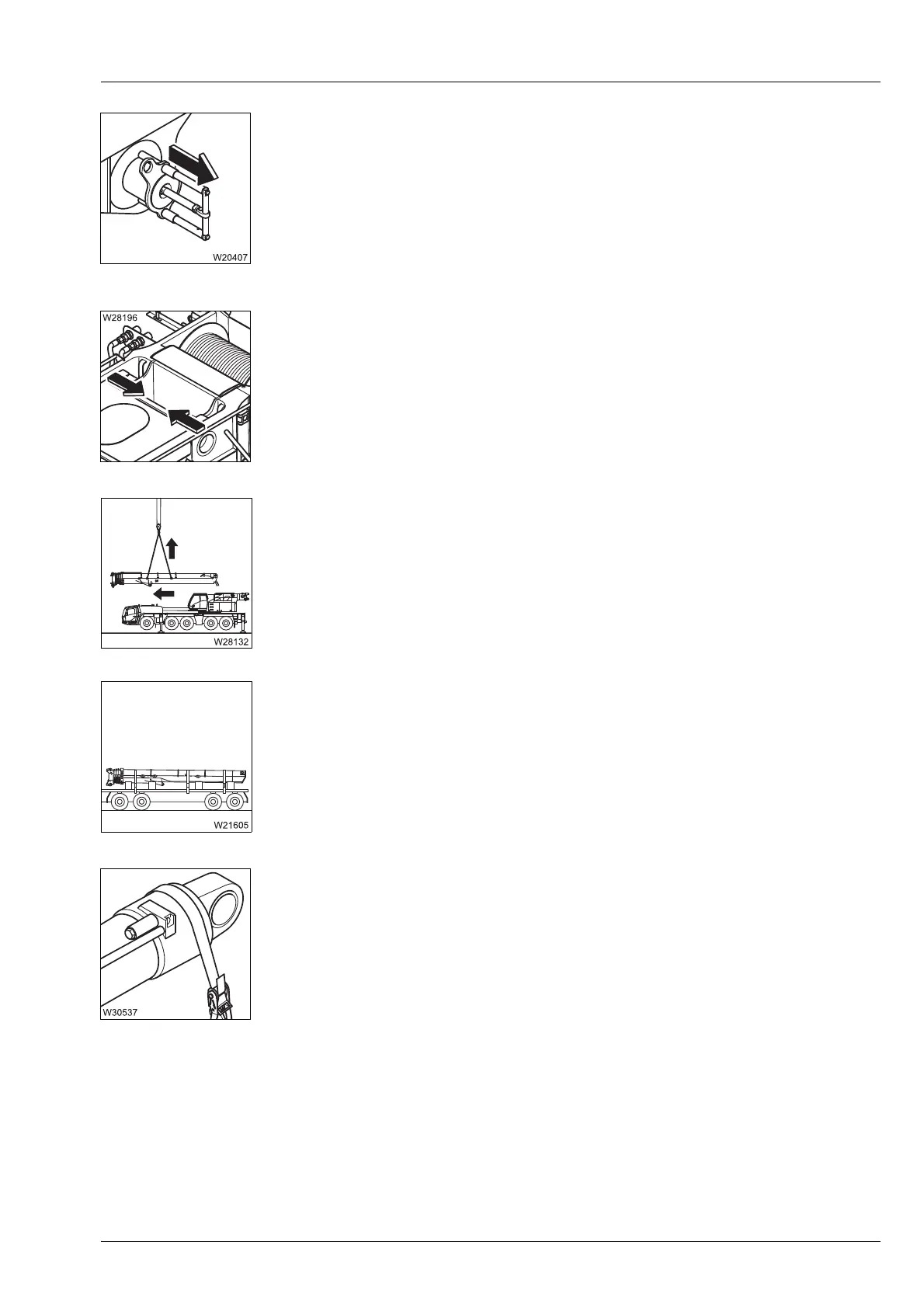

3. On the derricking cylinder head axle:
– Take the load off of the head pin
– Release the head pin
– Pull the head pins out;
à p. 6 - 23.
4. On the boom pivot pin:
– Open the hydraulic circuit,
– unlock the pulling device,
– retract the pivot pin;
à p. 6 - 26.
5. Raise the main boom from the turntable;
à p. 6 - 31.
6. Put the main boom on the separate vehicle and secure for transport;
à p. 6 - 33.
7. Secure the derricking cylinder with a tightening belt.
