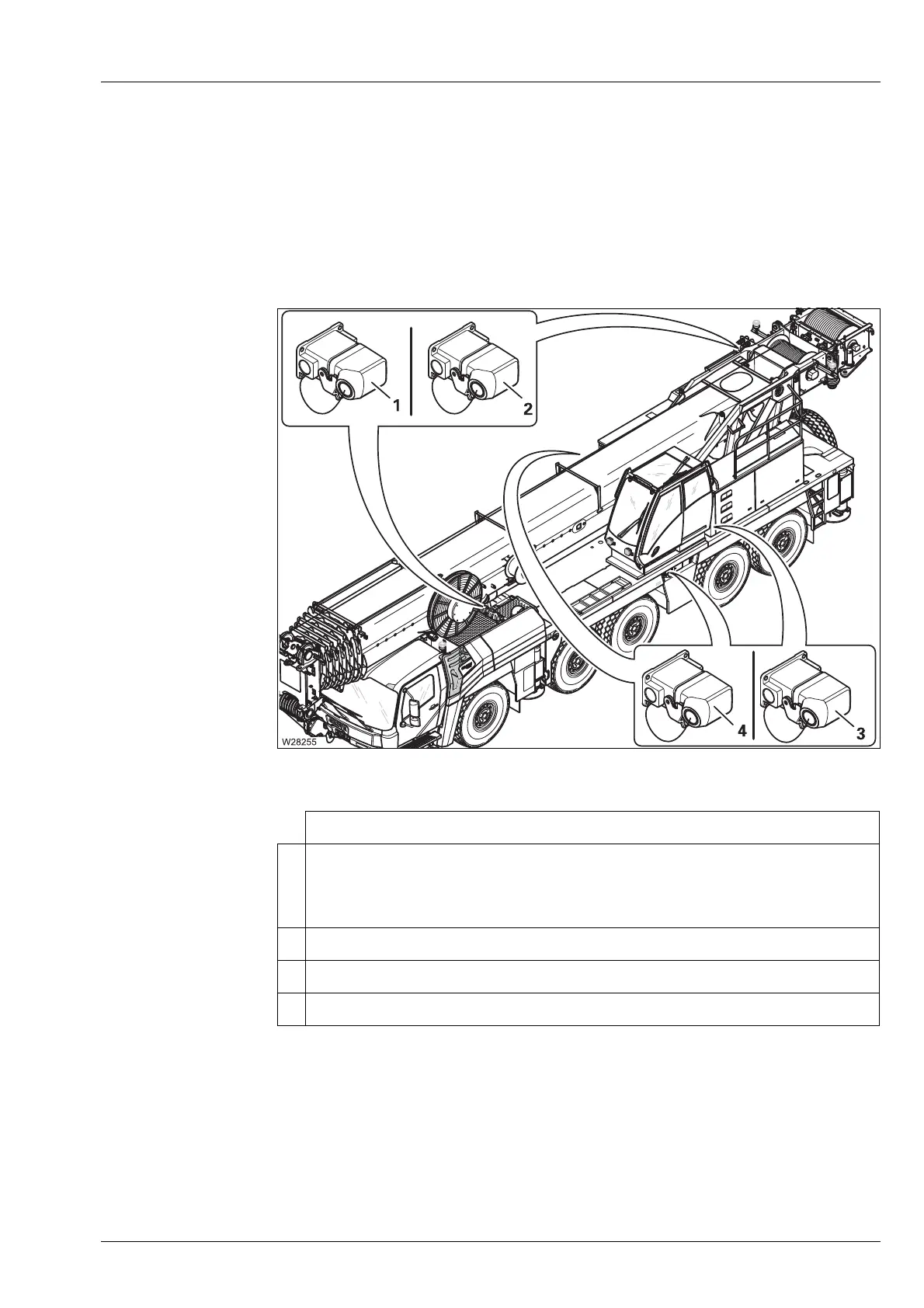

8.2.26 Hand-held control
Sockets for
hand-held control
The following applies to all sockets:
The hand-held control is only active when it is connected to the sockets (1)
to (4).
s
– Pull plug: Engine off – ignition off
– Insert plug: Ignition on
à p. 11 - 21
Released operations
1 – Emergency operation for crane movements (except for telescoping
mechanism)
– Derrick lattice extension
1)
2 – Rig auxiliary hoist
1)
3 – Emergency operation for crane movements
4 – Operation of the outriggers
1)
Additional equipment
