11.8.9 Levelling the truck crane on outriggers
You must level the truck crane before crane operation and possibly correct
its horizontal alignment during crane operation.
Inclination
indicators
After switching on the ignition, various inclination indicators display the
current alignment.
On the
CCS display
Switching over the measuring range
You can change the measuring range
between 1° and 5°.
• Press the button (2) once.
The current measuring range (1) is
displayed.
The measuring range is automatically
switched in the
Outrigger menu and the
Monitoring menu.

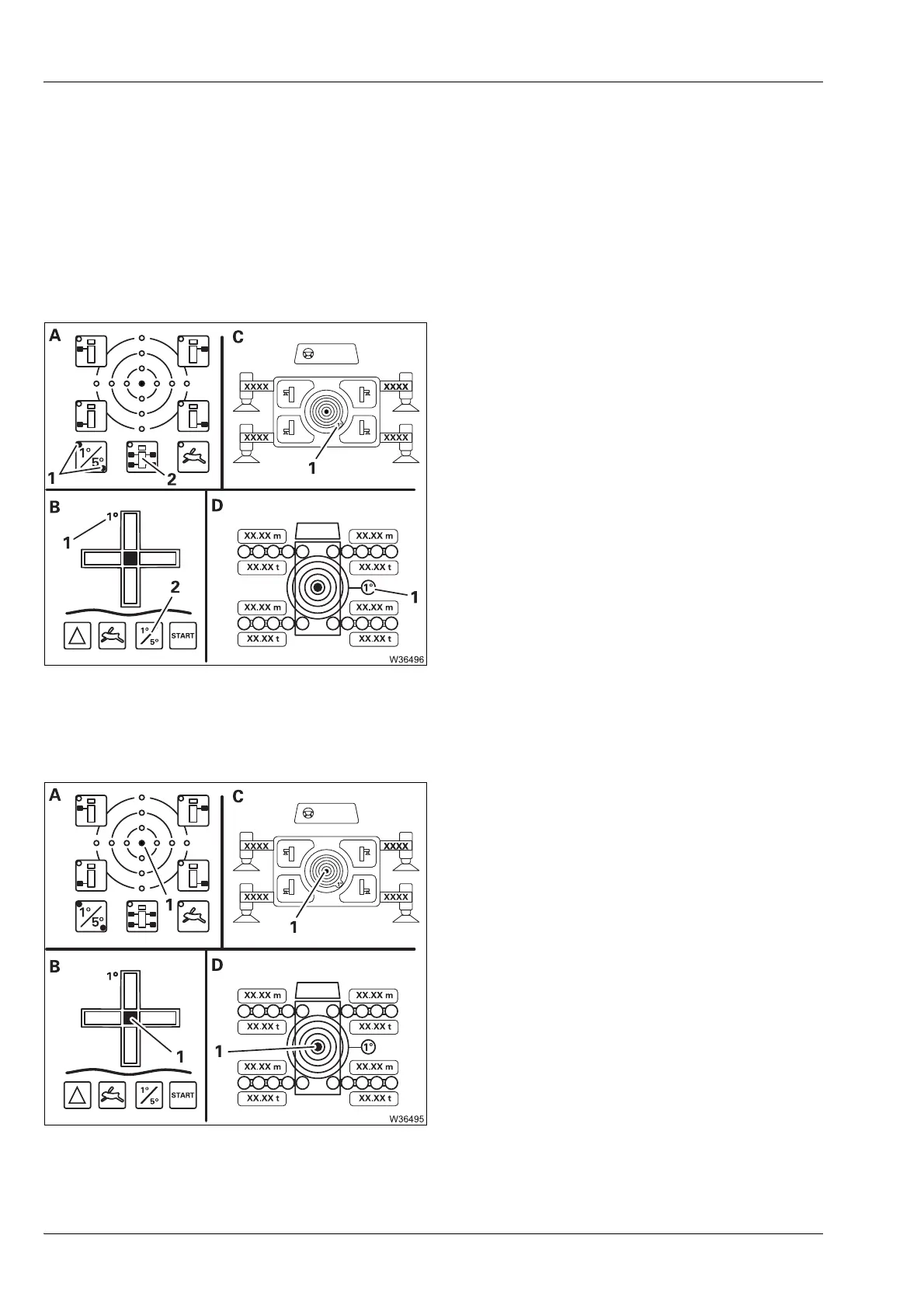

Read the display
Only the lamp (1) at the centre is on if the truck
crane is level.
The other lamps show the sides of the truck
crane which are higher.
A On the hand-held control
B On the
outrigger control units
C In the
Outrigger menu
D In the
Monitoring menu
