Rigging work
11.8 Outrigger operation
Operating Instructions GMK5250L 3 302 633 en 11 - 57
27.09.2017
Extend

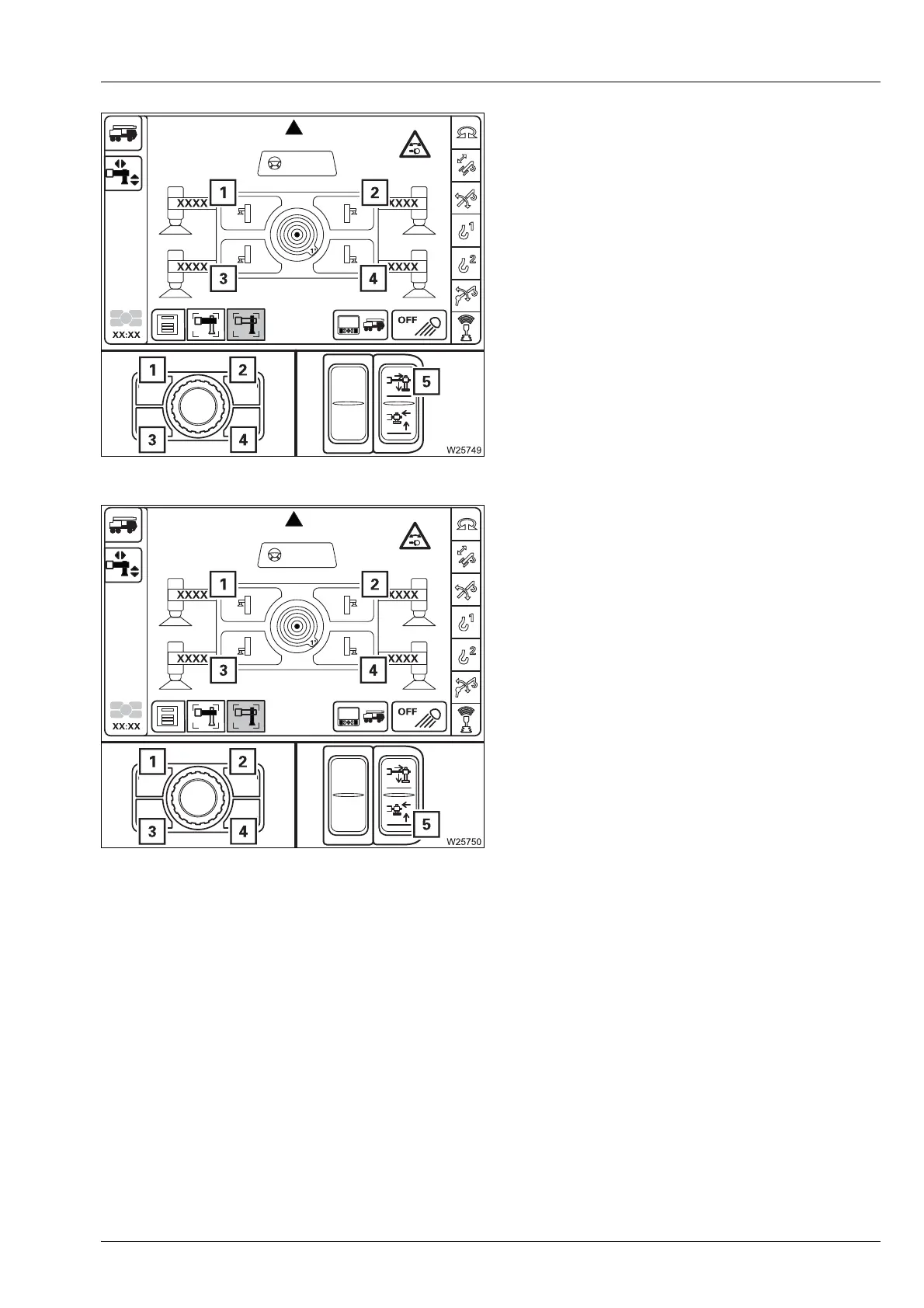

• Press the button for the desired outrigger
cylinder.
• Press the button (5) in at the top – the
selected outrigger beam extends.
Retract
• Press the button for the desired outrigger
cylinder.
• Press the button (5) in at the bottom – the
selected outrigger beam retracts.
1 Front left
2 Front right
3 Rear left
4 Rear right
1 Front left
2 Front right
3 Rear left
4 Rear right
