6.6 Rigging the auxiliary hoist
Operating Instructions GMK5250L 3 302 633 en 6 - 57
27.09.2017

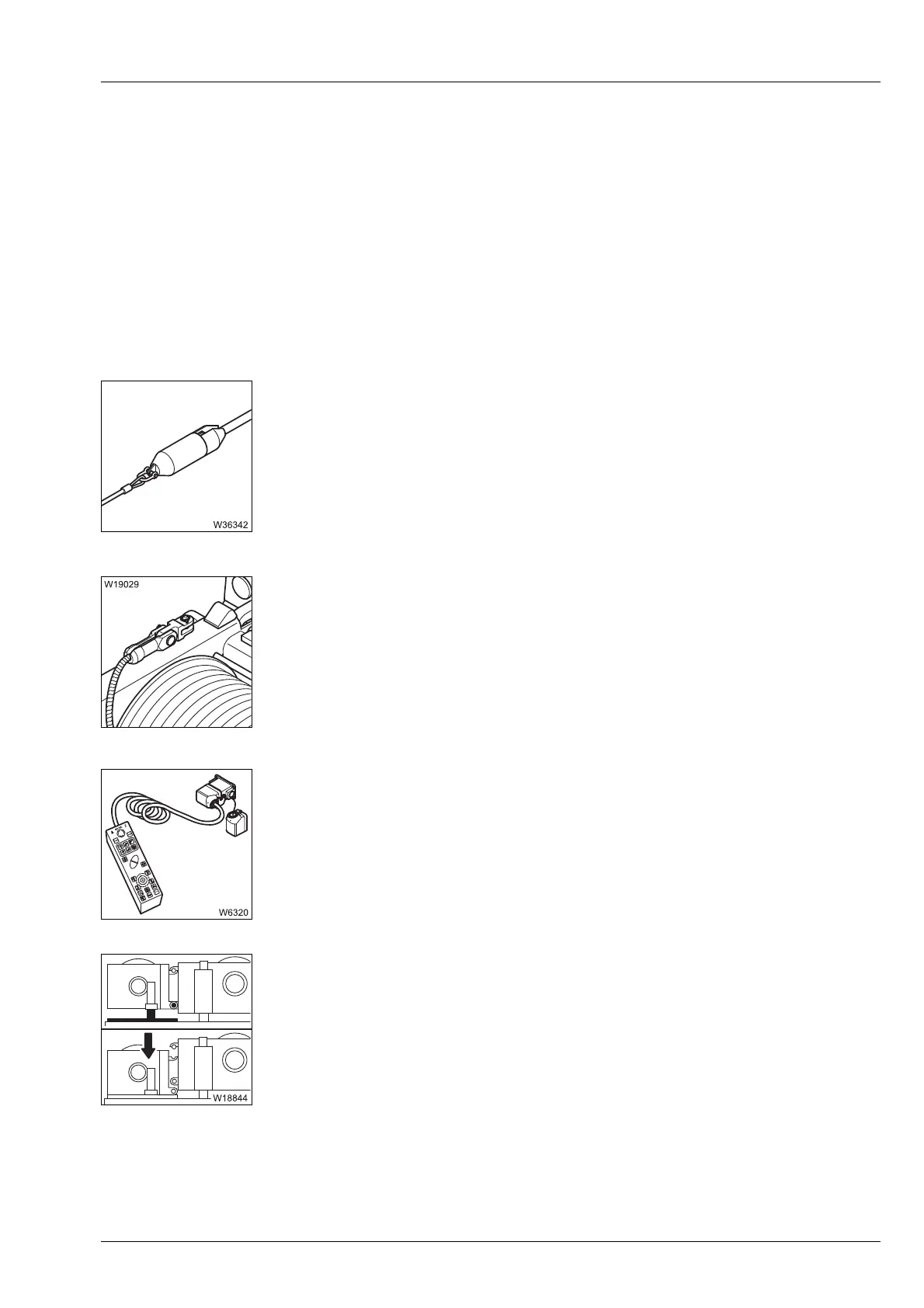

6.6.2 CHECKLIST: Removing the auxiliary hoist
Prerequisites – The truck crane is supported with the required outrigger span as specified
in the
lifting capacity table; Ã p. 11 - 28.
– The superstructure is slewed to the rear.
– The 50 t counterweight combination is resting on the counterweight
platform;
à p. 11 - 76,
– The hoist rope is unreeved.
1. Wind on the auxiliary hoist rope, using the rigging aid if necessary;
à p. 6 - 69.
2. – Secure the hoist rope;
à p. 6 - 66.
3. Connect the hand-held control on the back right at the turntable;
à Connecting/disconnecting the hand-held control, p. 11 - 21.
4. Removing the connection to the turntable:
– Lower the lifting frame;
à p. 6 - 65.
– Remove the connection to the turntable;
à p. 6 - 63.
– Lower the auxiliary hoist;
à p. 6 - 65.
