Driving modes and rigging for on-road driving
6.6 Rigging the auxiliary hoist
6 - 56 3 302 633 en Operating Instructions GMK5250L
27.09.2017

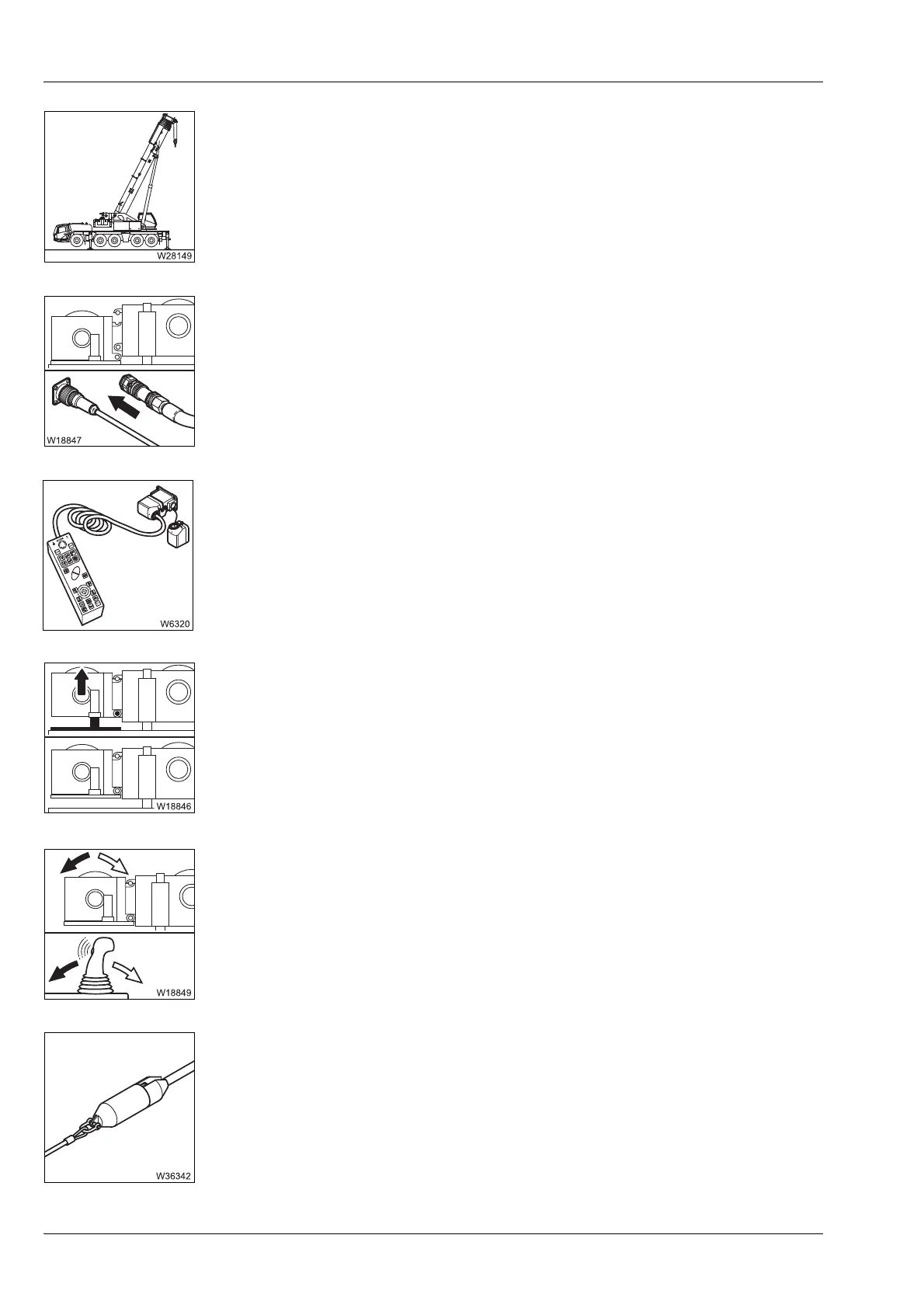

4. Slew the superstructure to the 0° to the rear position;
à Slewing with the rigged counterweight, p. 11 - 93,
à Current slewing angle display, p. 10 - 50.
5. – Establish the hydraulic connections;
à p. 6 - 61.
– Make the electrical connection;
à p. 6 - 62.
6. Connect the hand-held control on the back right at the turntable;
à Connecting/disconnecting the hand-held control, p. 11 - 21.
7. Creating the connection to the turntable:
– Lifting the auxiliary hoist;
à p. 6 - 60.
– Establishing the connection to the turntable;
à p. 6 - 63.
– Lift the lifting frame;
à p. 6 - 63.
8. Check that the auxiliary hoist is functioning properly;
à p. 6 - 68.
9. – Fit the hoist rope, using the rigging aid if necessary;
à p. 6 - 69.
– Reeve the hoist rope;
à p. 11 - 104.
