Crane operation
10.3 MAXbase slewing range type
Operating Instructions GMK5250L 3 302 633 en 10 - 23
27.09.2017
10.3 MAXbase slewing range type
This slewing range type is available in addition to the Standard slewing
range type;
à Standard slewing range type, p. 10 - 21. You must decide
between the two slewing range types when entering the rigging mode.
Lifting capacity tables with different, variable outrigger spans are available
for the
MAXbase slewing range type. These additional lifting capacity tables
are supplied in digital form with the truck crane and can be shown as a
diagram on the display in the crane cab.

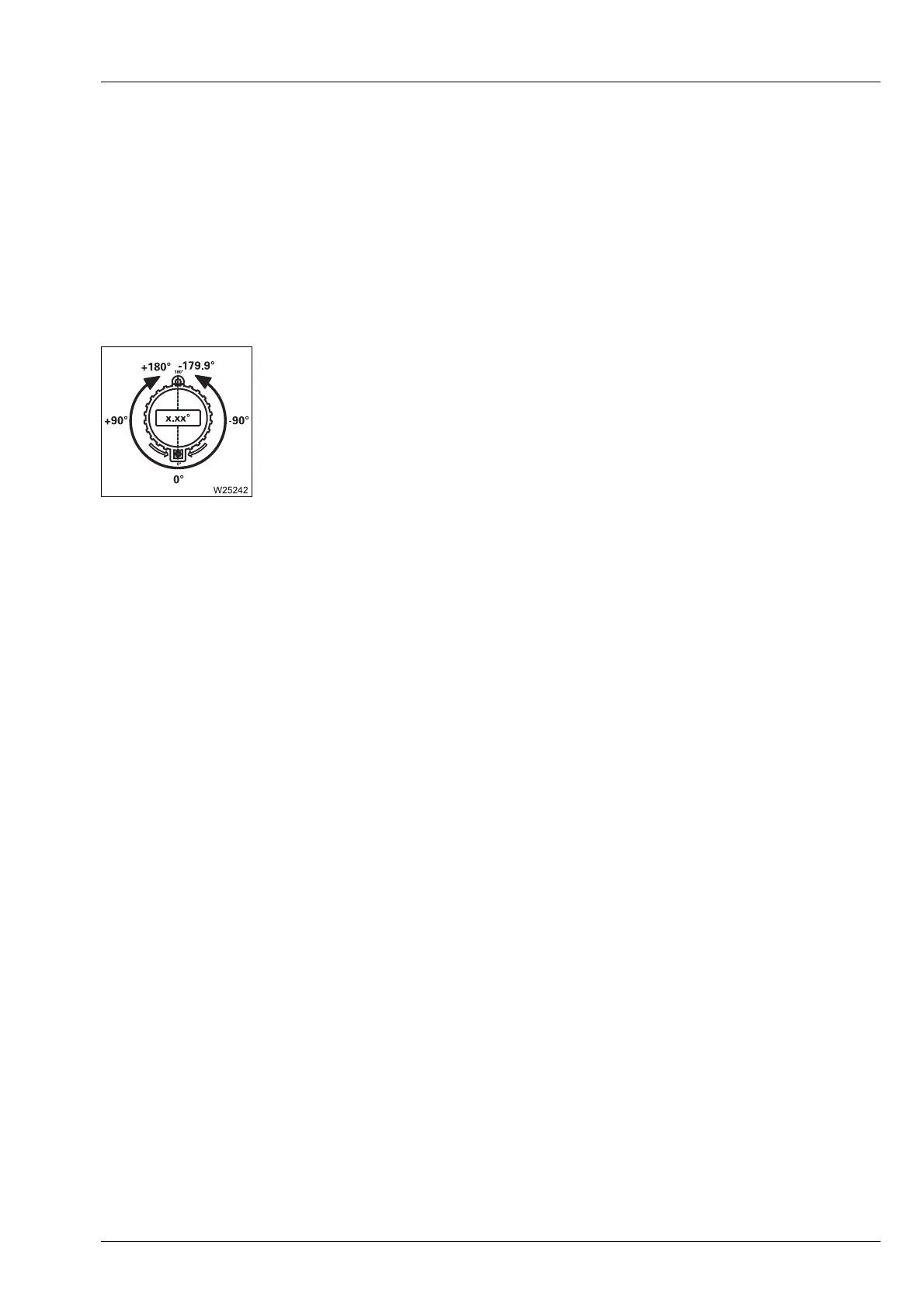

The designation of the slewing angle always relates to the starting point 0°
to the rear. A full turn out of this working position is divided into two semi-
circles.
– When slewing clockwise the slewing angle is displayed as a positive
value (0° to +180.0°).
– When slewing anticlockwise the slewing angle is displayed as a negative
value (0° to -179.9°).
