Operating elements for crane operation
8.2 Brief description of the operating elements
8 - 150 3 302 633 en Operating Instructions GMK5250L
27.09.2017
8.2.28 Diagnostics
The diagnostics connections may only be operated by the service personnel.

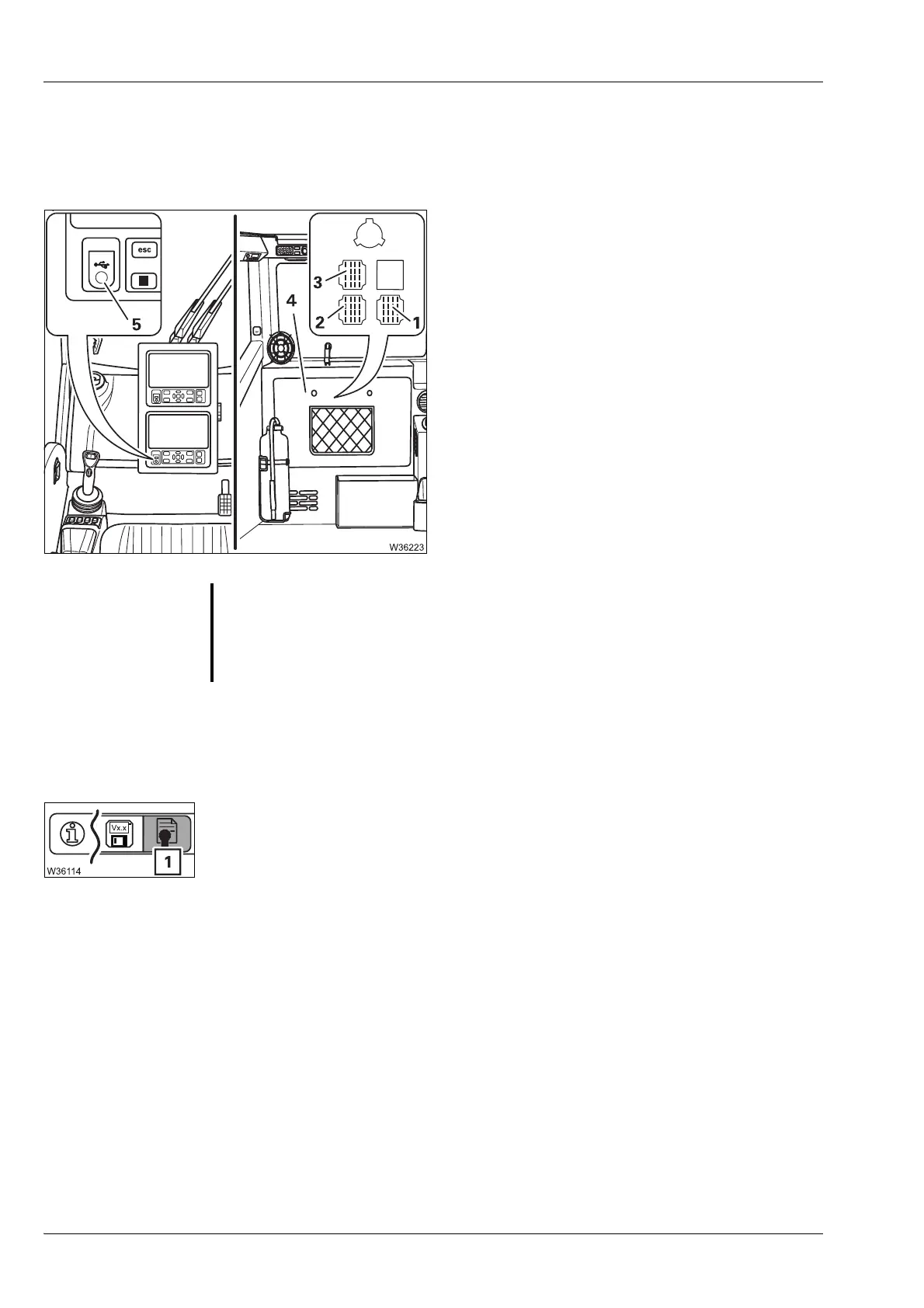

The following connections are below the
cover (4)
.
Additional diagnostic and service connections
are present on the
CCS control unit (5).
• Do not connect external devices, e.g. a
mobile phone, to these connections!
8.2.29 Other
Disclaimer menu
1 CCS diagnostics –
(serial interface)
2 CCS diagnostics – CAN bus
3 RCL diagnostics
S
Risk of damage to the crane control system!
Do not connect external devices to the diagnostic connections. This
prevents severe malfunctions in the crane control system.
– To open: Select and confirm symbol (1). The warranty waiver text is
shown on the display.
