Operating elements for crane operation
8.2 Brief description of the operating elements
Operating Instructions GMK5250L 3 302 633 en 8 - 149
27.09.2017

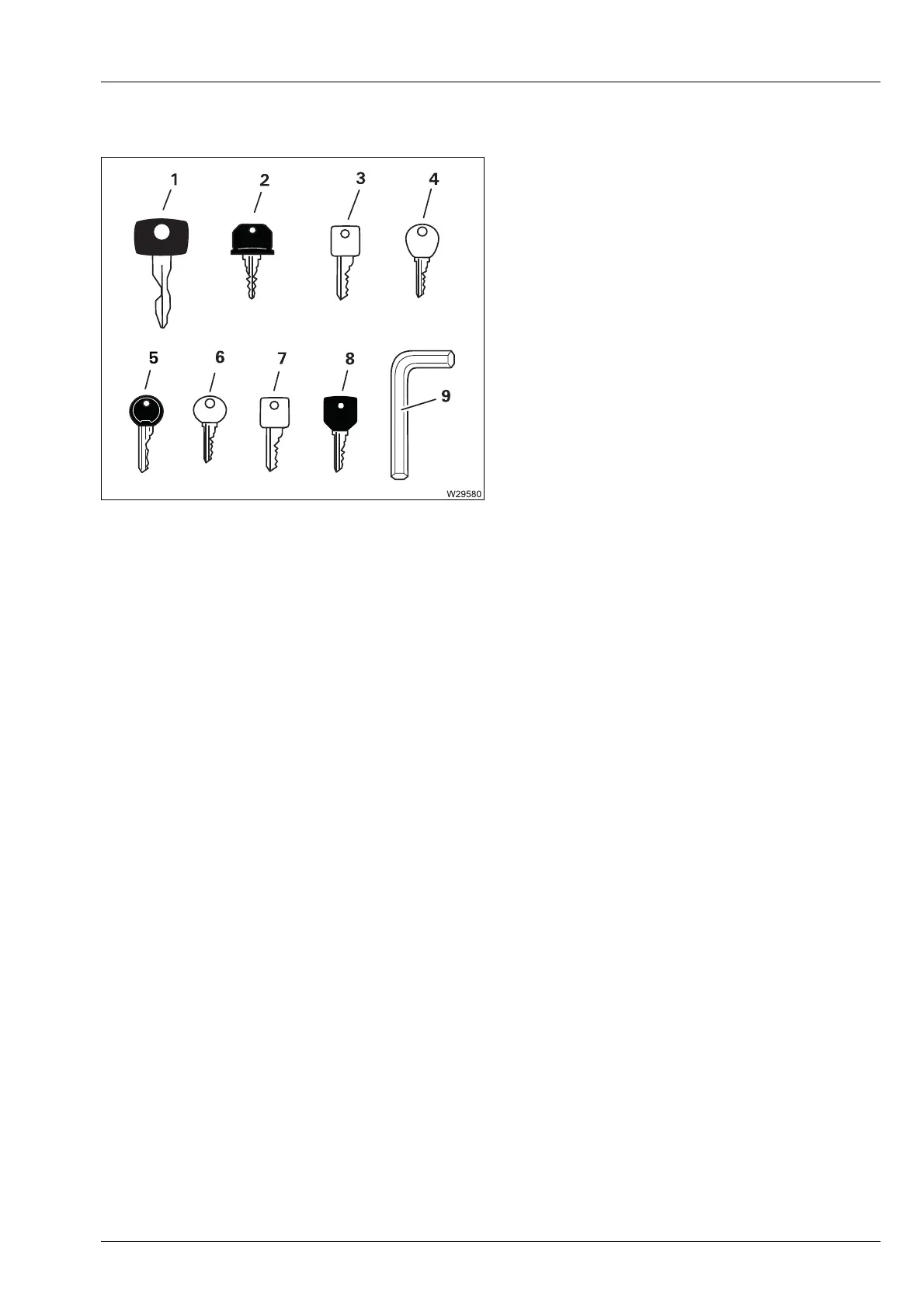

Keys Different keys are supplied.
1 Crane cab door lock
2 Crane cab ignition lock
3 Storage compartment
1)
4 Control units for outriggers
1)
5 Windscreen washing system reservoir
6 Boom floating position lock
1)
7 Slewing gear freewheel lock
1)
8 Key-operated override switch
9 Covers
1)
Additional equipment
