Operating elements for crane operation
8.2 Brief description of the operating elements
8 - 148 3 302 633 en Operating Instructions GMK5250L
27.09.2017

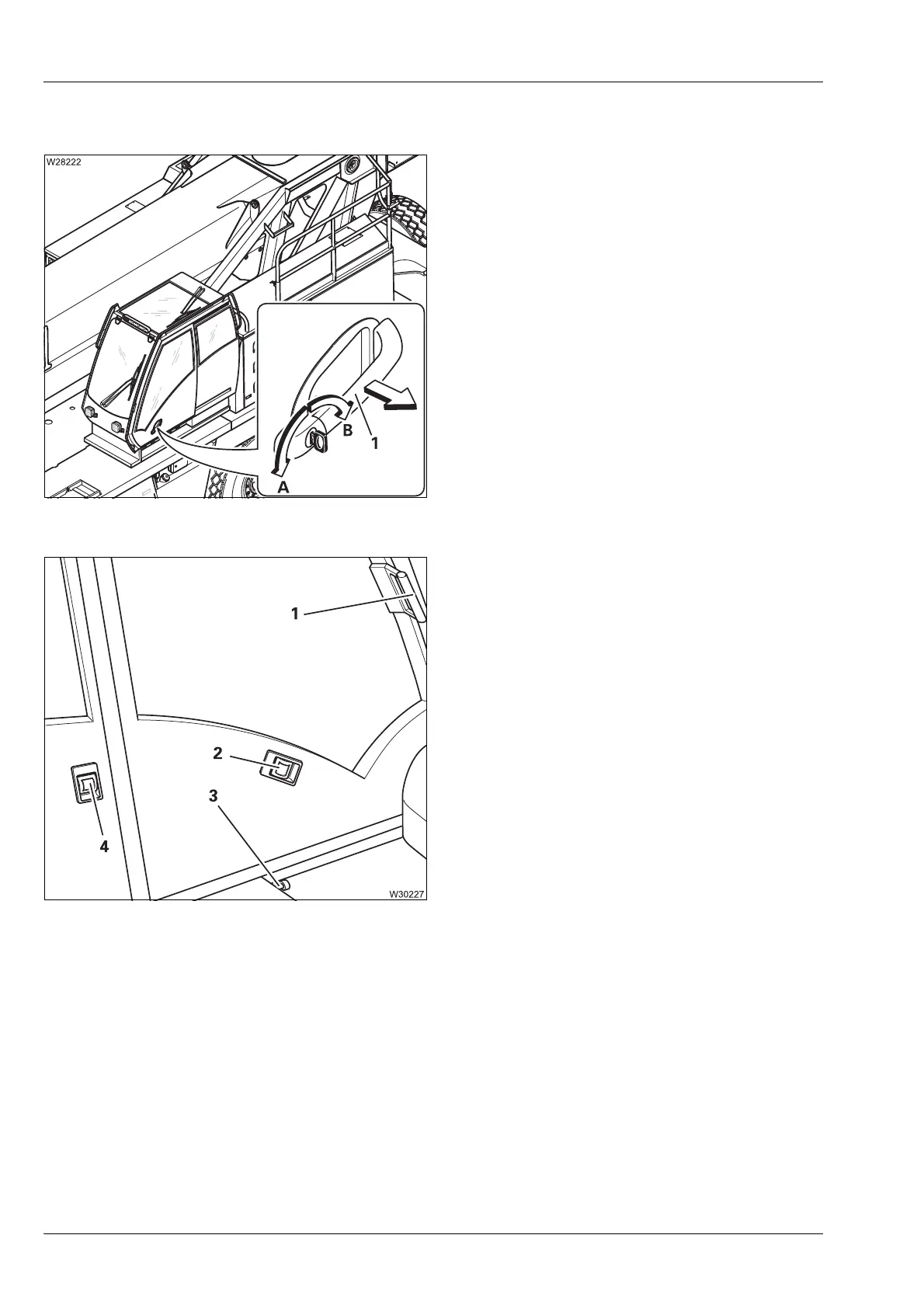

Crane cab door
From outside
Unlocking
• Turn the key in direction A.
Locking
• Turn the key in direction B.
Open/close
• Pull the handle (1).
• Slide the door.
From inside
–Closing
Pull unlocking lever (3) or (4) (depending on
the equipment), push door forwards by
handle (1) – engages.
Locking from inside not possible.
– Opening
Pull unlocking lever (2), push door back by
handle (1) – latches.
