Operating elements for crane operation
8.2 Brief description of the operating elements
Operating Instructions GMK5250L 3 302 633 en 8 - 117
27.09.2017

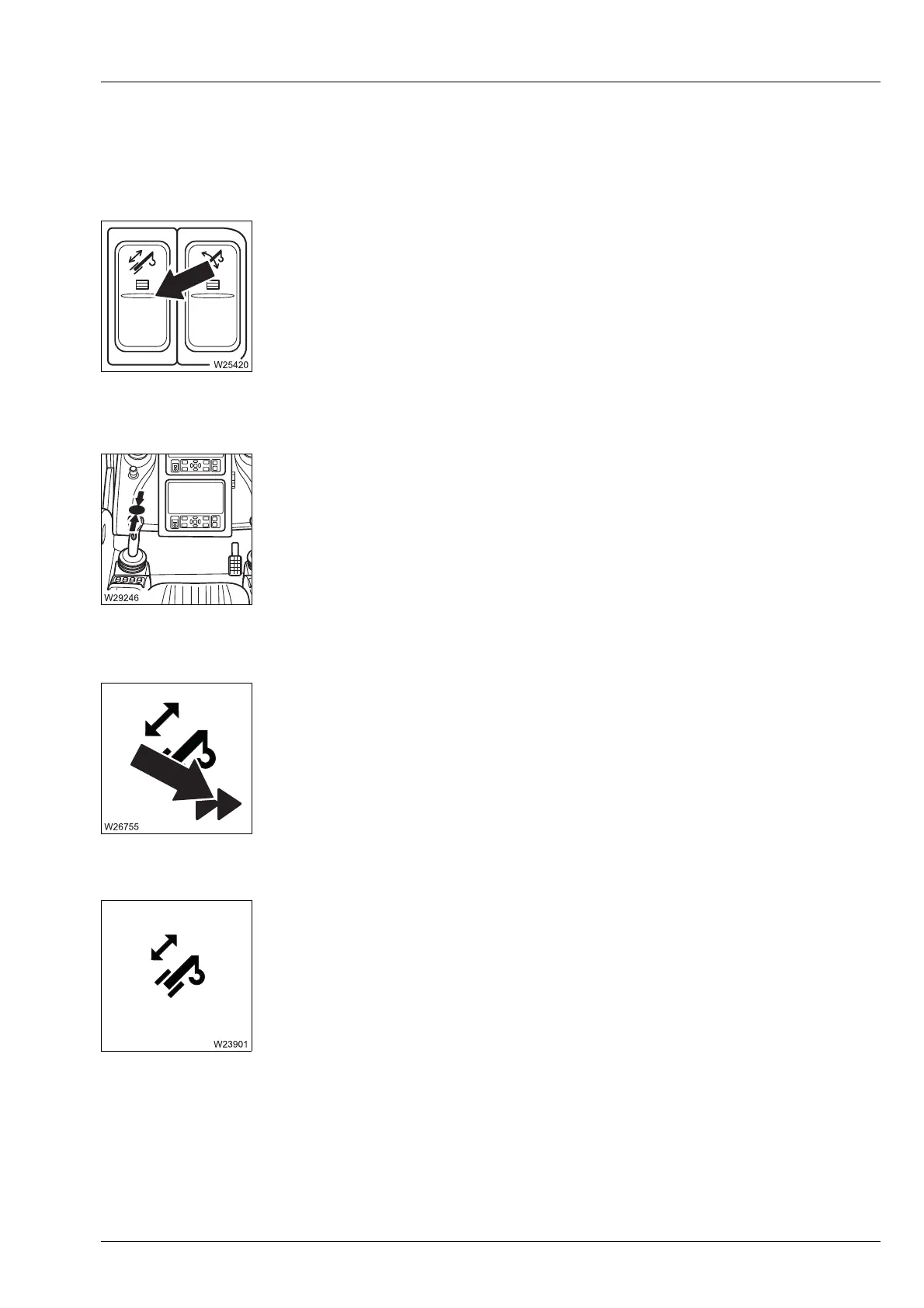

8.2.19 Telescoping mechanism
Control panels à Telescoping mechanism, p. 10 - 89.
Telescoping mechanism on/off
There is a lamp in the button.
Left control lever
Control lever configuration – version 1
CCS display
Telescoping mechanism high-speed mode inspection
Power units display
s
– Press once: – Lamp bright – telescoping mechanism on,
Power units with the same control lever configuration
off
– Lamp dim – telescoping mechanism off
à p. 10 - 97
– Back: Retracting
–Forward: Extending
à p. 10 - 97
–On: High-speed mode on
– Off: High-speed mode off
à p. 10 - 113
– Green: Telescoping mechanism on
–Red: Telescoping mechanism off
