Operating elements for crane operation
8.2 Brief description of the operating elements
8 - 118 3 302 633 en Operating Instructions GMK5250L
27.09.2017

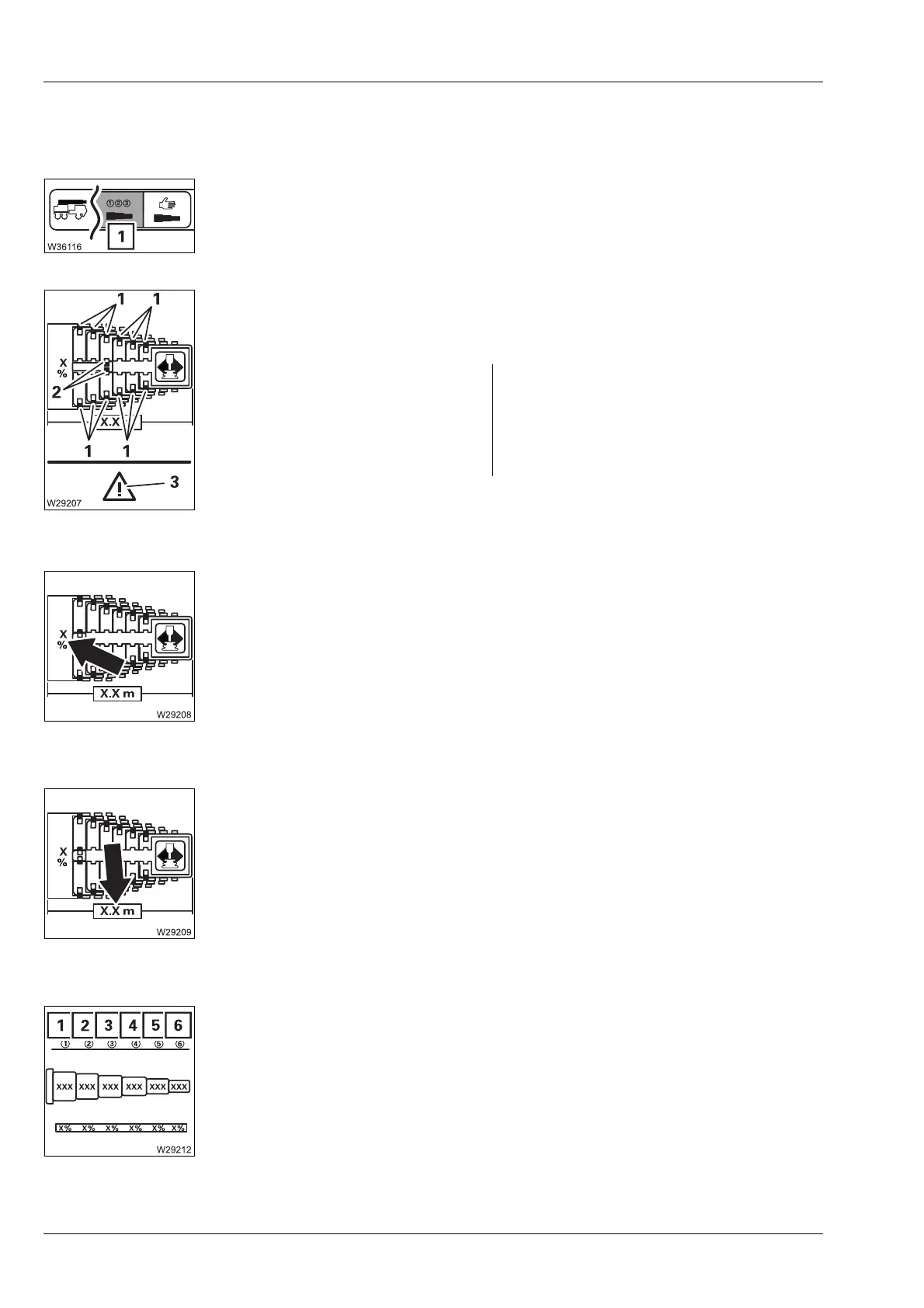

Telescoping semi-
automation menu
Telescope diagram display
Current relation of the telescopic sections to each other – section of top
view.
Telescoping cylinder length display
Main boom length display
Telescopic sections display
To open: Select symbol (1) and confirm – menu is opened
Locking pin Display 1 and 2
1 On the telescopic section – Green: Locked
2 On the telescoping cylinder –Yellow: Intermediate position
3 Error –Red: Unlocked
à p. 10 - 101
–Display: Current extended length of the telescoping cylinder
– Unit of
measurement:
Displayed depending on setting, mm (millimetres) or
percent (%)
à p. 10 - 110
–Display: Current extended length of the main boom
– Unit of
measurement:
Displayed depending on setting, m (meters) or
ft (feet)
à p. 10 - 110
1 - 6 Display for telescopic sections 1 to 6
