Operating elements for crane operation
8.2 Brief description of the operating elements
Operating Instructions GMK5250L 3 302 633 en 8 - 119
27.09.2017

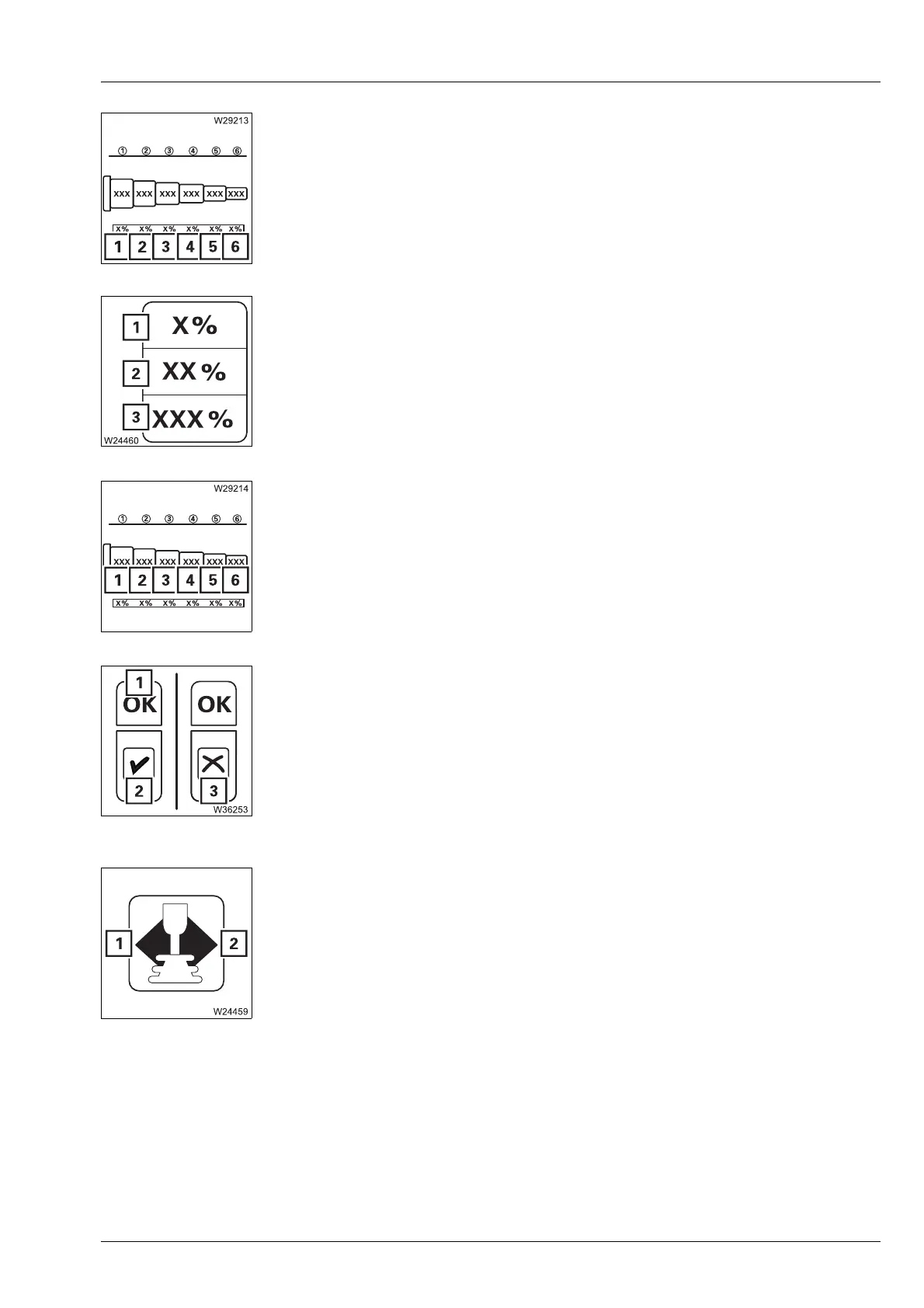

Current telescope status display
Extended length of the telescopic sections in percentage
Pre-selection for all telescopic sections
Pre-selection individual telescopic sections
Confirm pre-selection
Teleautomation direction display
s
1 - 6 Display for telescopic sections 1 to 6
1 Pre-selection telescoping 0%
2 Pre-selection telescoping 50%
3 Pre-selection telescoping 100%
1 - 6 Display for telescopic sections 1 to 6
1 Confirm pre-selected telescoping
2 Telescoping permitted display
3 Telescoping not permitted display
à p. 10 - 110
1 Start telescoping full automation with
Retract
2 Start telescoping full automation with Extend
à p. 10 - 110
