Operating elements for crane operation
8.1 Overview of the operating elements
8 - 12 3 302 633 en Operating Instructions GMK5250L
27.09.2017

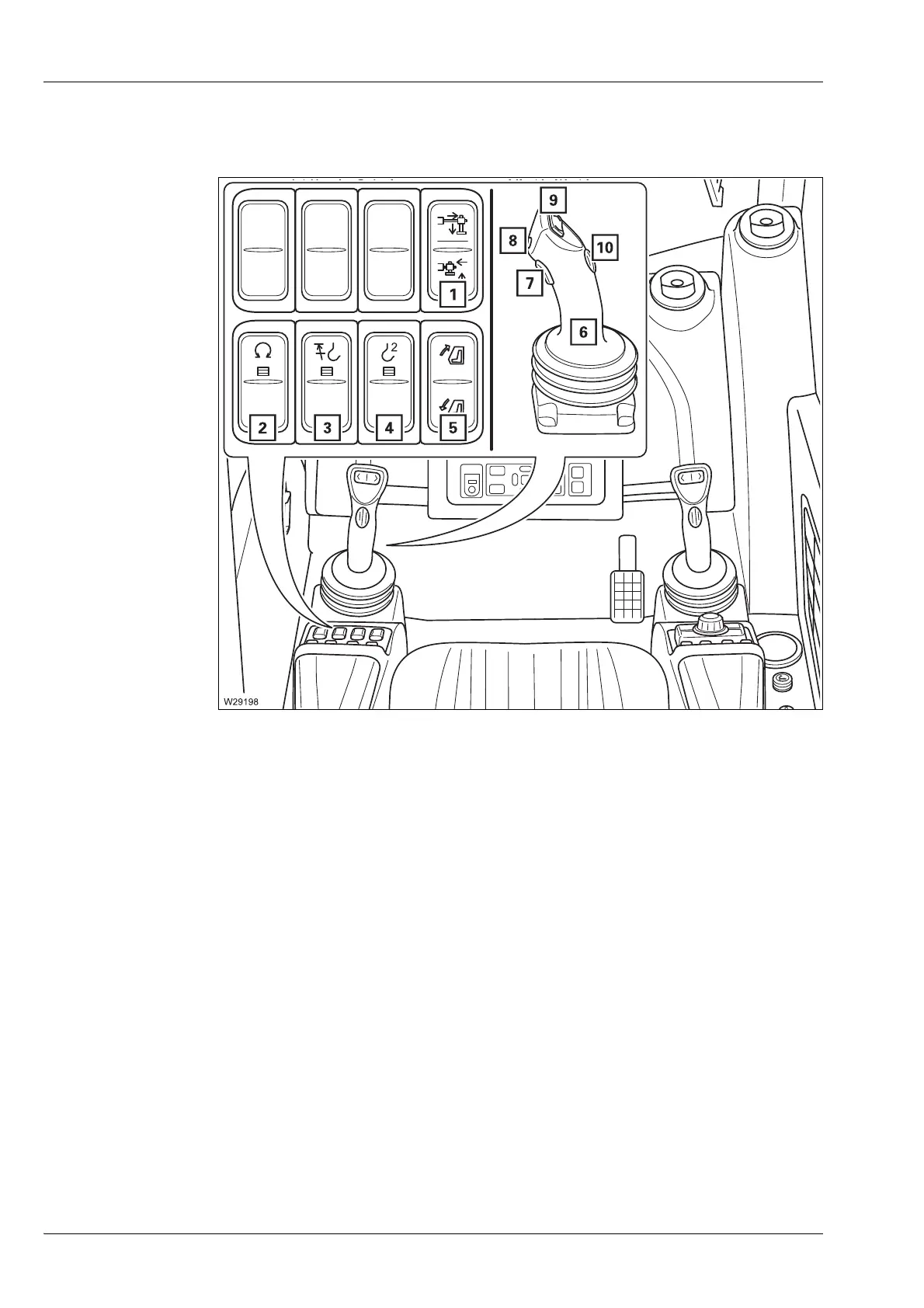

8.1.3 Control panels
Left
1 Moving the outrigger à p. 8 - 97
2 Slewing gear on/off
à p. 8 - 113
3 Lifting limit switch override
à p. 8 - 110
4 Auxiliary hoist
1)
on/off à p. 10 - 79
5 Inclining the crane cab
à p. 8 - 123
6 Left-hand control lever (configuration varies depend-
ing on the version)
à p. 8 - 14
7 Dead man's switch
à p. 8 - 88
8 Slewing gear freewheel
à p. 8 - 113
9 Depending on which function is activated, button for:
– Derricking gear high-speed mode
– Telescoping mechanism on/off
– Switch on Economy Mode
à p. 8 - 116
à p. 10 - 124
10 Auxiliary hoist slewing indicator
à p. 10 - 76
1)
Additional equipment
