Operating elements for crane operation

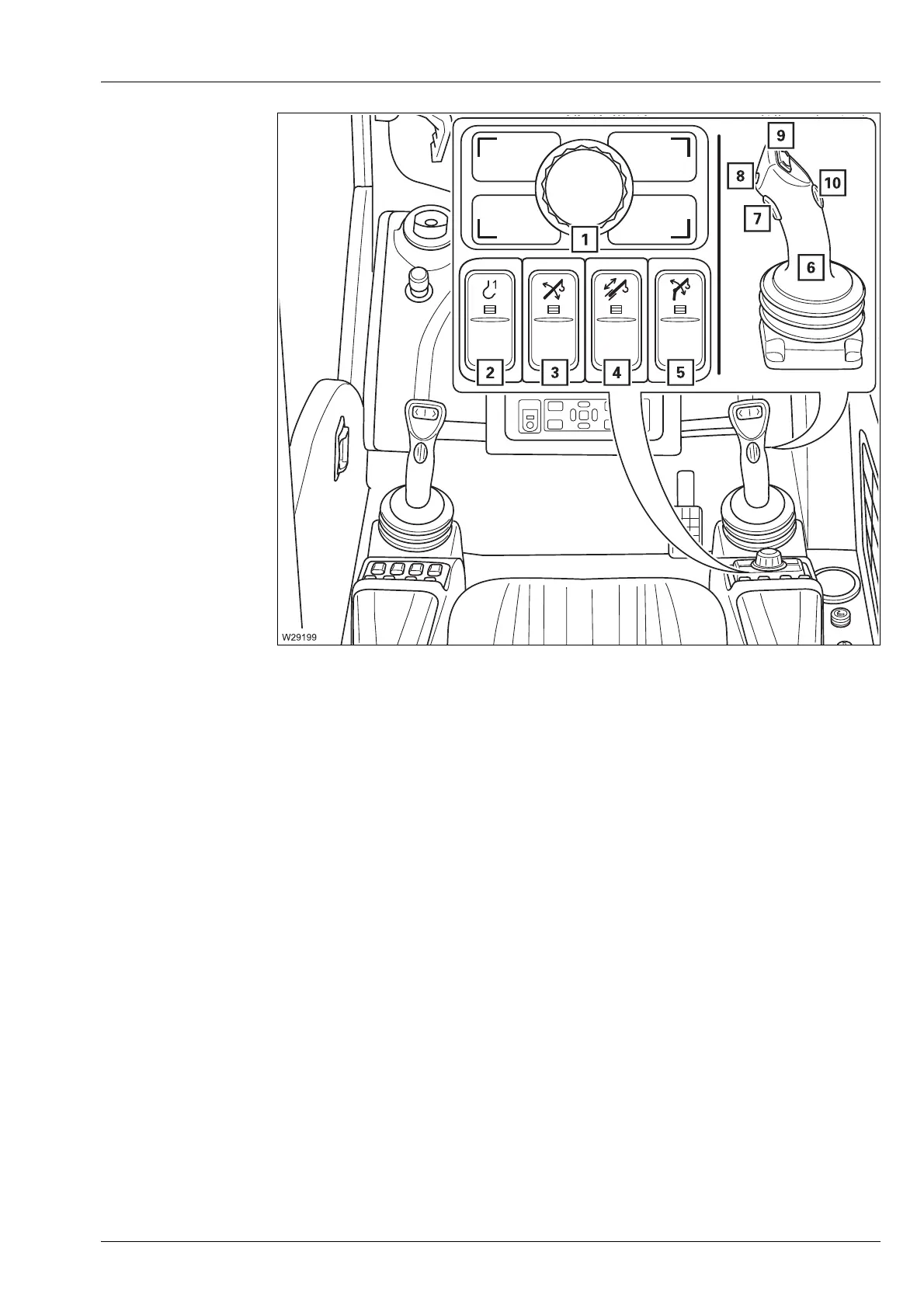

8.1 Overview of the operating elements
Operating Instructions GMK5250L 3 302 633 en 8 - 13
27.09.2017
Right
1 Jog dial (rotary push button)
à p. 8 - 89
2 Main hoist on/off
à p. 8 - 109
3 Derricking gear on/off
à p. 8 - 115
4 Telescoping mechanism on/off
à p. 8 - 117
5 Derrick lattice extension on/off
1), 2)
6 Right-hand control lever (configuration depends on
version)
à p. 8 - 14
7 Dead man's switch
à p. 8 - 88
8 Horn button
9 Hoist high-speed mode on/off
à p. 8 - 109
10 Main hoist slewing indicator
à p. 10 - 76
1)
Additional equipment
2)
à Operating Instructions Lattice Extension
