Operating elements for crane operation
8.2 Brief description of the operating elements
Operating Instructions GMK5250L 3 302 633 en 8 - 83
27.09.2017
8.2 Brief description of the operating elements
H
This section does not contain all the requirements that must be fulfilled for
several operating elements to be active.
If some operating elements do not work, first read the following chapters
referred to at the respective places before contacting
Manitowoc Crane Care.

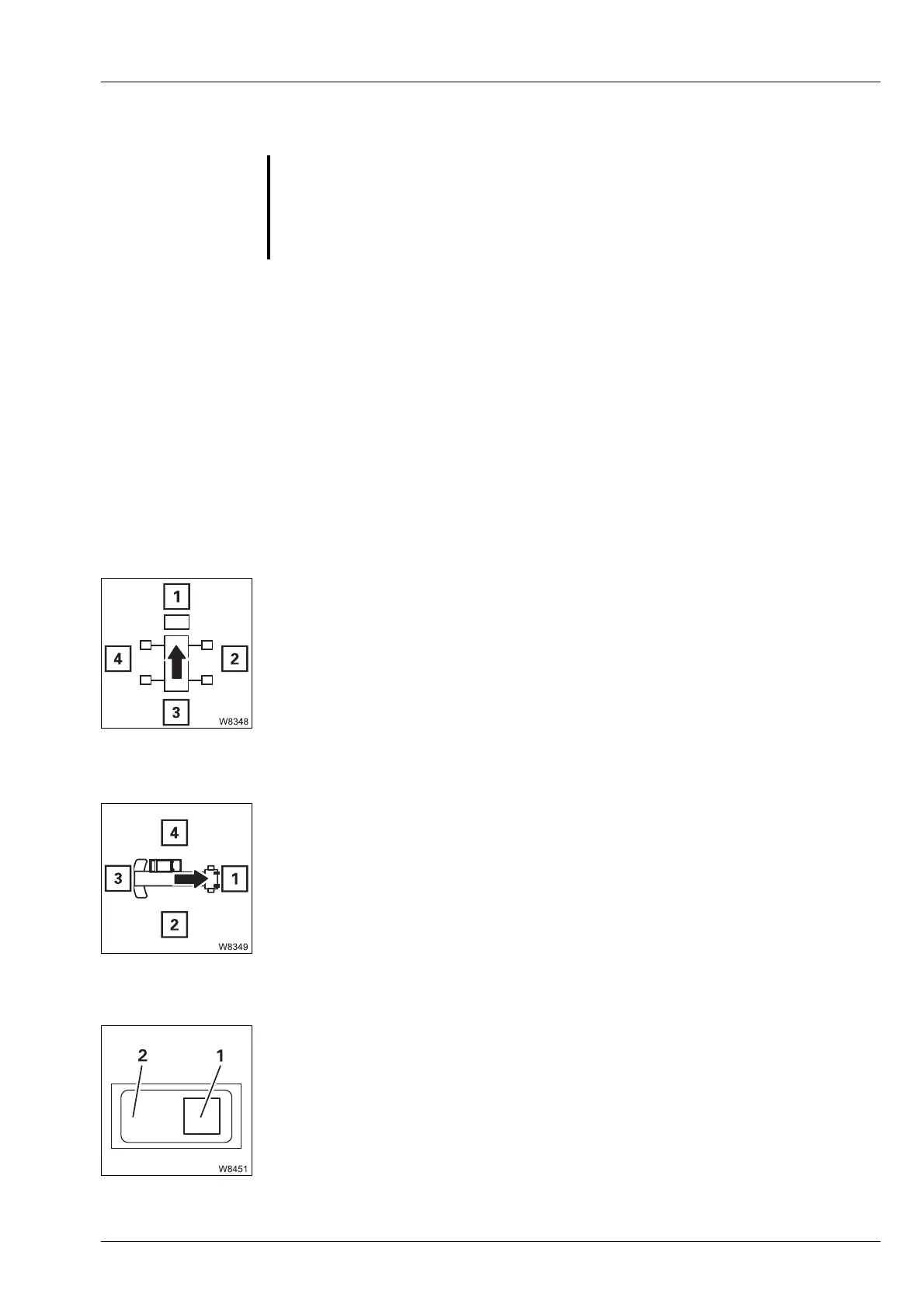

8.2.1 Definition of direction information
Basic rule Direction information always depends on whether the carrier or the super-
structure is being operated.
On the carrier
The driver's cab is always at the front, which means that:
Forwards always means with driver's cab leading,
Backwards always means the rear lights on the carrier are to the front.
On the superstructure
The main boom head is always at the front, which means that:
Switches For switches and buttons, the terms bottom and top are used.
Regardless of the fitting position (vertical, horizontal, diagonal, perpendicu-
lar or turned), the following always applies:
G
Risk of accidents through operating error!
This section is not a complete operating manual. It only provides a general
overview of the functionality of the operating elements.
Before using the operating elements for the first time, read through the
following chapters and the safety instructions listed there.
1: front 2: Right
3: rear 4: Left
1: front 2: Right
3: rear 4: Left
– Down: press in at (1) – next to the symbol
–Up: press in at (2) – opposite the symbol
