Crane operation
10.5 Crane operation with main boom
Operating Instructions GMK5250L 3 302 633 en 10 - 101
27.09.2017
Current telescoping

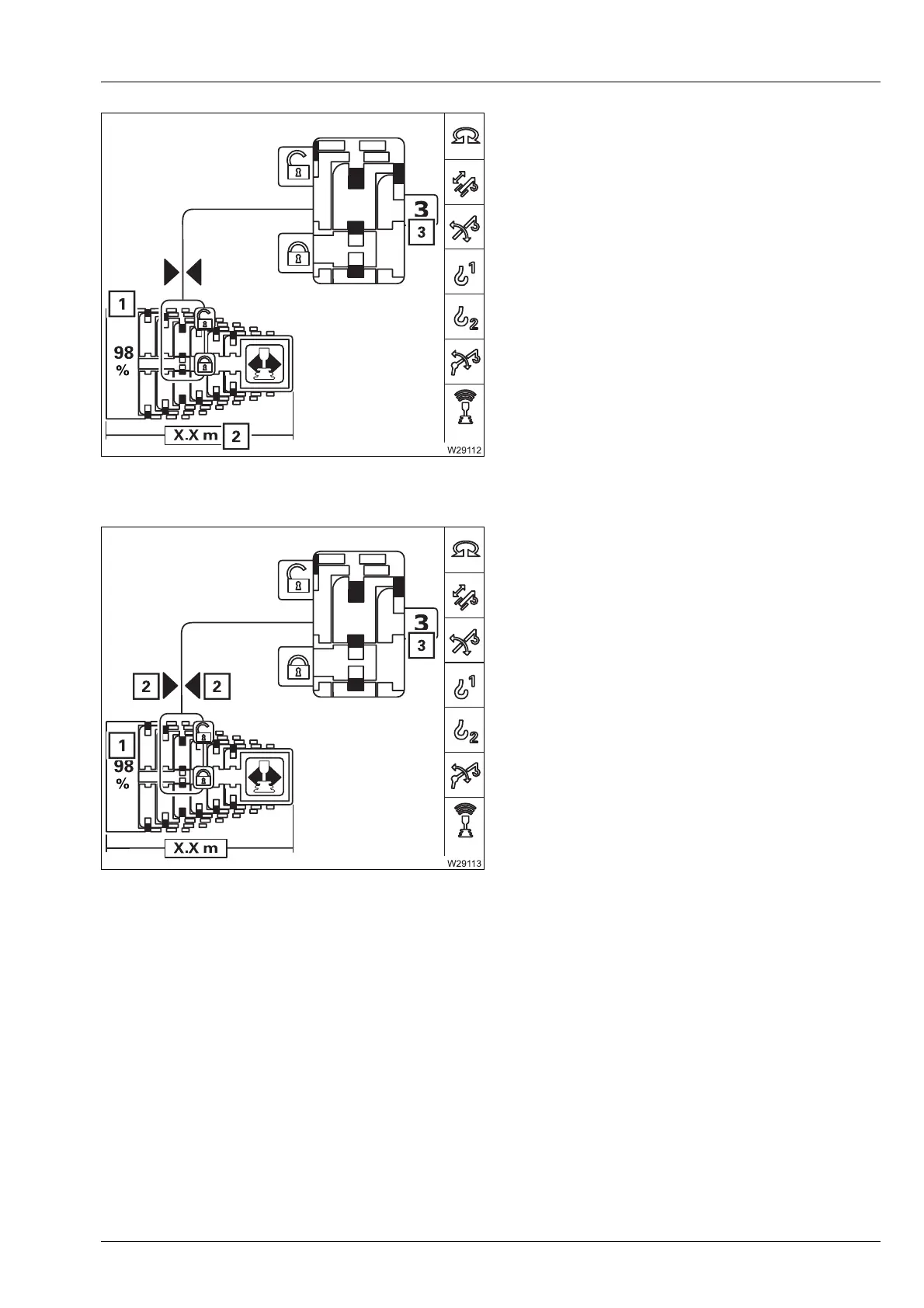

The display (1) shows how far the telescoping
cylinder is extended, e.g. 98%.
The display (2) shows the current main boom
length.
The display (3) shows the corresponding tele-
scopic section, e.g. telescopic section
3.
Position of the telescoping cylinder
The display (1) shows how far the telescoping
cylinder is extended, e.g. 98%.
If the telescoping cylinder is near a locking
point:
– The display (3) shows the corresponding
telescopic section, e.g. telescopic section
3.
– The display (2) shows one or two arrows,
depending on the distance to the locking
point.
