Rigging work
11.8 Outrigger operation
Operating Instructions GMK5250L 3 302 633 en 11 - 59
27.09.2017

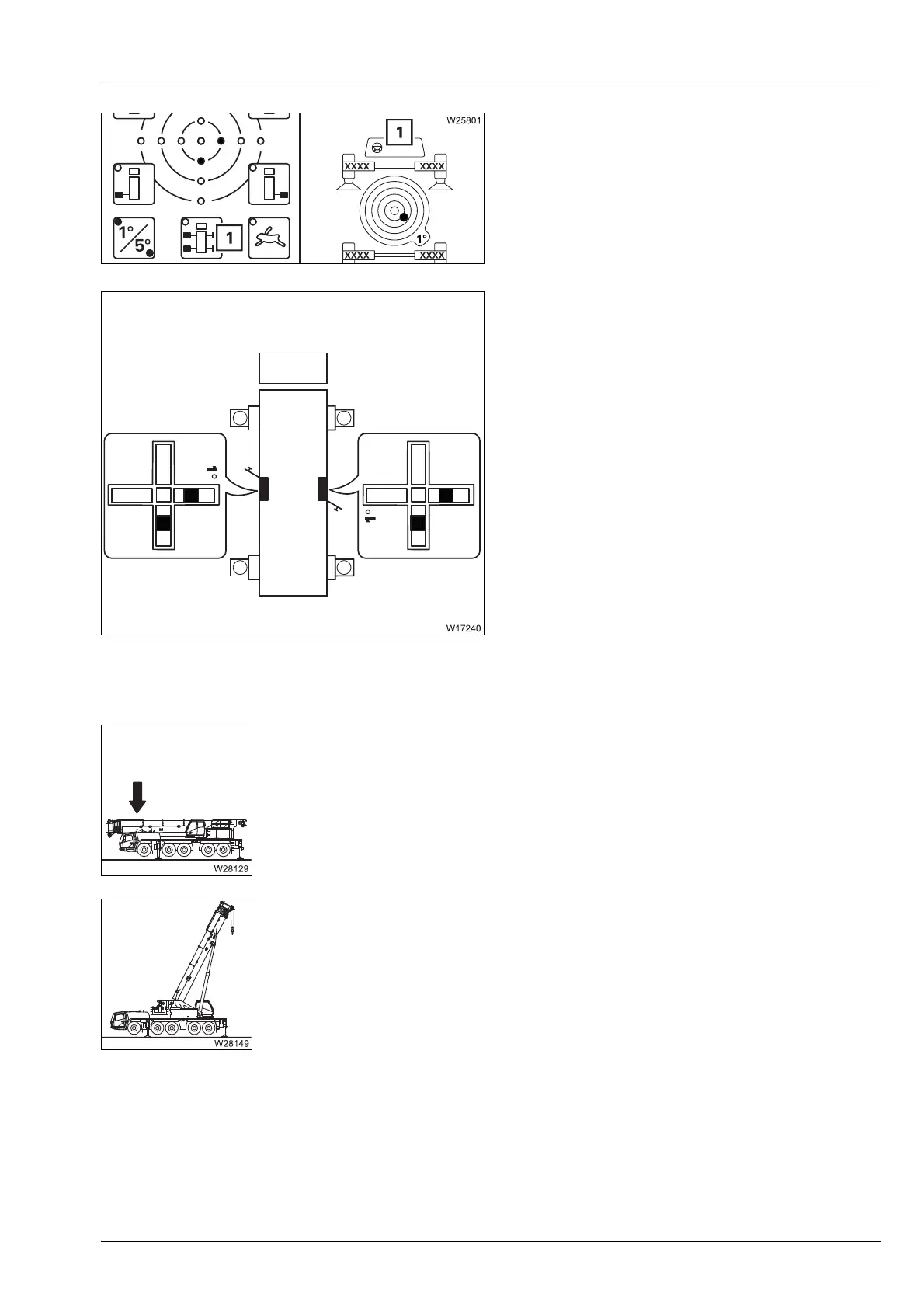

– Manual control/ CCS display
The assignment to the carrier is given by the
directional indicator (1).
In this example, the carrier would be stand-
ing higher to the rear on the right hand side.
–
Outriggers control units
The assignment to the carrier corresponds
to the top view.
Due to the position of the control units, the
displays on both sides differ.
In this example, the carrier would be stand-
ing higher to the rear on the right hand side.
Prerequisites The following prerequisites apply to manual and automatic alignment.
The main boom must be resting on the boom rest.
or
– The main boom must be raised and
– The load must have been set down and
– The superstructure must be in the 0° or 180° position.
s
