Rigging work
11.8 Outrigger operation
11 - 46 3 302 633 en Operating Instructions GMK5250L
27.09.2017
From the
control units
If the hand-held control is connected, the Outrigger operating units are
inactive.
Start the engine
• Remove the hand-held control if necessary, and start the engine from the
driver's cab;
à p. 4 - 14.
You can also start the engine from the control units;
à p. 11 - 25.
Switching on the lighting
Only the lamp (1) lights up after opening the
door.
• Press any button.
The lights are switched on.

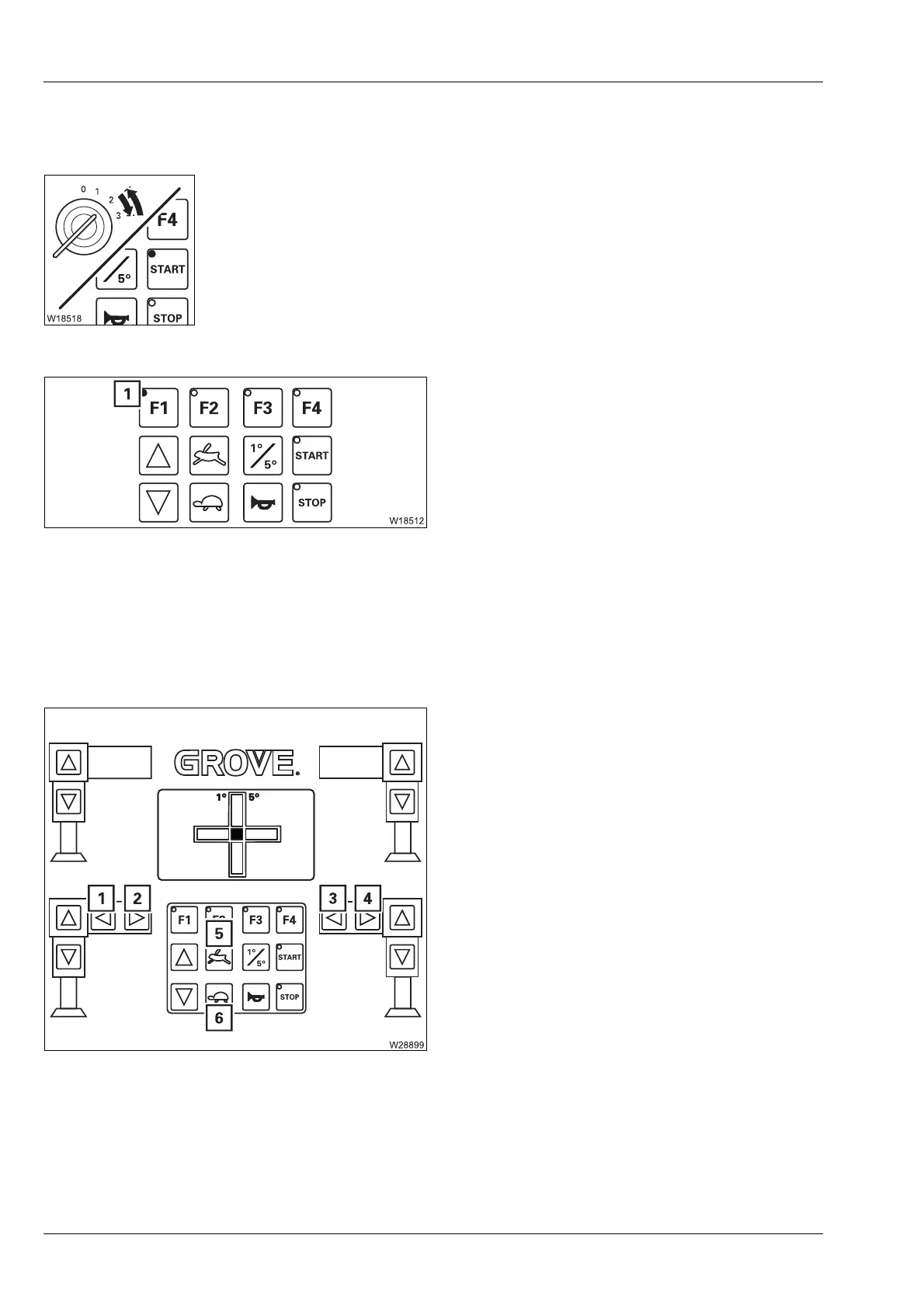

Moving the outrigger beams
H
You can only operate the outrigger beams to the left and right of the control
unit on the operator's side.
• Observe the safety instructions for operating the outrigger beams;
à p. 11 - 45.
• Press the button
• Additionally press the button for the desired
outrigger beam.
The outrigger beams move until you let go of the respective button or until
the respective end position has been reached.
5 For high-speed mode
6 For normal speed.
1 Extend left
2 Retract left
3 Retract right
4 Extend right
1 + 4 Extend both
2 + 3 Retract both
